Active Subwoofer Cabinet

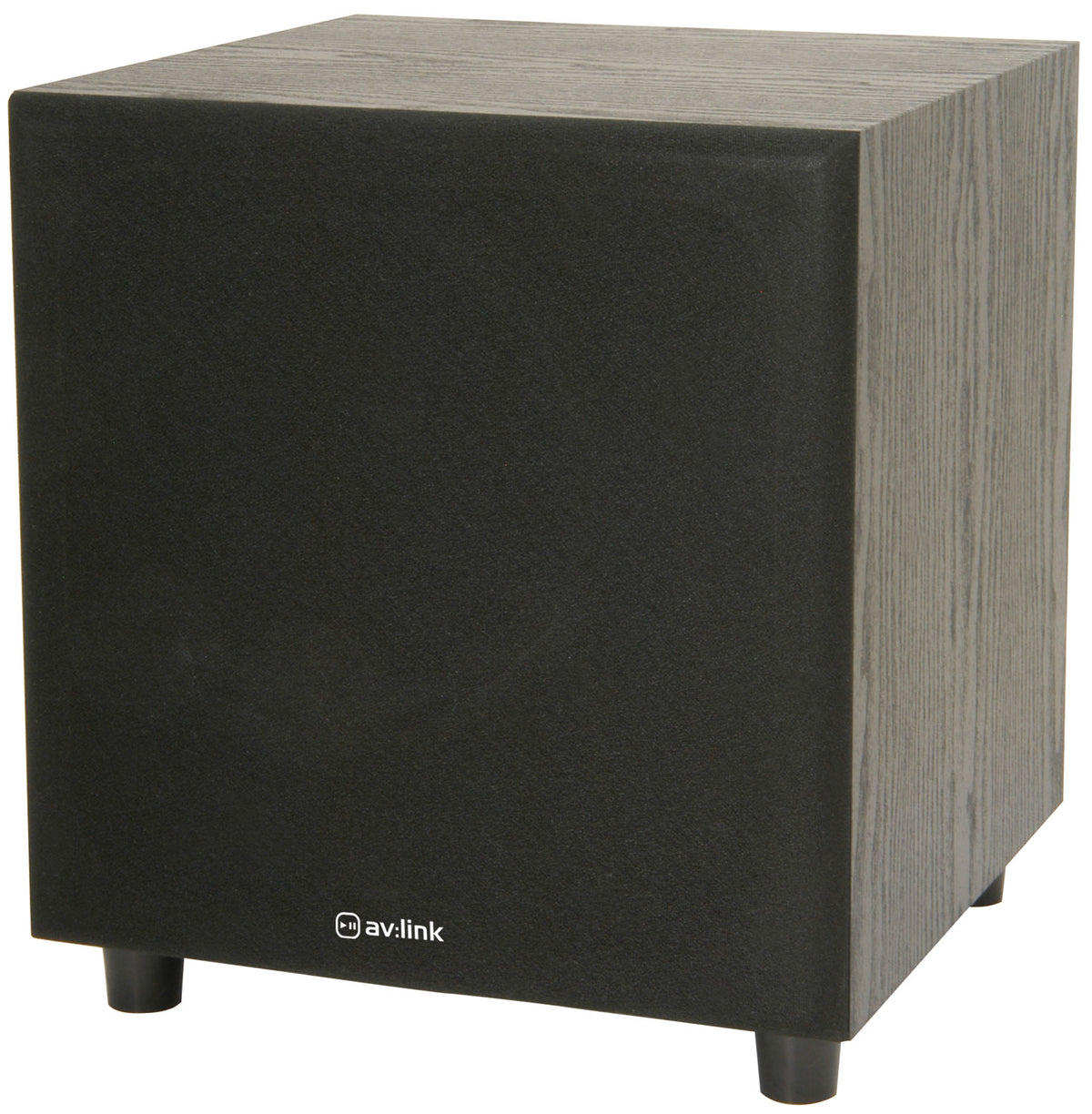

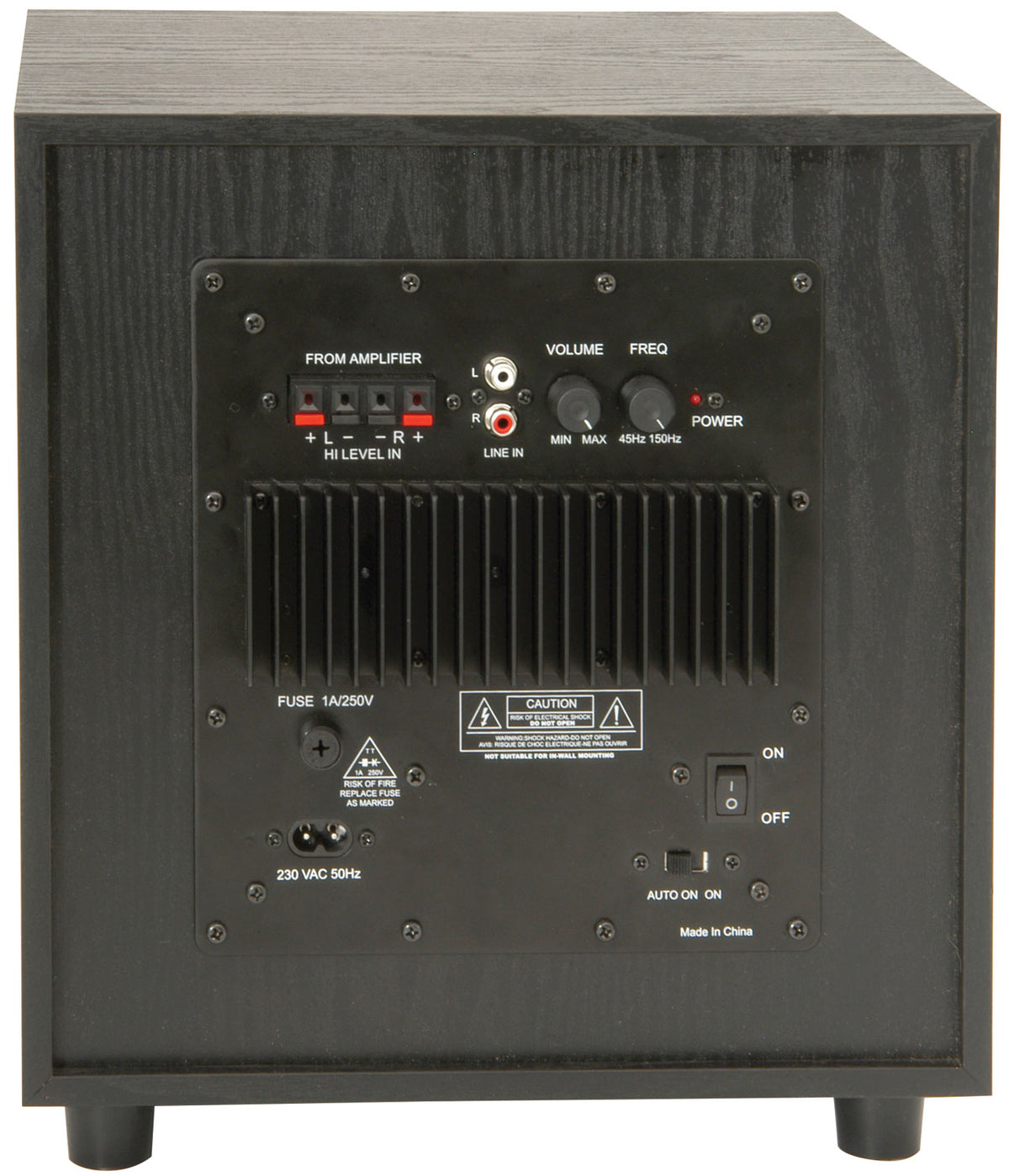

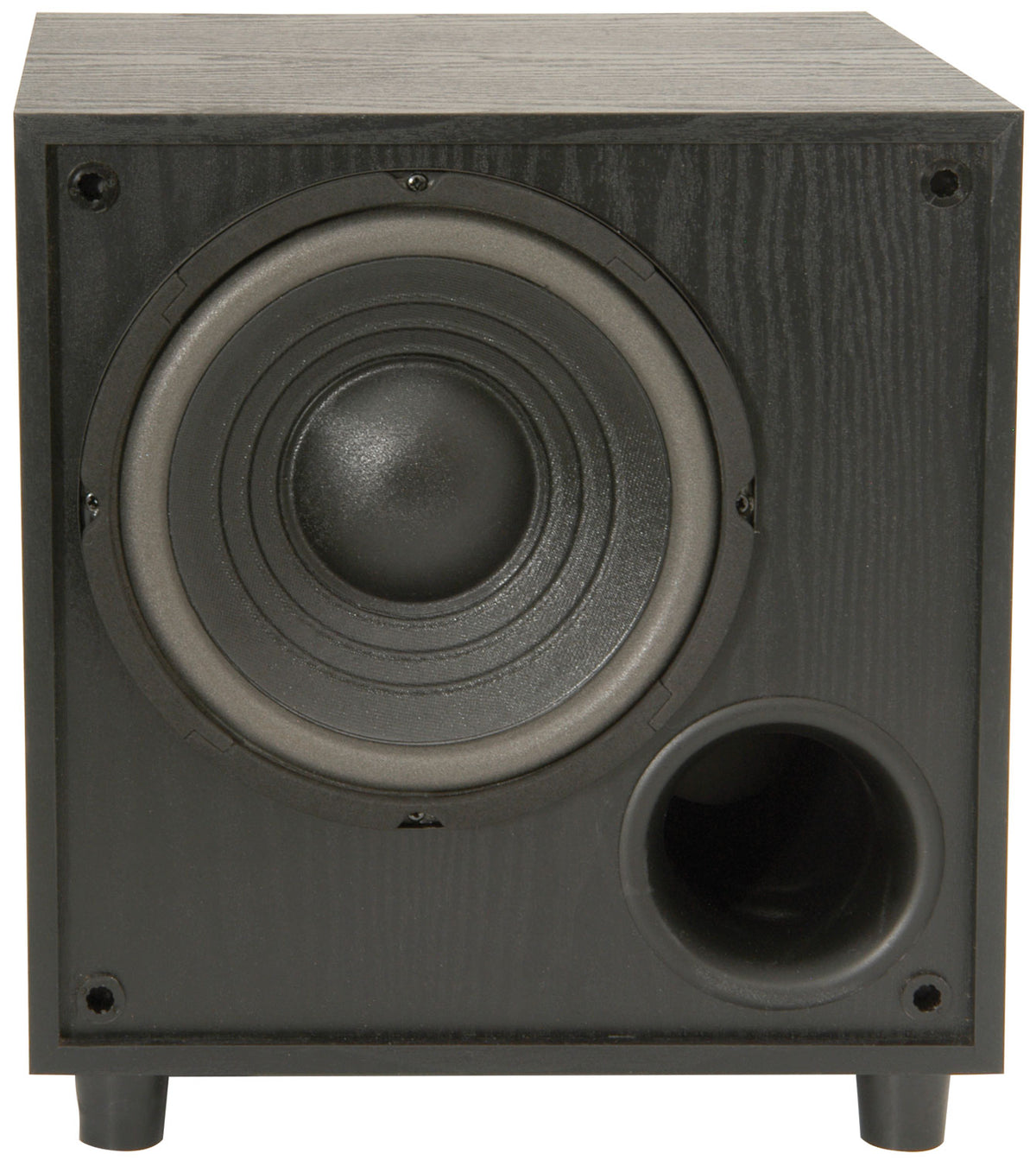

Active sub cabinet with 8" (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. "Auto Off" function deactivates the amplifier when no incoming signal is detected to conserve energy.

Features

Integral amplifier with variable crossover
Auto off function conserves energy
Speaker level or line level inputs

Specifications

Power supply — 220-250Vac, 50/60Hz (Fig 8)
Connections — Speaker level input terminals, RCA line level in
Frequency response — 50-250Hz
Output power peak — 200W
Output power RMS — 100W
Driver — 200mmØ (8") reinforced cone
Dimensions — 300 x 330 x 300mm
Weight — 7.44kg
Cut-off frequency — 45-150Hz
Impedance — 4 ohms
