MG-300 mkII Multi-effect Pedal

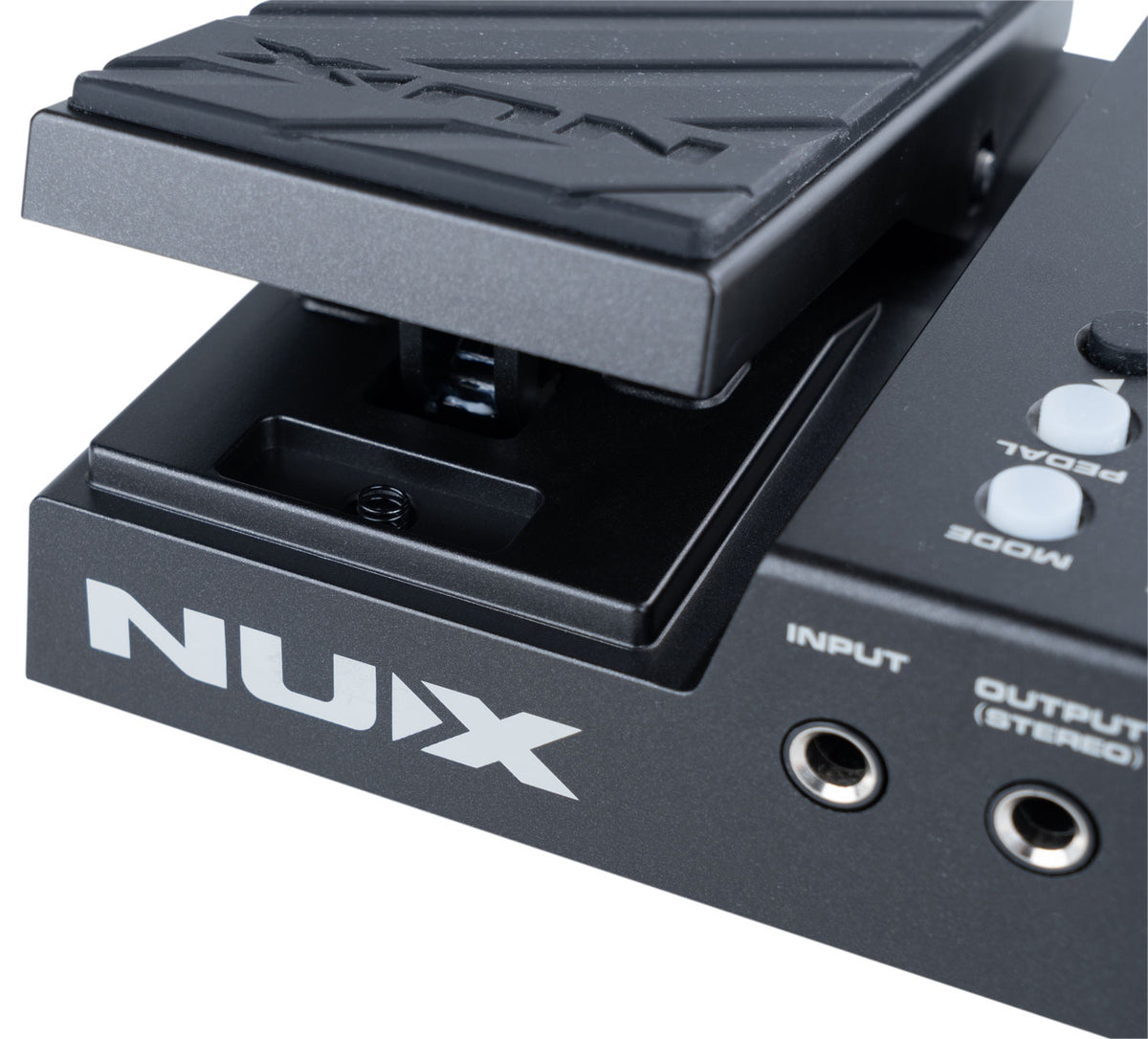

MG-300 mkII builds on the huge success of the original MG-300 compact multi-effects pedal, with a larger display and upgraded sections for Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs. Audio modelling uses the new TSAC-HD algorithm, bringing pro-level amp emulations to this minimalist format. An expression pedal now has a physical toe switch and is self-calibrating, whilst the order of processing blocks are also now switchable, expanding the effects possibilities even further. All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations, with a new feature of 3 Pro Scenes within each preset. For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper. To integrate with a DAW studio suite, the USB-C connection also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output has options for guitar amplifiers, D.I. to mixer or headphones or with loopback for interactive online streaming. Keeping all the elements that made MG-300 so popular, the mkII includes new features and high-end processing that are now accessible in a compact all-in-one unit.

• TSAC-HD accurate amp modelling
• Switchable order for effect blocks
• Fully-featured drum machine and looper
• I.R. cabinet simulation (importable)
• USB-C audio recording interface

Specifications

• Power supply: 9Vdc, 260mA pin-negative (adaptor included)
• Sampling Frequency: 48kHz
• A/D Converter: 32-bit
• Frequency response: 20Hz - 20kHz (±1dB)
• Dynamic range: 106dB
• Input level: +8dBu
• Output level: +8dBu

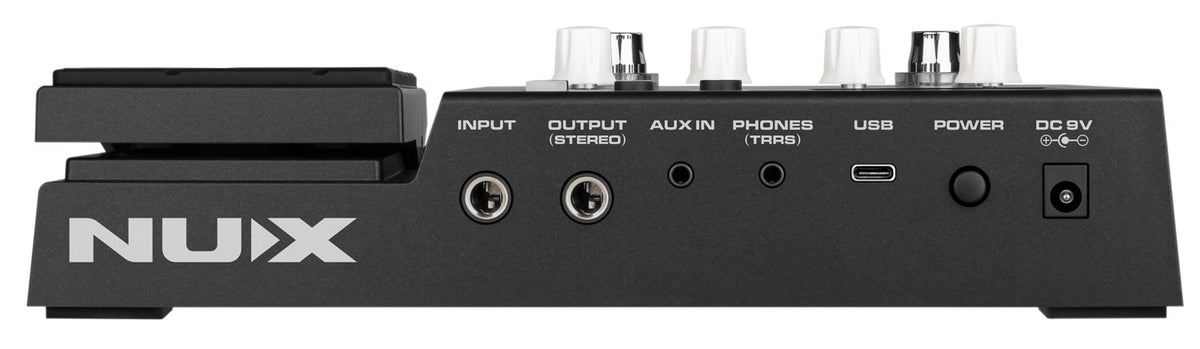

• Outputs: 6.3mm jack to mixer/amp or 3.5mm TRRS phones
• Inputs: 6.3mm jack (guitar), 3.5mm stereo (Aux)
• Dimensions: 241 x 160 x 49mm
• Weight: 760g
