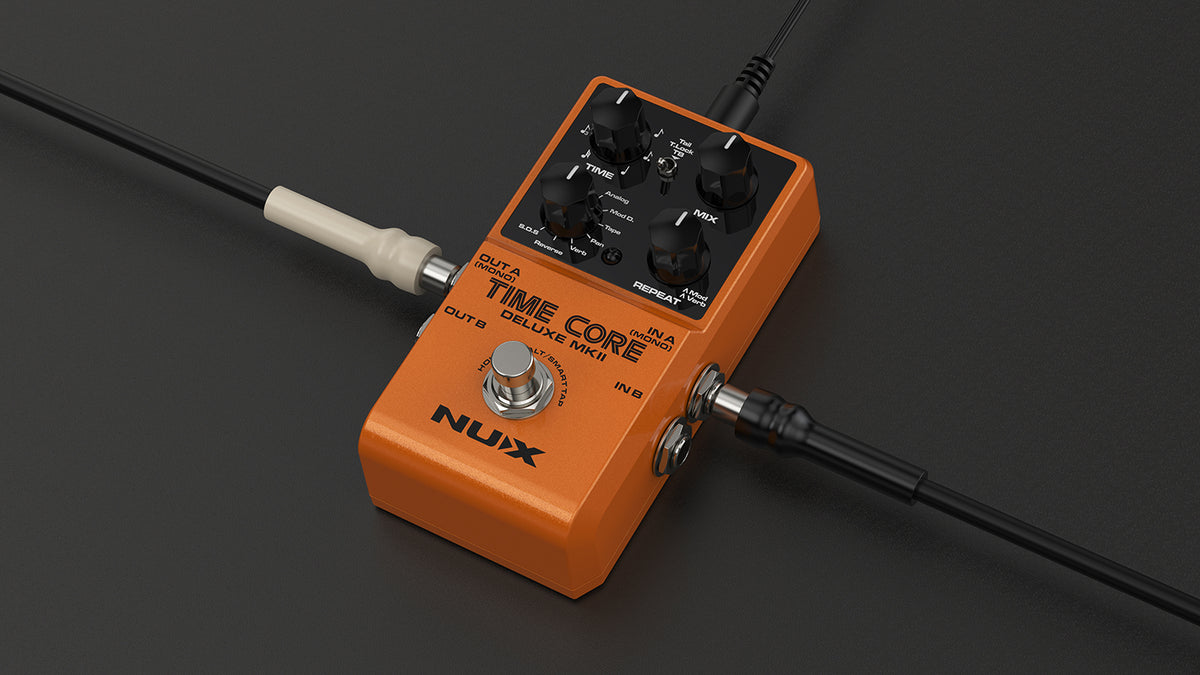

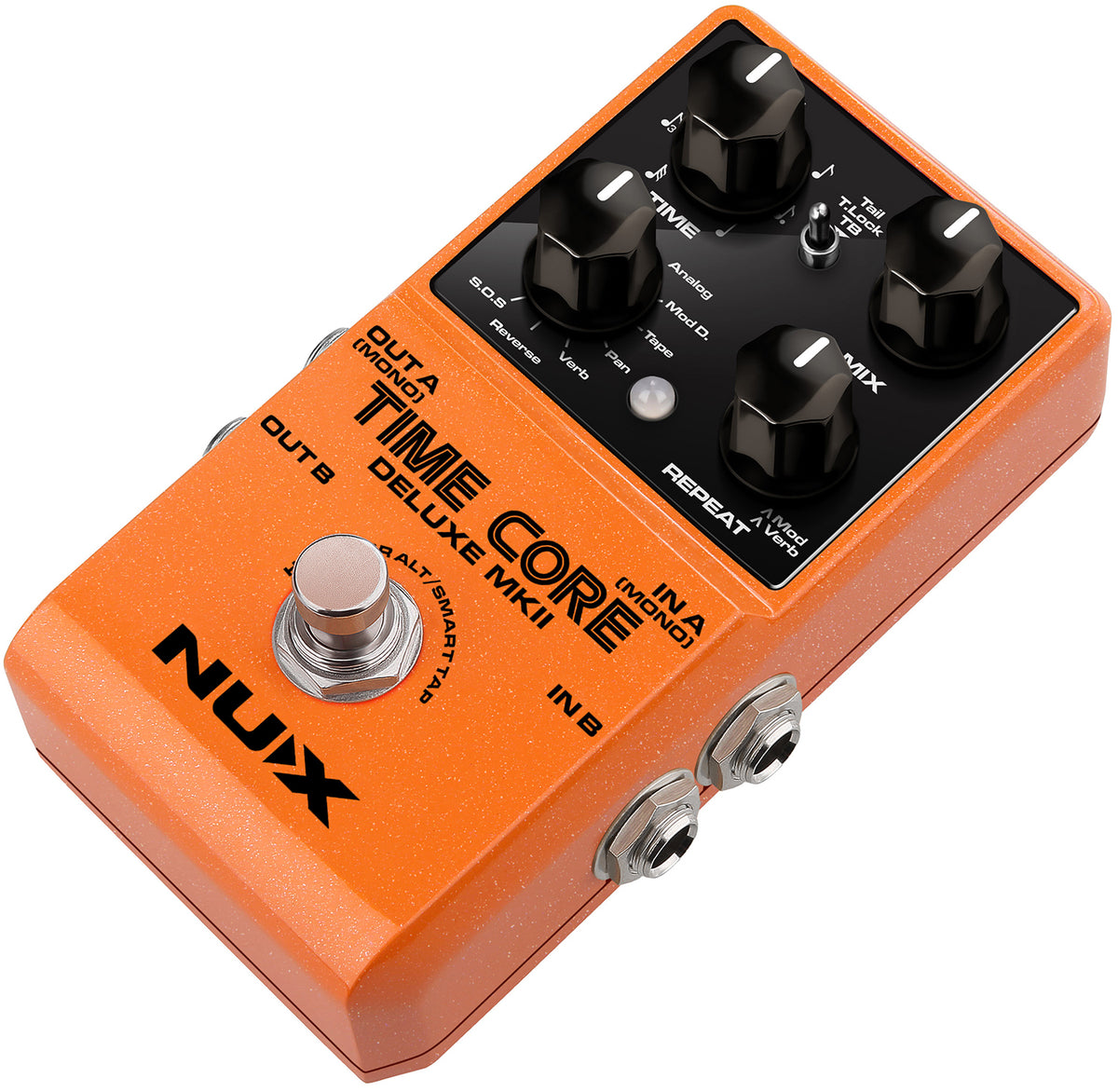

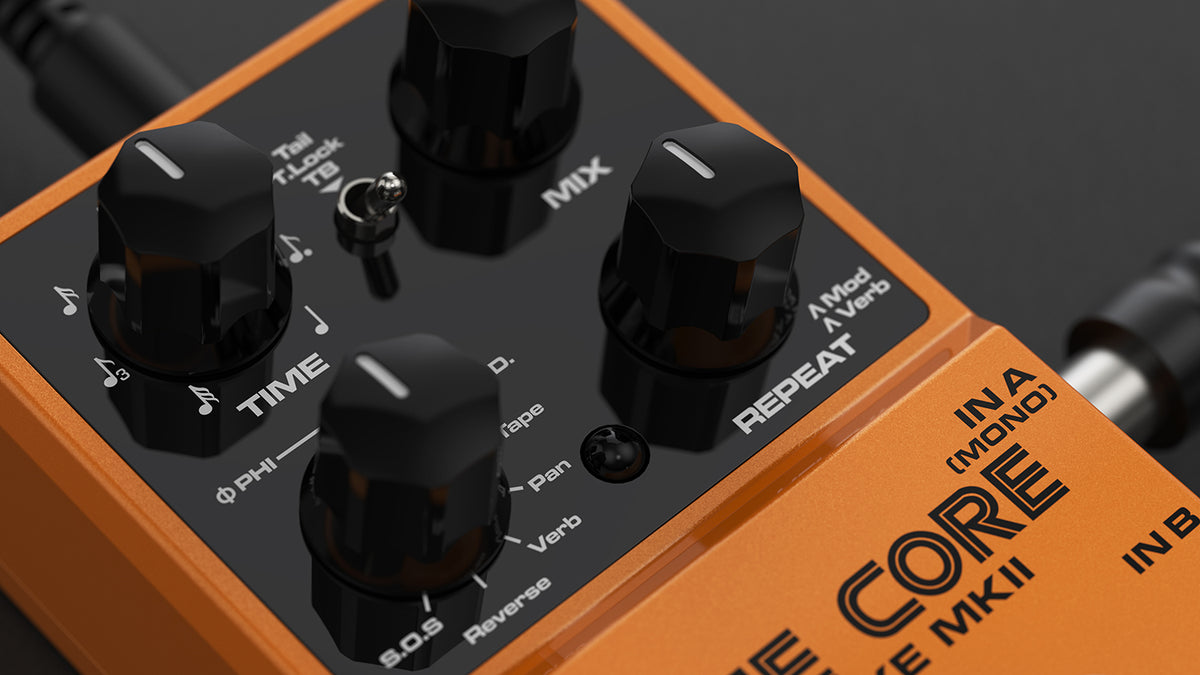

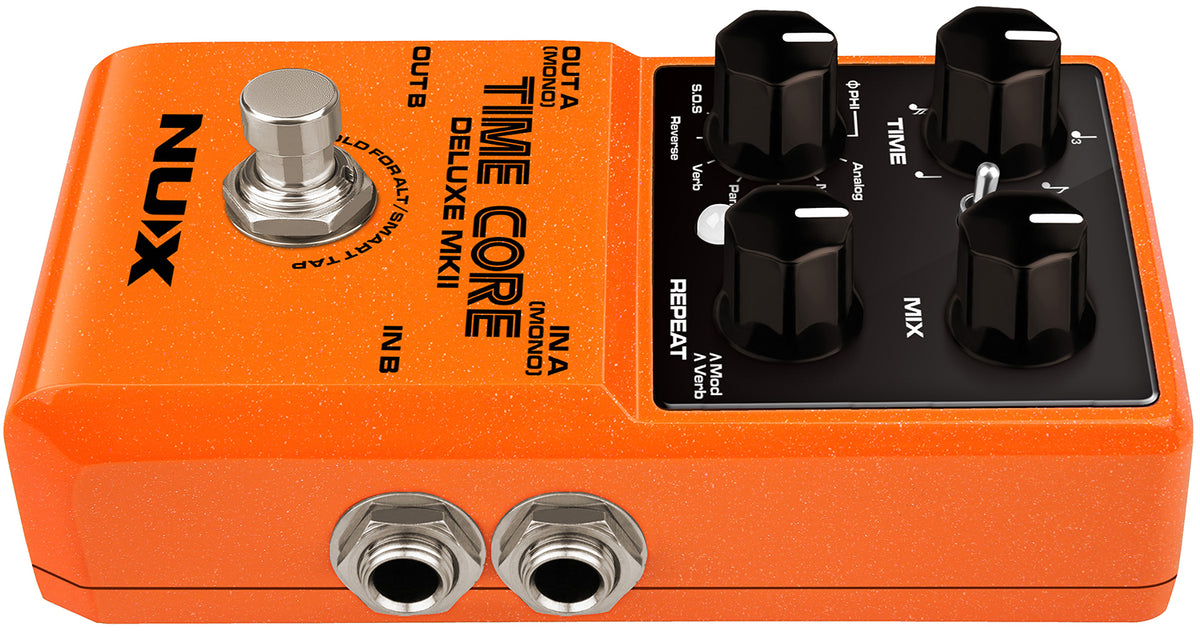

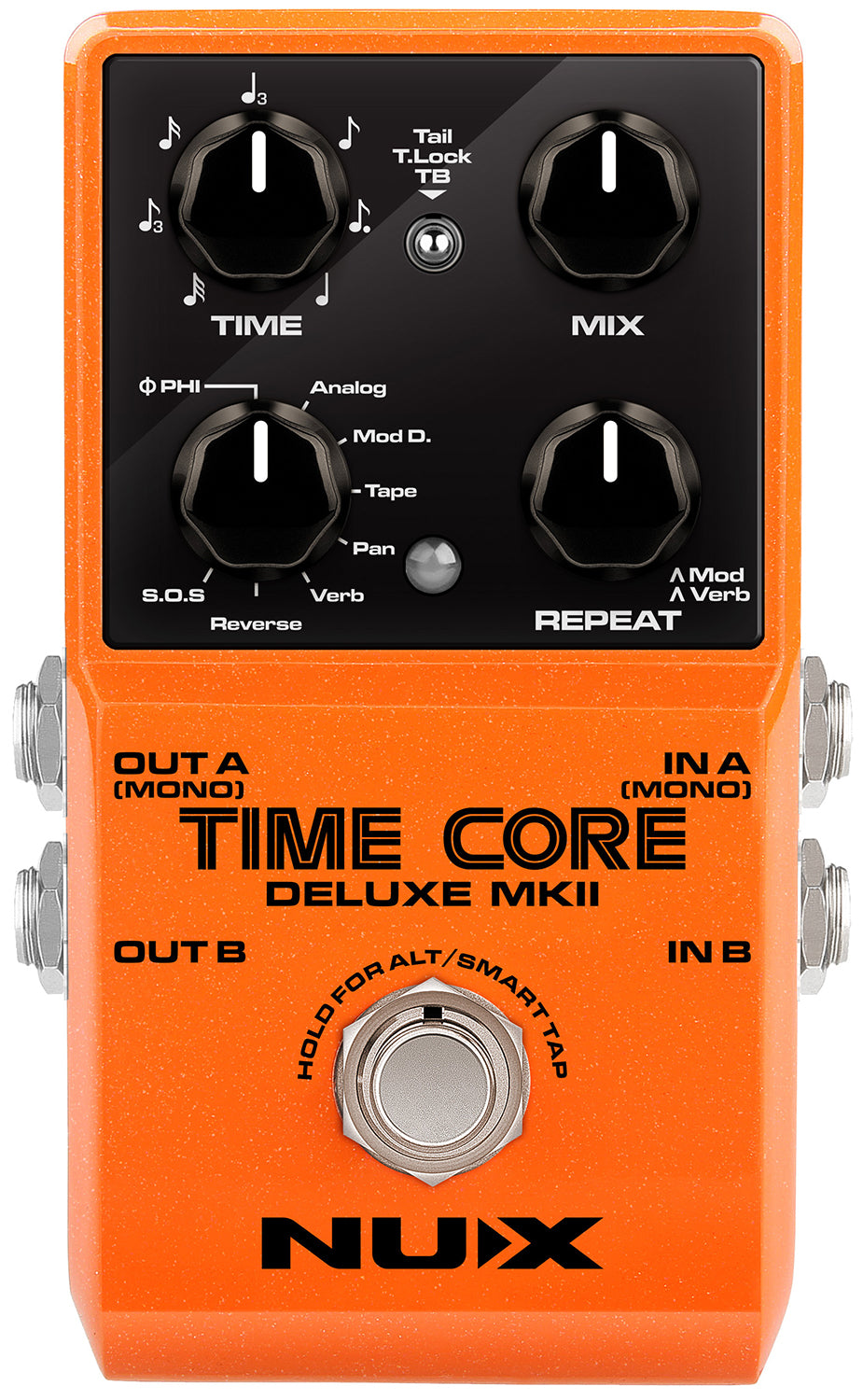

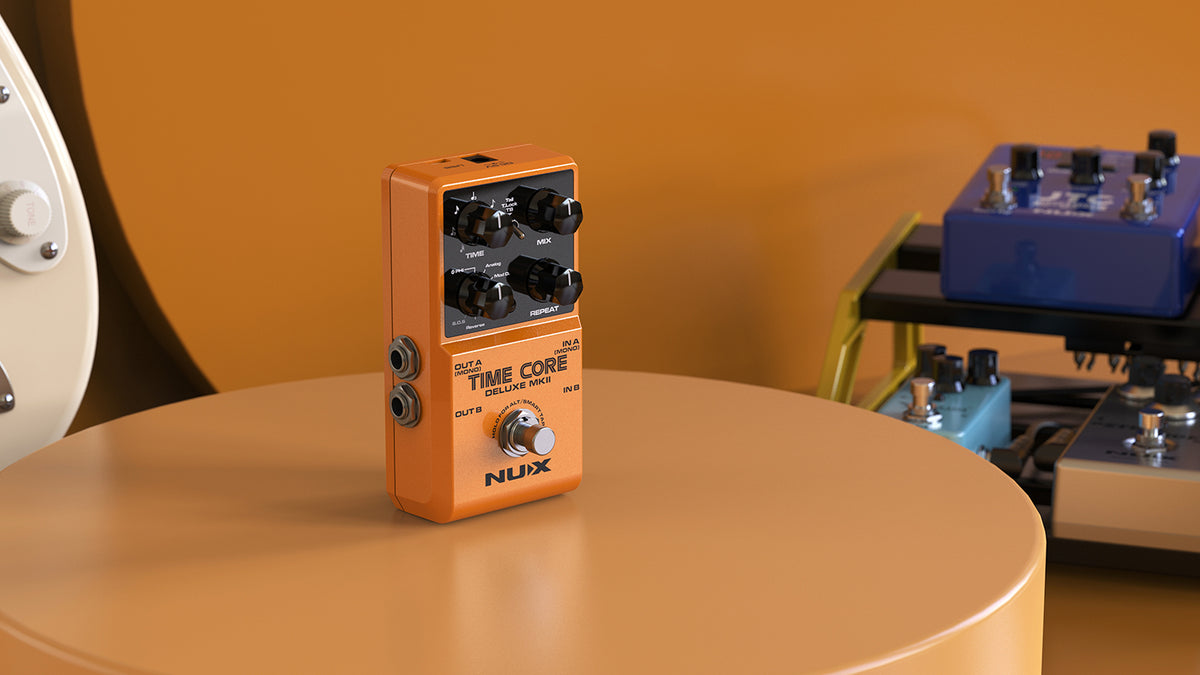

Time Core Deluxe mkII Pedal

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.

• Full stereo or mono signal path
• True or buffered bypass options
• 7 distinct delay types
• 40 second looper function
• USB-C port for firmware updates
• Requires suitable 9Vdc power adaptor (e.g. 173.290UK)

Specifications

• Power supply: 9Vdc power adaptor required
• Controls: Time, Mix, Repeat, Delay type
• Recording mode: 40 second sound-on-sound looper
• Modes: Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay
• Inputs: L+R 6.3mm mono jack
• Outputs: L+R 6.3mm mono jack
• DC input connection: DC5521 jack (for optional adaptor - pin-negative)
• Dimensions: 122 x 72 x 47mm
• Weight: 270g
• Sampling format: 48kHz, 24-bit
• Input impedance: 1M ohm
• Output impedance: 1k ohm
• Dynamic range: 104dB
• Current consumption: <120mA
