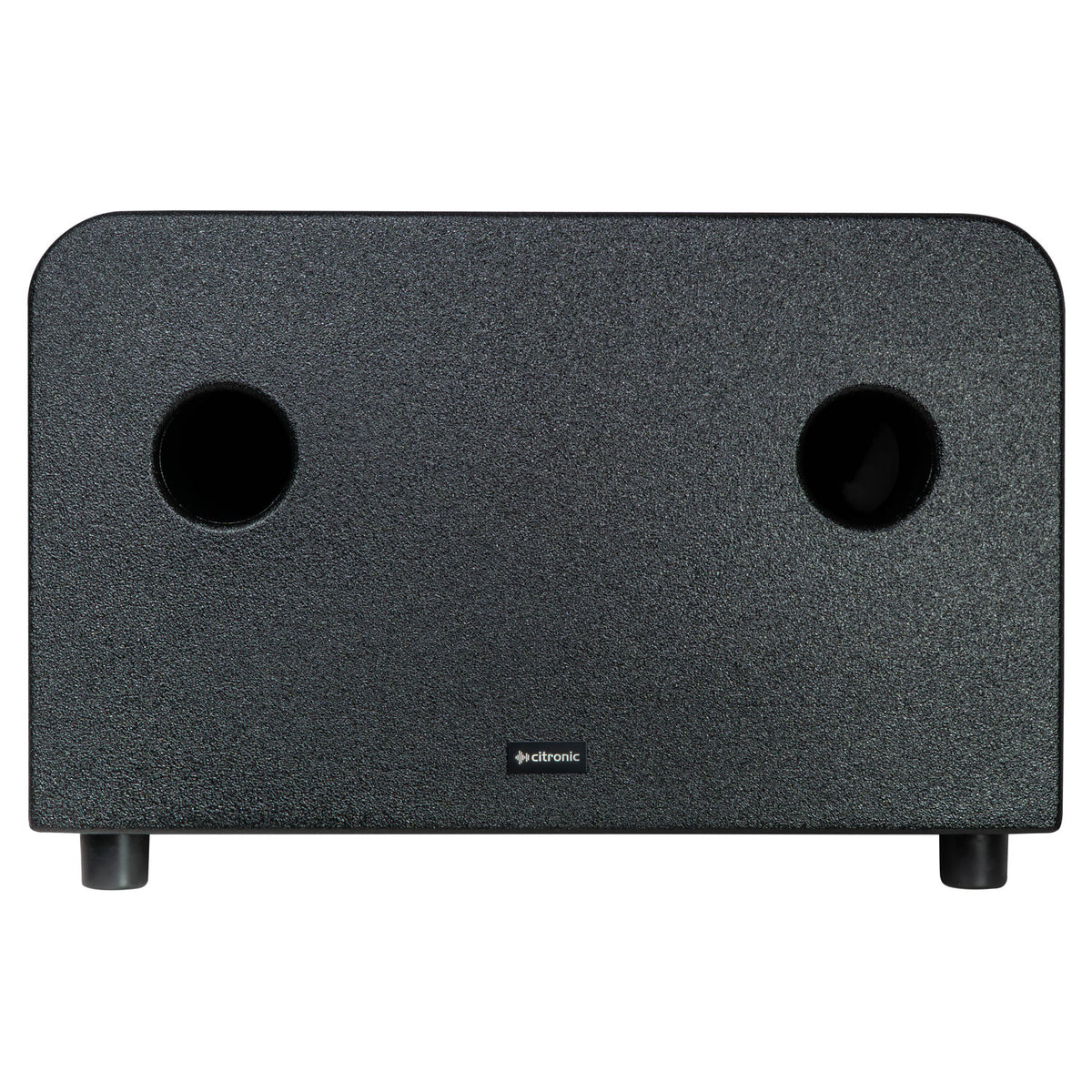

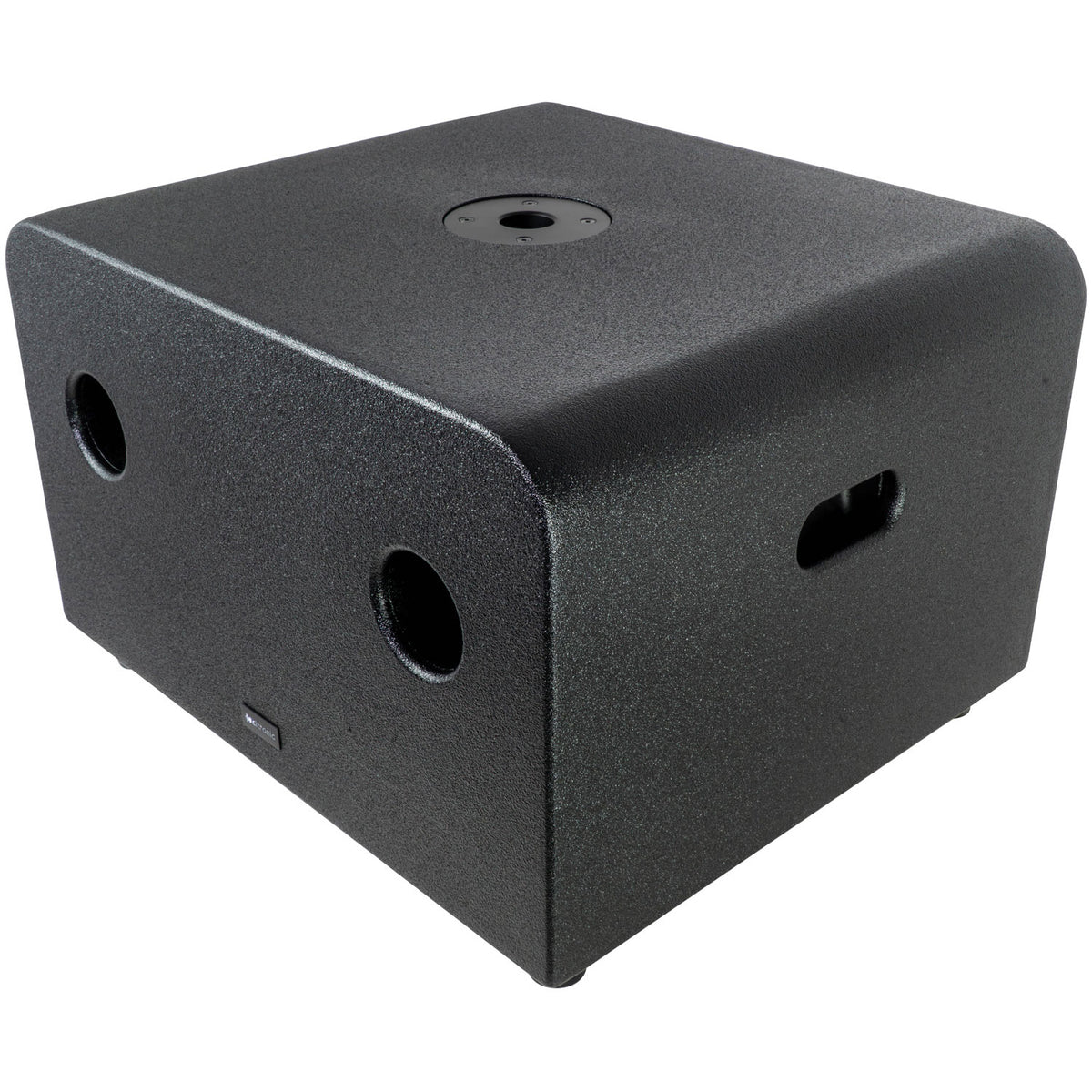

LOSUB Low Profile Passive Subwoofer

LOSUB is a subwoofer design that offers high power handling from a cabinet that has compact dimensions. Employing a downward angled baffle, the LOSUB creates a pressure zone at ground level and ports this forward, meaning that the driver doesn't need a large air space behind the driver. The low profile of its cabinet enables it to fit underneath or alongside furnishings and in narrow spaces for installation. Input from an amplifier is via 2 Speakon connectors with a built-in passive filter to remove unwanted mid and high frequencies. Whether is it for space-saving during transit or storage or for building into discreet spaces for installation, the LOSUB passive cabinet can handle the power to deliver a strong sub-frequenciy response from a compact enclosure.

Features

Semi-directional ported design
Compact dimensions

Specifications

Construction — MDF enclosure with polyurea finish
Hardware — Routed handles & 35mm pole mount socket

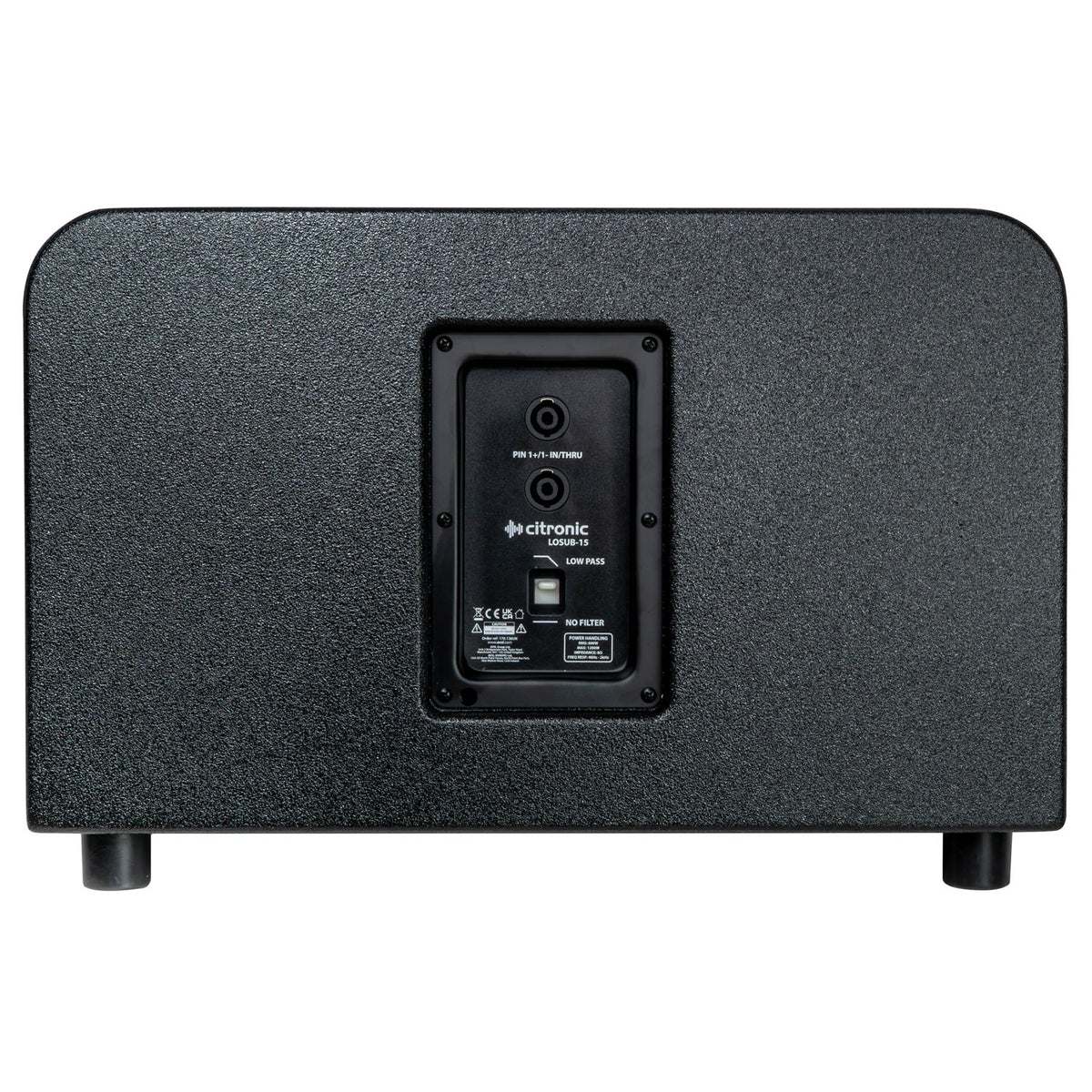

Inputs — 2 x SPK socket
Filter type — 120Hz low pass 12dB/oct
Driver — 380mmØ (15") sub woofer
Voice coil — 75mmØ (3")
Magnet — 2.835kg (100oz)
Power handling max. — 1200W
Power handling RMS — 600W
Frequency response — 40Hz-2kHz
SPL max. — 127dB
Dimensions — 550 x 480 x 360mm
Weight — 24kg
Impedance — 8 ohms
