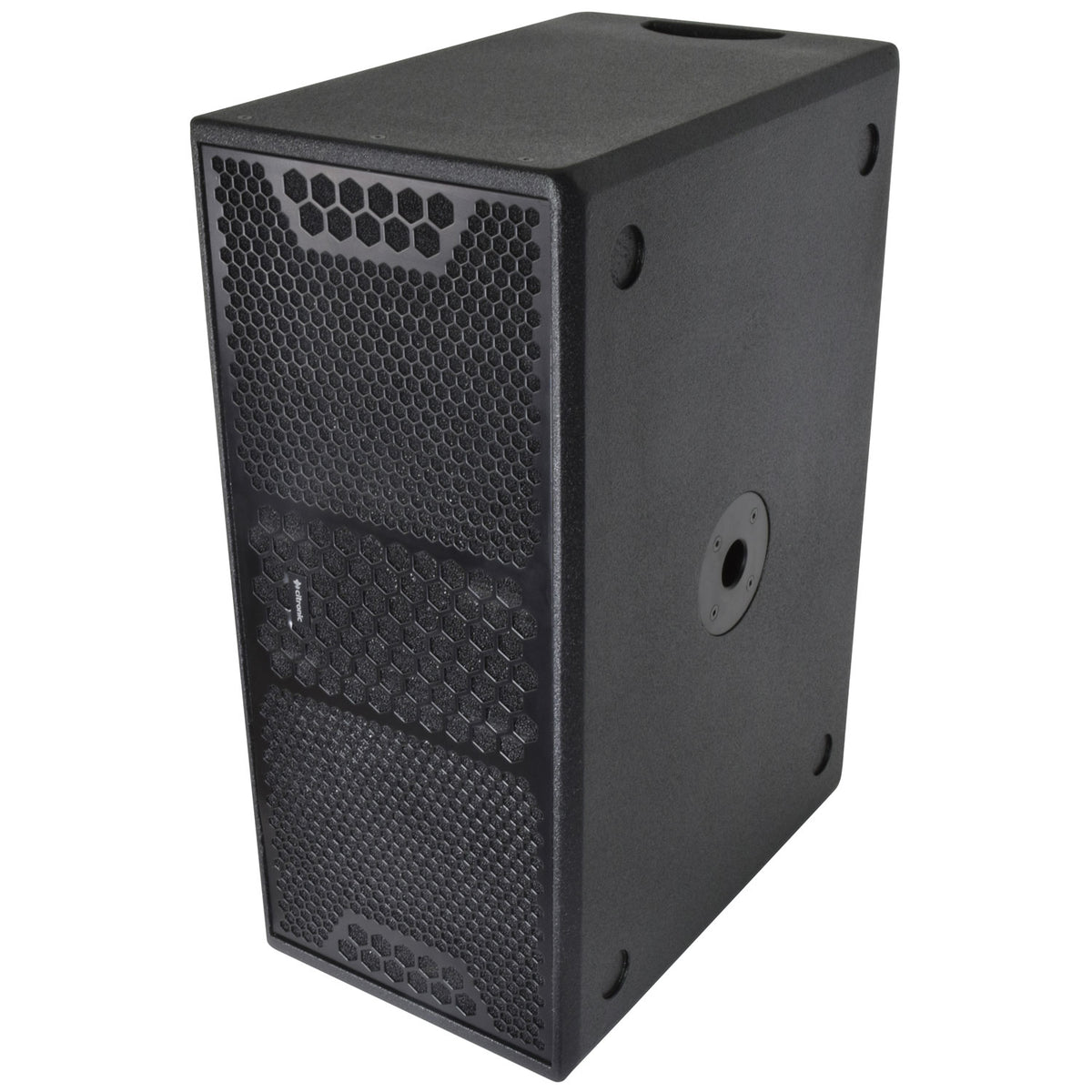

CASA-210B Dual Driver Passive Sub Cabinet 600W

Dual driver subwoofer cabinet for mobile and fixed sound reinforcement applications. Input from an amplifier is via 2 SPK connectors wired in parallel via a low pass filter to remove unwanted high and mid frequencies. Twin 10" woofers can handle a combined amplifier power of up to 600Wrms, delivering a punchy, rounded sound output. This sub unit can be positioned flat to accept a 35mm pole to mount a full-range speaker or upright for a smaller footprint. The form factor of this cabinet also makes it ideal for discreet installation.

Features

Narrow footprint for discreet installation
Efficient front-loaded driver design

Specifications

Construction — 15mm MDF with durable polyurea finish
Hardware — Integral carry handle & 35mm pole mount socket
Inputs — 2 x SPK connectors
Drivers — 2 x 250mmØ (10") woofers
Frequency response — 55Hz-2kHz
Power handling RMS — 600W
Power handling max. — 1200W
Impedance — 4 ohms total (8 Ohms each driver)
Dimensions — 690 x 480 x 305mm
Weight — 30.0kg
Filter type — 120Hz low pass 12dB/oct
