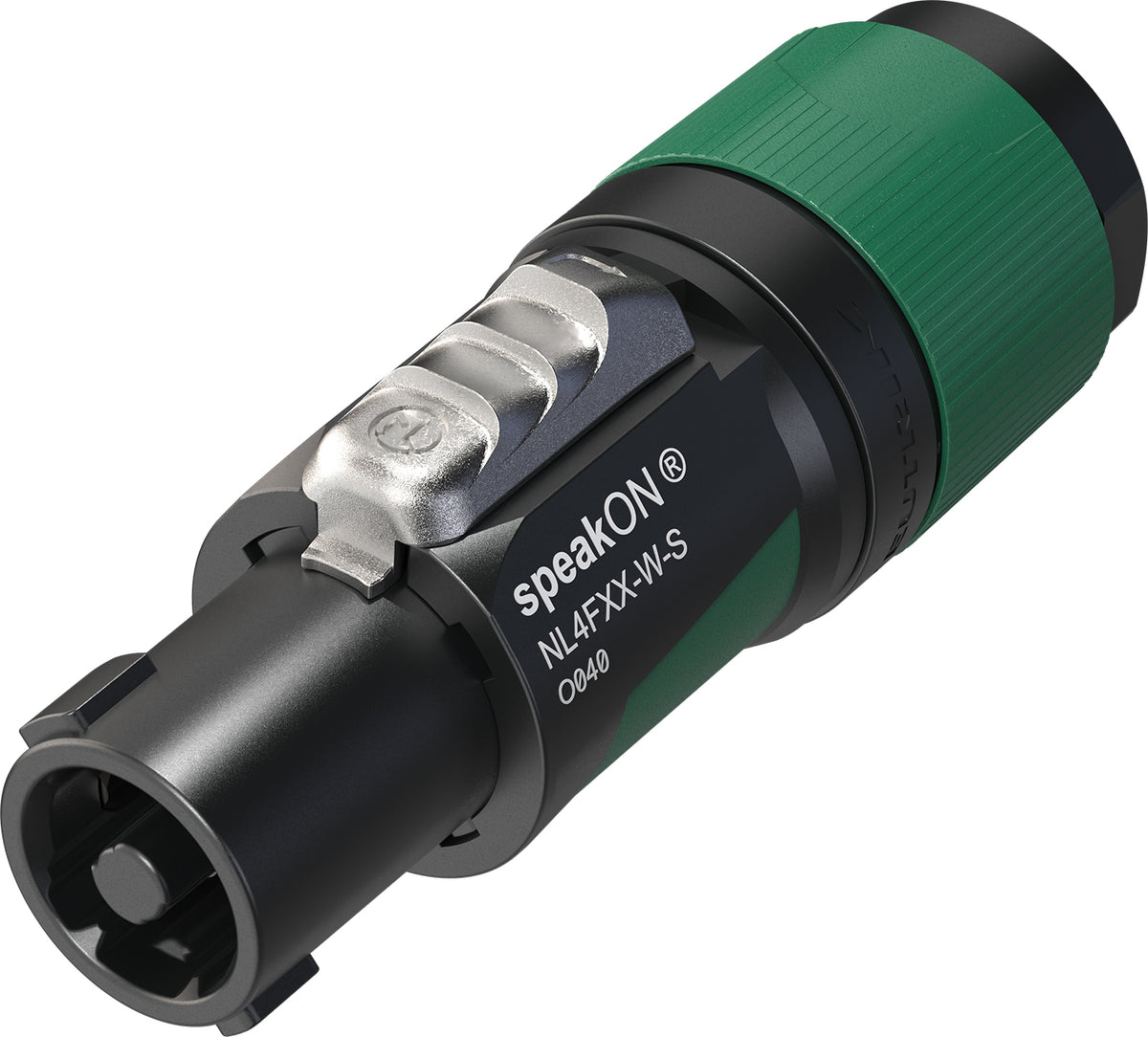

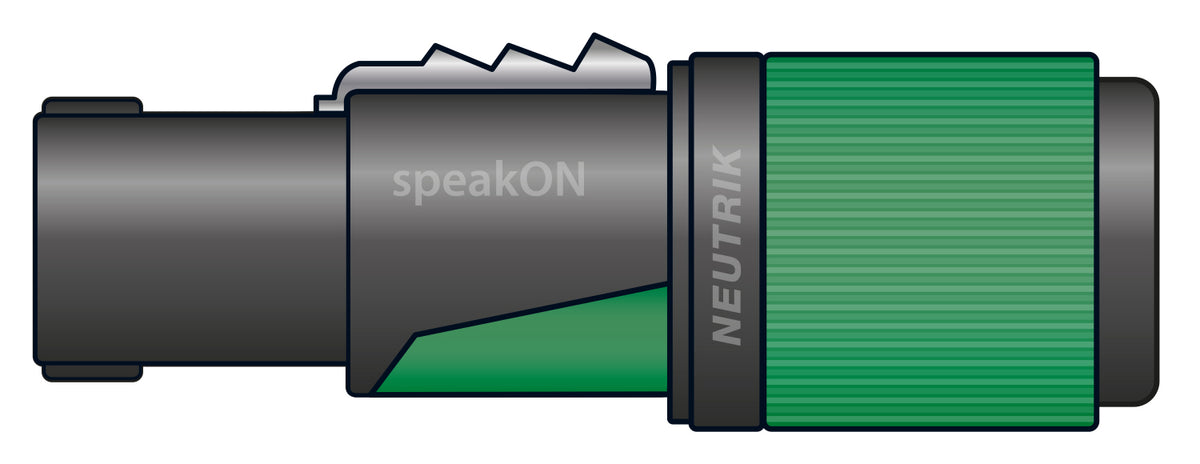

NL4FXX-W-S Speakon 4 Pole Plug

4 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm

Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. Speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

• Up to 37 A rms current rating
• Easy to assemble because the strain relief locks withthe insert mechanically and aligns with the housing
• Ergonomic design with slip-proof two-componentmolded housing
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing

Specifications

• Contact resistance: ≤ 2 mΩ
• Lifetime: Typically 5’000 mating cycles
• Terminals: Screw type
• Temperature range: -33 °C to +80 °C
• IP rating: IP20
