High Frequency Driver Unit - CORVA Series

High frequency compression unit for driving the horn flare of a high power PA cabinet. The voice coil is mated to a 50mmØ Titanium diaphragm, handling up to 150Wrms of high frequency top produce the very high SPLs of upper frequencies needed in commercial sound reinforcement enclosures. A direct replacement for CORVA-12 and CORVA-15 active or passive PA cabinets.

Features

Up to 150Wrms power handling
Accurate and efficient Titanium diaphragm

Specifications

Impedance — 8 ohms
Power handling RMS — 150W
Power handling max. — 300W
Frequency response — 800Hz-20kHz
Sensitivity — 105dB/mW
Voice coil — 75mmØ (3") Kapton
Magnet — Ceramic 1.75kg (62oz)
Throat — 50mmØ (2")
Dimensions — 125 x 225mmØ
Weight — 4.5kg

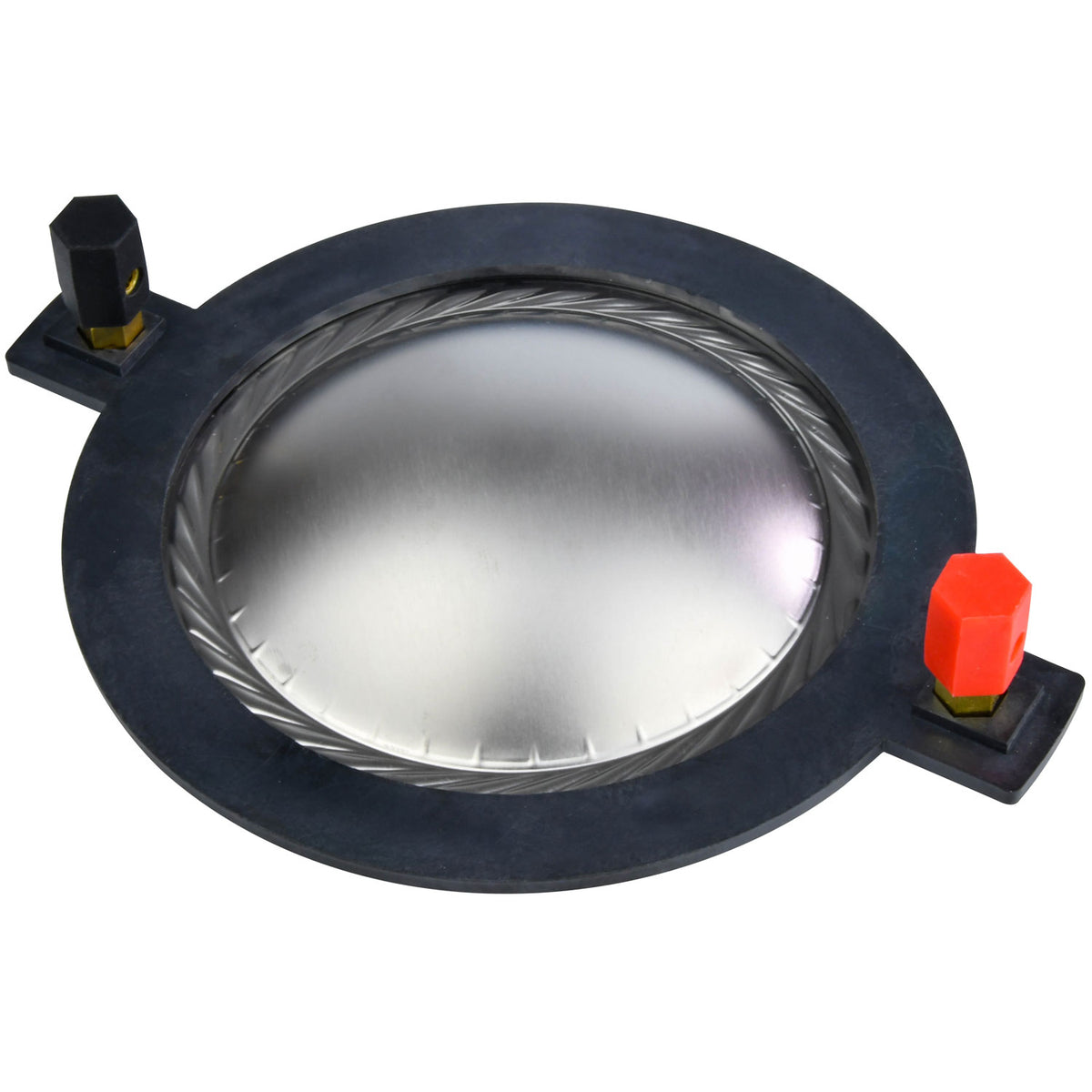

Diaphragm — Titanium - 140 x 110 x 30mm, 40.3g
