CA-5D Fire-Rated Ceiling Speaker 5.25in - 100V

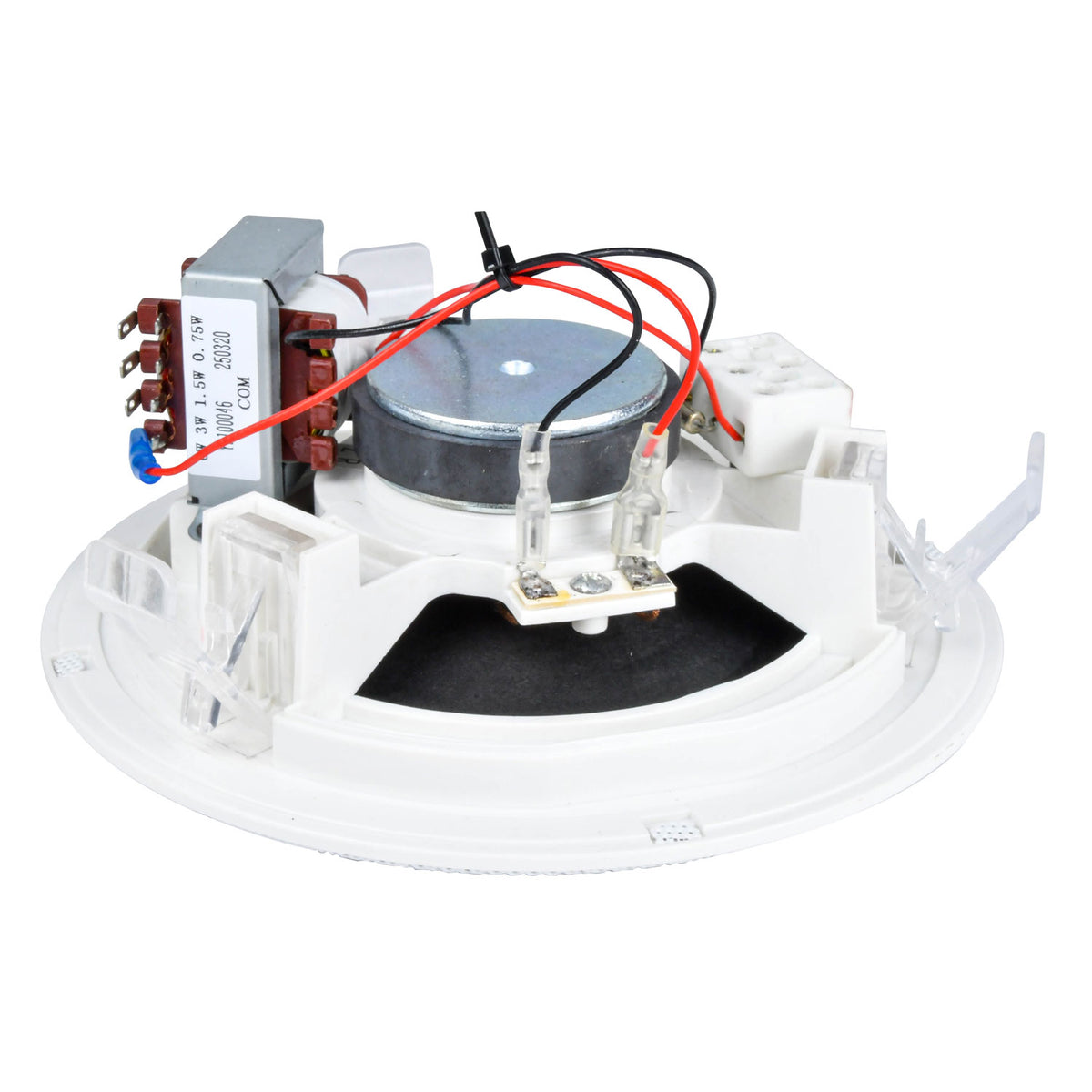

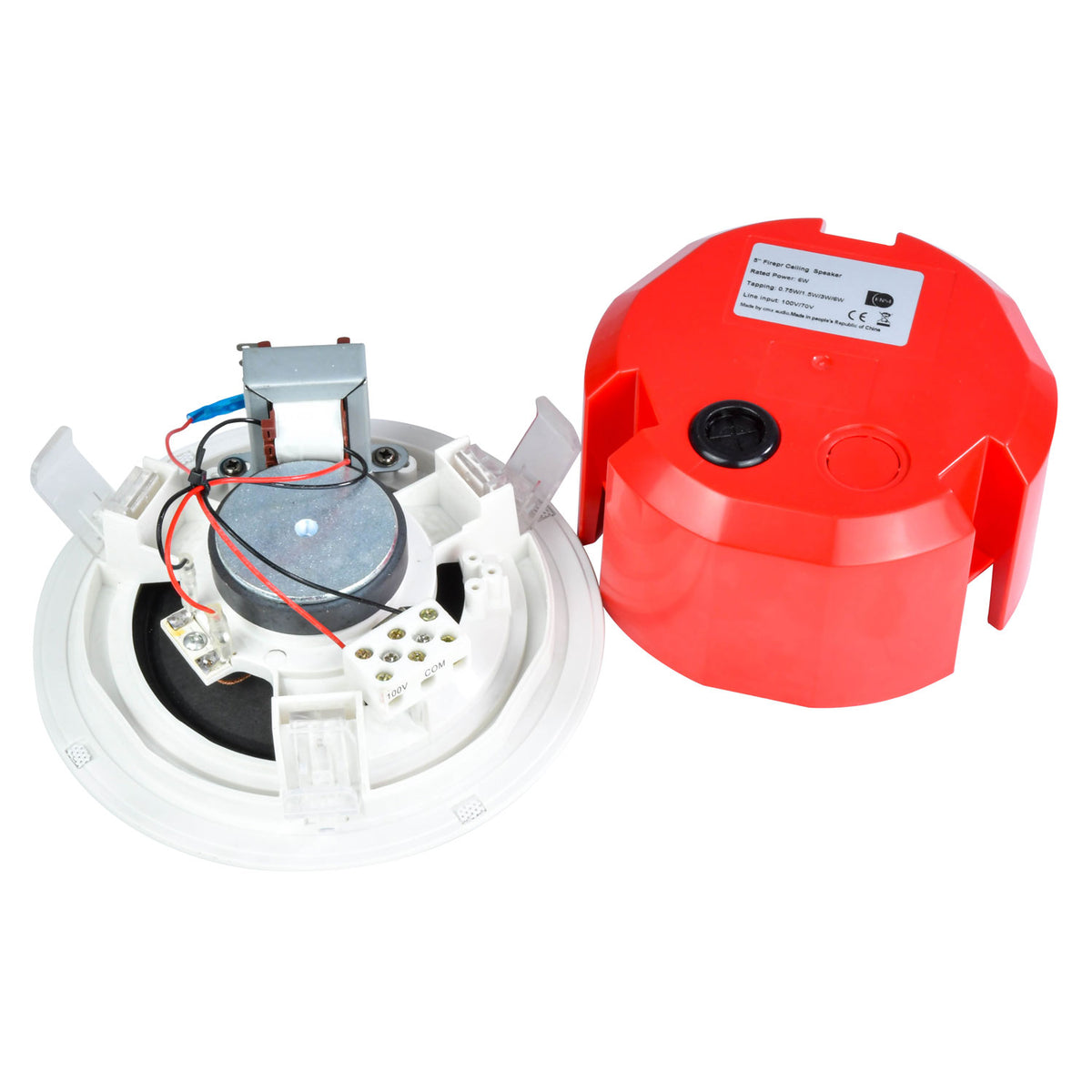

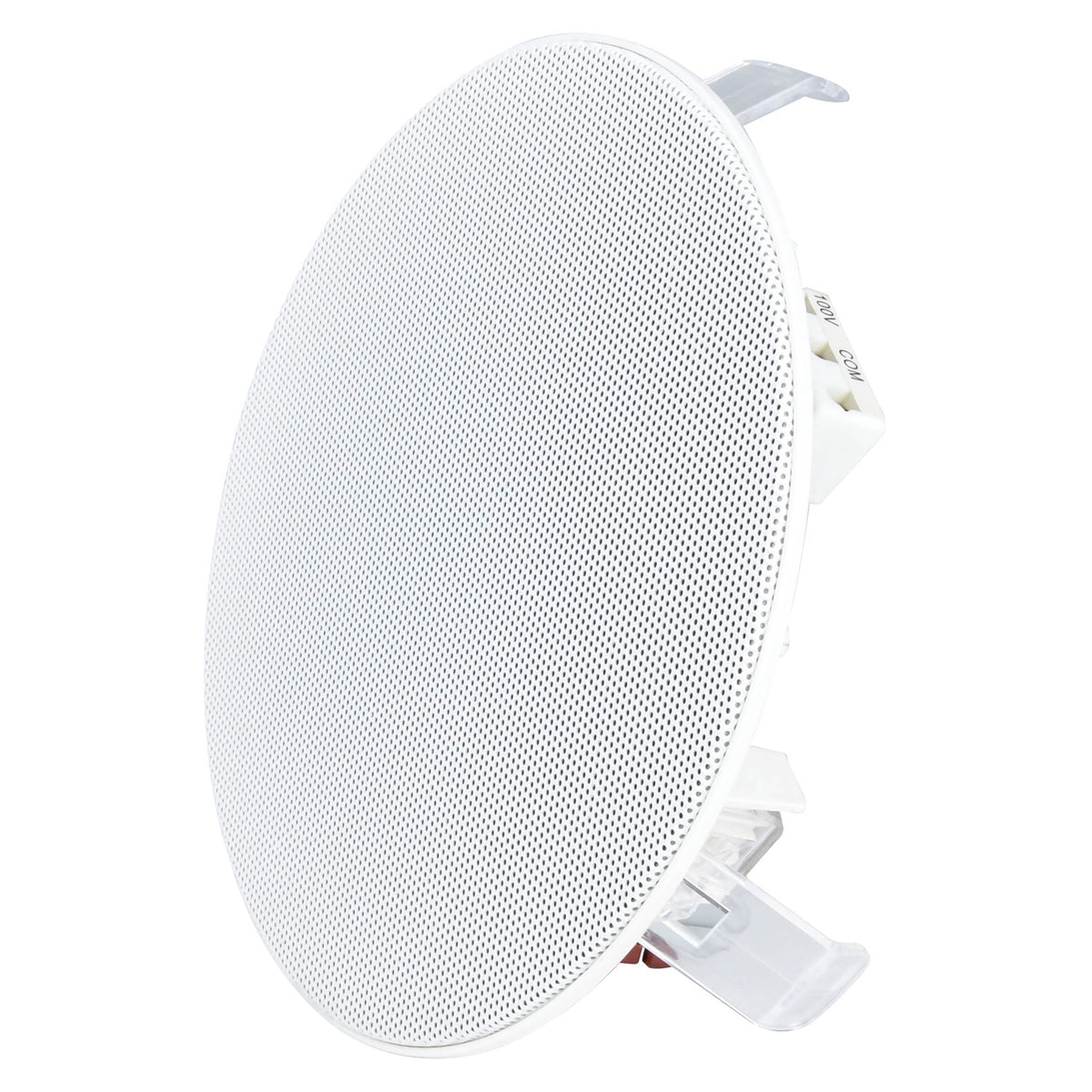

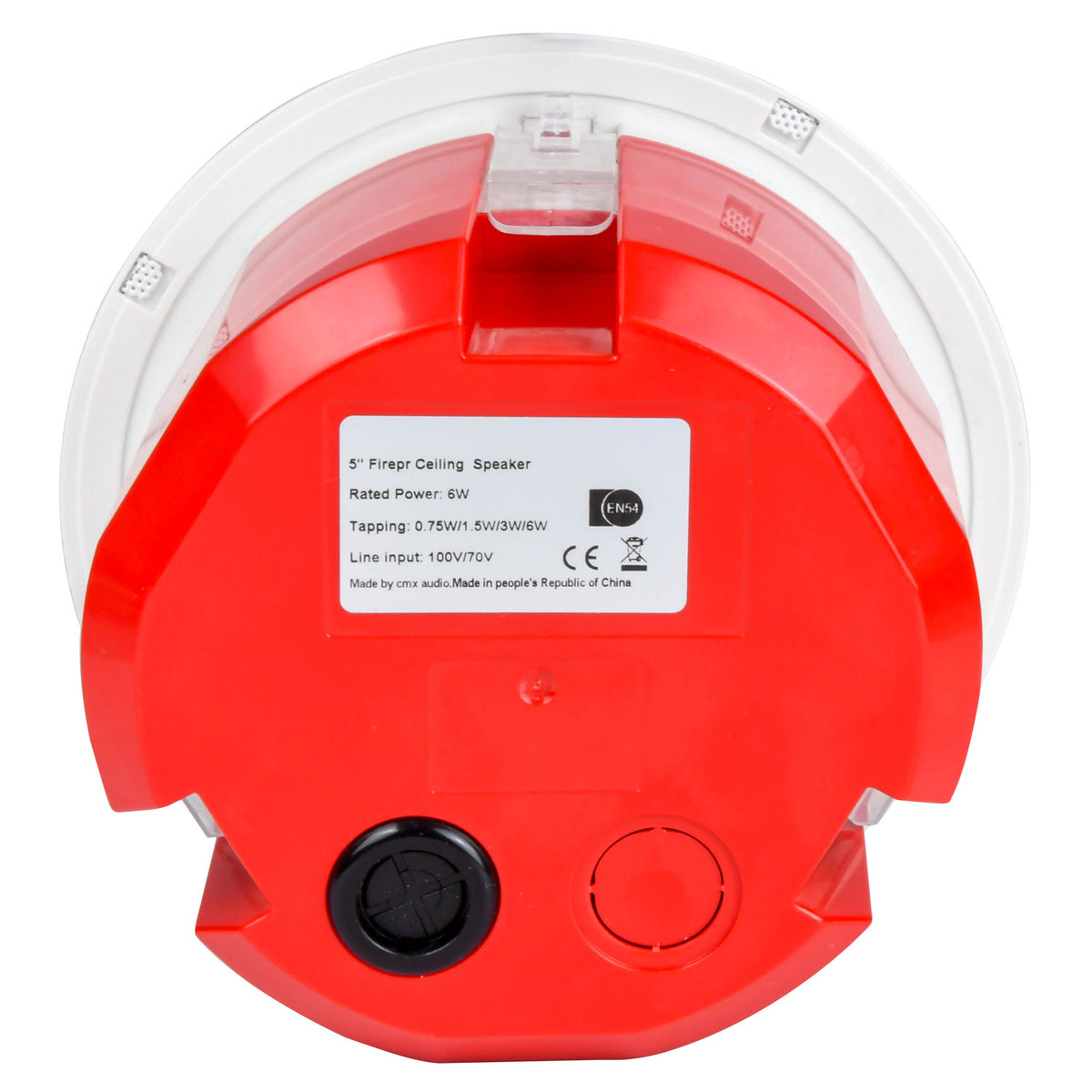

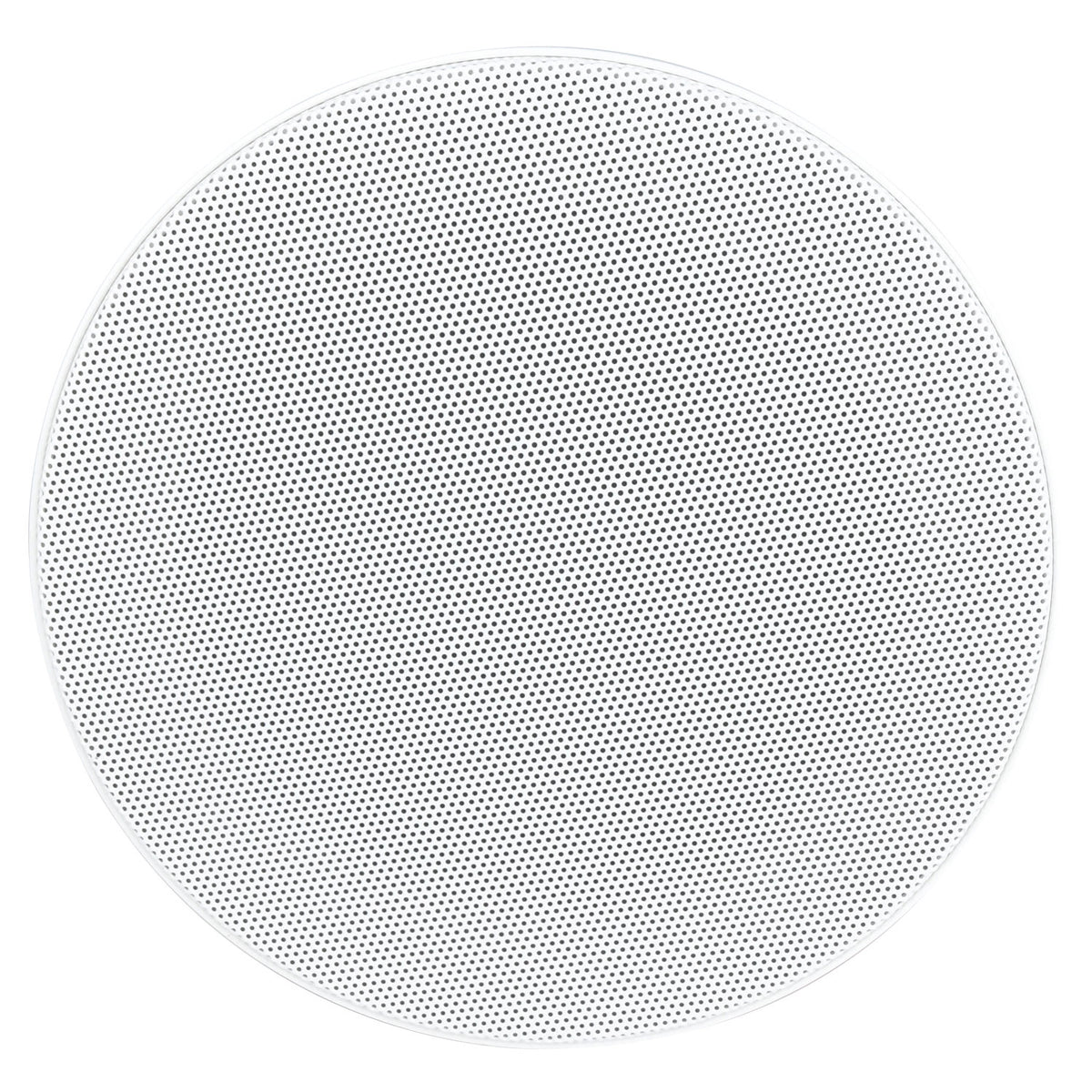

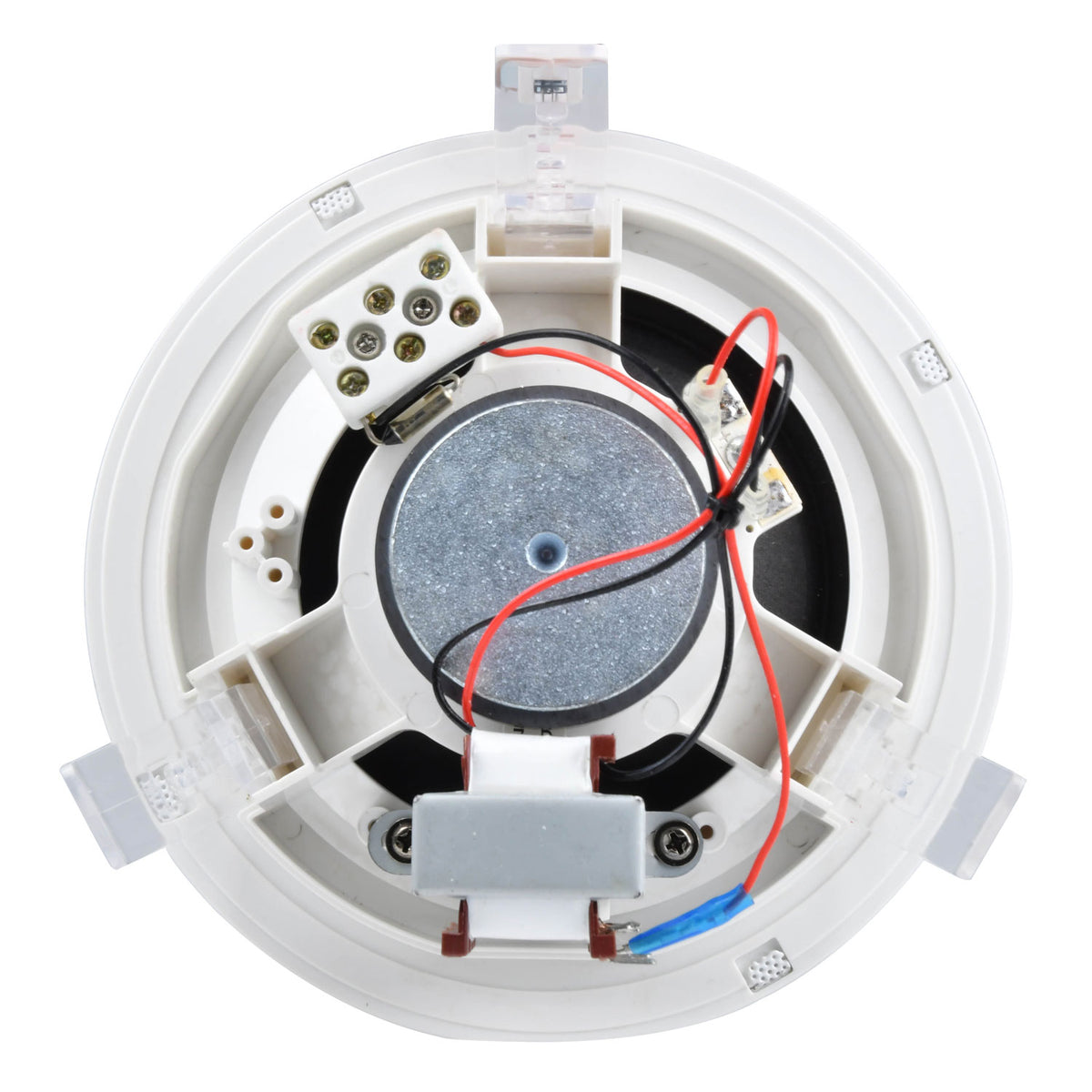

CA-5D is a recessed ceiling speaker in a moulded basket and top dome made from V0 fire-retardant ABS material. Internally, the 5.25" dual cone driver is coated in a fire-resistant finish, connected via a fire-resistant cable to a ceramic terminal block and 100V transformer. Cable access is via gland knock-out holes. Fully certified to EN54-24 for use in fire-rated commercial installations.

Features

100V transformer with 4 power tappings
Fire resistant EN54-24 compliant
Ceramic terminal block and thermal fuse fitted.
3-way quick-fit ceiling clamps

Specifications

Tappings — 0.75W, 1.5W, 3W, 6W
Cutout diameter — 140mmØ
Sensitivity — 92±2dB (max 98±2dB) @ 1W/1m
Approvals — EN54-24
Frequency response — 105Hz-15kHz
Construction — Moulded fire-resistant ABS (V0)
Impedance — 8 ohms
Driver — 135mmØ (5.25") coated dual cone
Dimensions — 85 x 165mmØ
Weight — 650g
