F40V Outdoor Fire-Rated Column Speaker IP66 EN54-24

100V column speaker with a heavy-duty die-cast aluminium alloy housing & grille and fully rotatable rear wall-mount bracket. Water-resistant to IP66 for outdoor use and certified to EN54-24 for compliance with fire voice evacuation systems. Protection for use in these systems includes a fireproof cable and 95°C thermal fuse. Output has a frequency response suitable for music playback in addition to voice announcements. The F40V can be operated in 100V or 70.7V systems, as well as a standard 8 Ohm speaker. Designed to provide uncompromised sound quality in PA systems that are relied upon for emergency and evacuation alerts.

Features

EN54-24 certified for use in fire evacuation systems
IP66 weatherproof

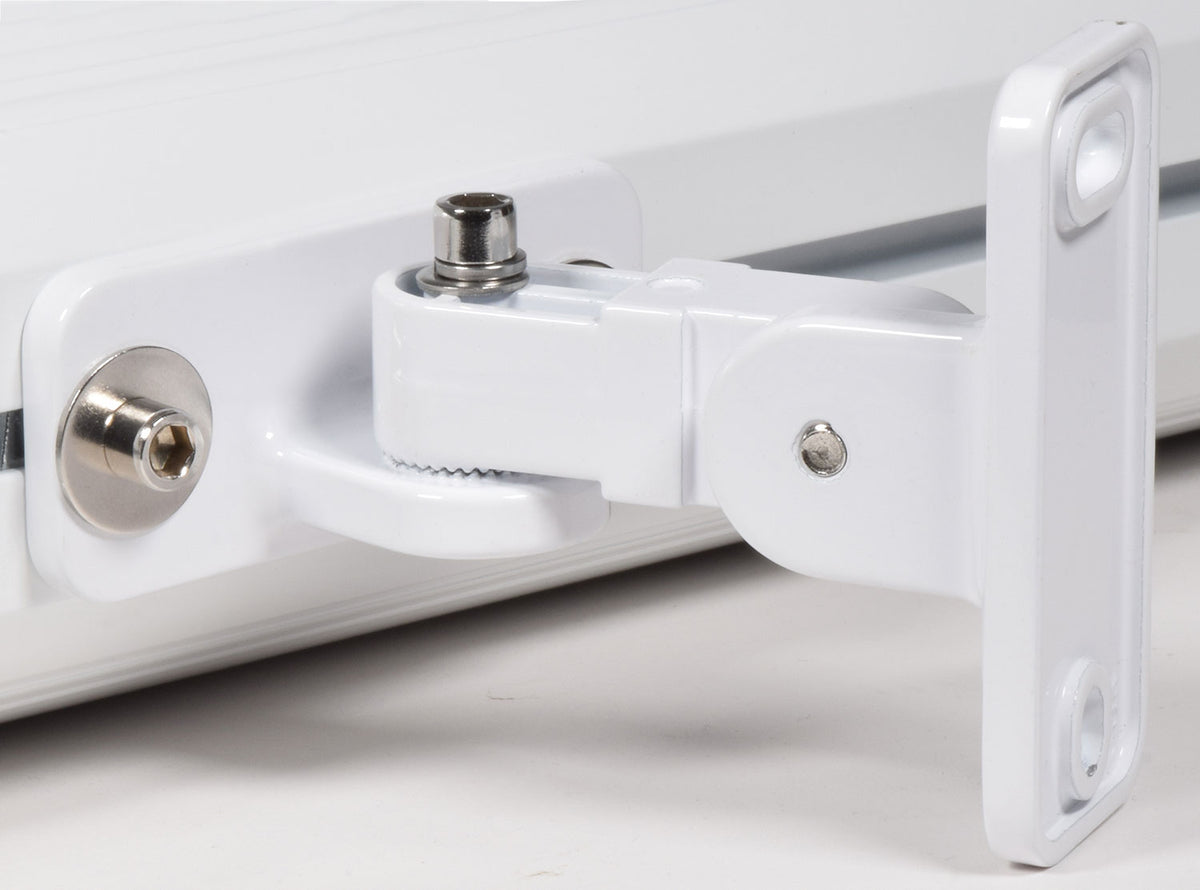

Integral fully rotatable mounting bracket
100V, 70V or 8 Ohm operation
Internally wired 95°C thermal fuse

Specifications

Power handling RMS — 40W
Construction — Powder coated aluminium alloy housing and grille
Tappings — 5W, 10W, 20W, 40W (100V) & 8 Ohms
Frequency response — 150Hz-18kHz
LF driver — 4 x 75mmØ (3") woofers
HF driver — 1 x 63mmØ (2.5") tweeter
Connection — Hard-wired fire resistant cable via IP66 gland
Fire rating — EN54-24 certified
Sensitivity — 96dB (1W/1m)
IP rating — IP66
Circuit protection — Thermal fuse
Dimensions — 500 x 175 x 97mm
Weight — 3.87kg
