Paging Microphone with Chime

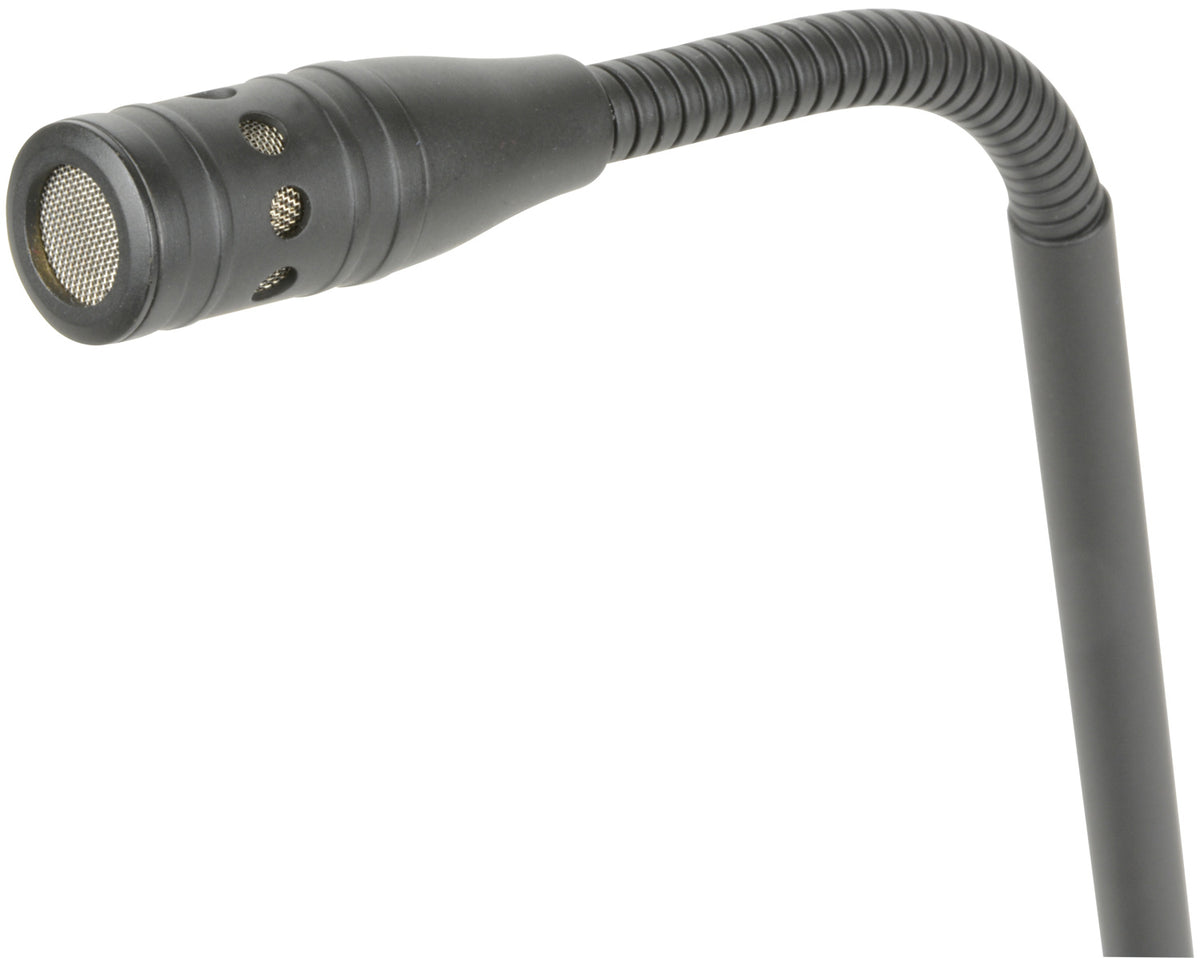

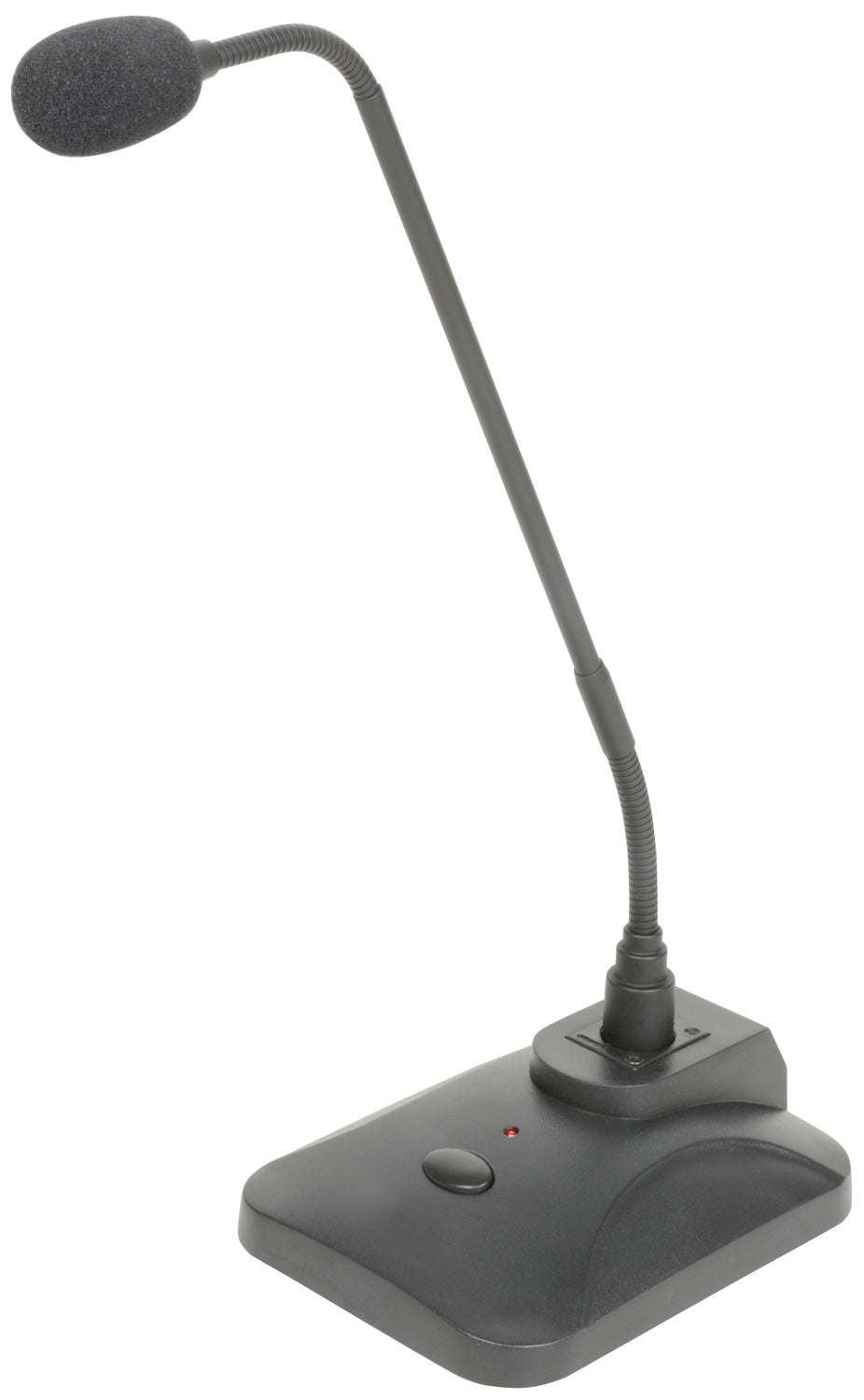

A gooseneck condenser microphone with selectable chime function. Microphone connection to the base is via XLR and output is on XLR at the rear. Power is provided to the microphone capsule either from 2 x AA batteries in the base or from 5Vdc via the supplied USB lead. The base is also home to a latching paging button on top and a chime section on the underside. DIP switches offer a selection of chime settings, governed by a rotary volume control. Designed for remote paging and announcements.

Features

10 selectable chime settings

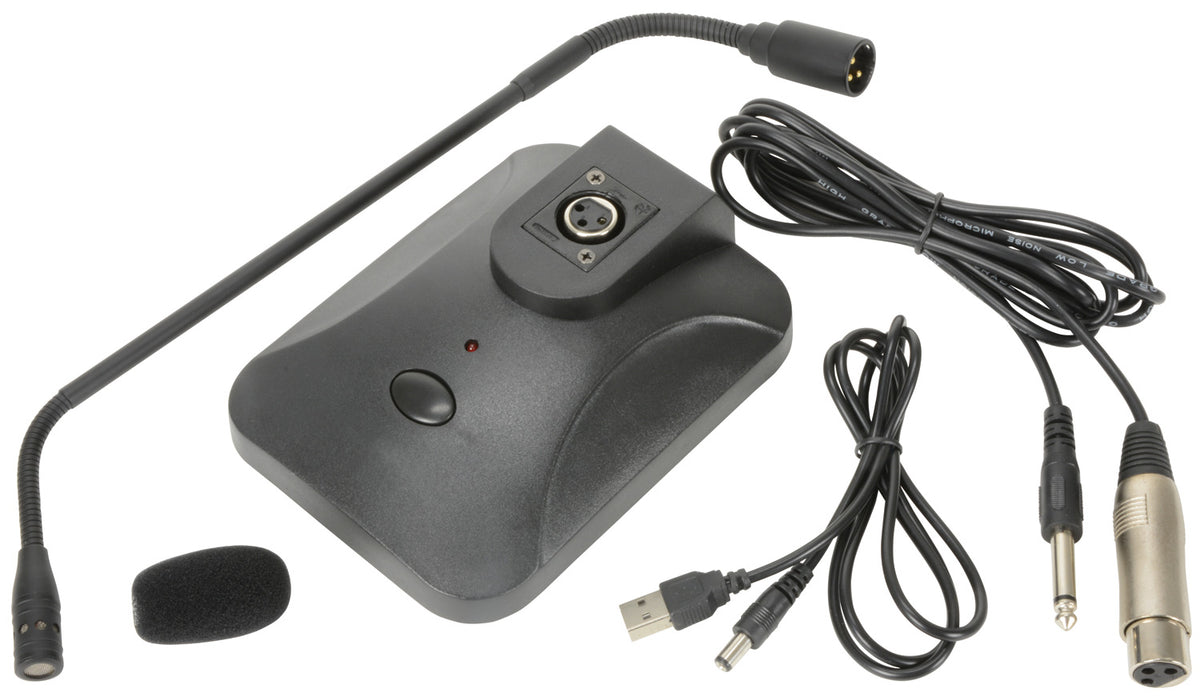

Supplied with USB power lead
Supplied with XLR to 6.3mm jack lead

Specifications

Lead length — XLR-jack 2.2m, USB 1.0m
Power supply — 5Vdc (USB lead supplied) or 2 x AA batteries (optional)
Capsule — Electret condenser

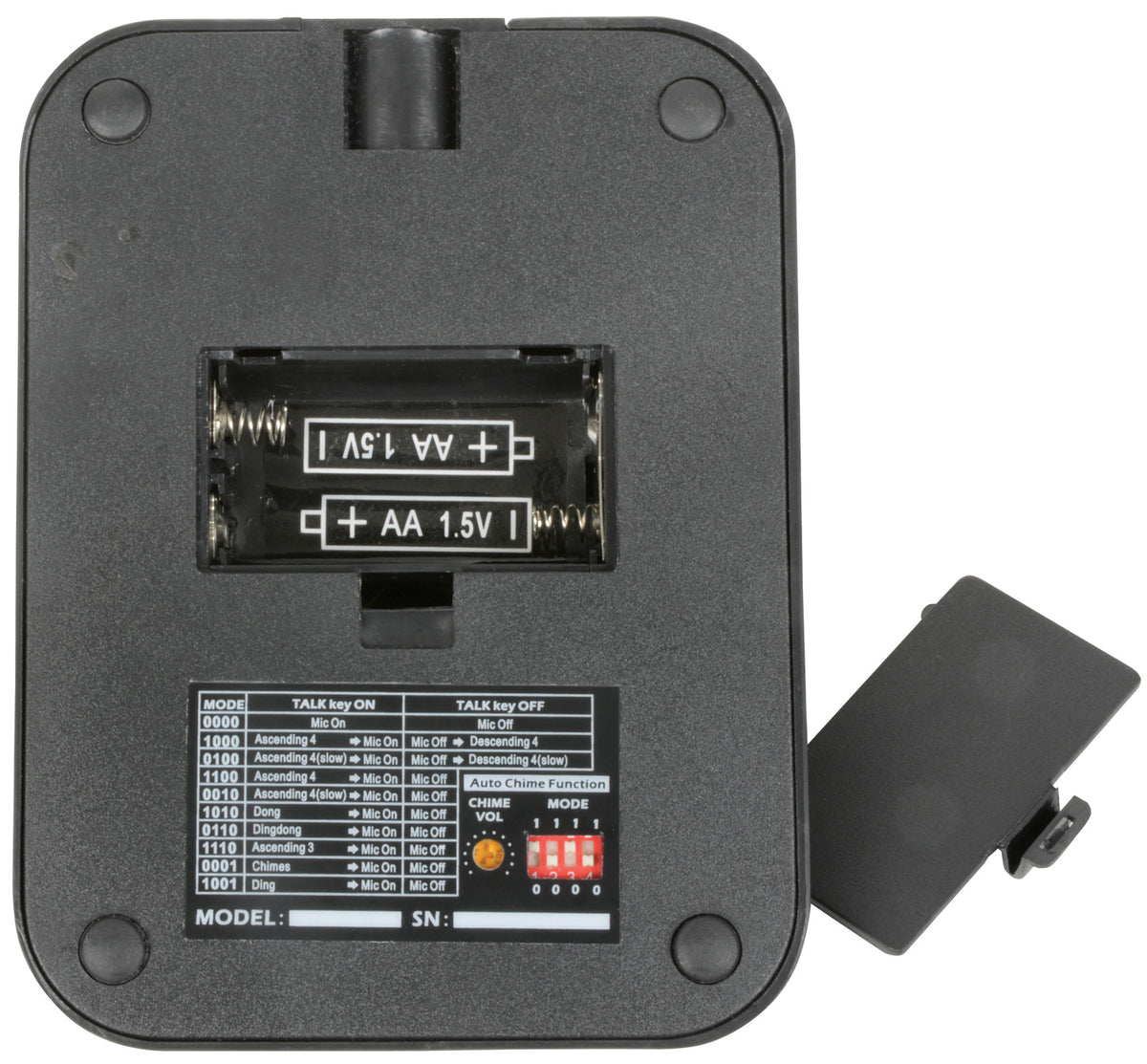

Chime function — 10 DIP switch settings (including off)
Polar pattern — Cardioid
Sensitivity — -46dB (±2dB)
Frequency response — 50Hz - 20kHz
Impedance — 680 Ohms
Dimensions — 445 x 150 x 112mm
Weight — 518g (inc. base)

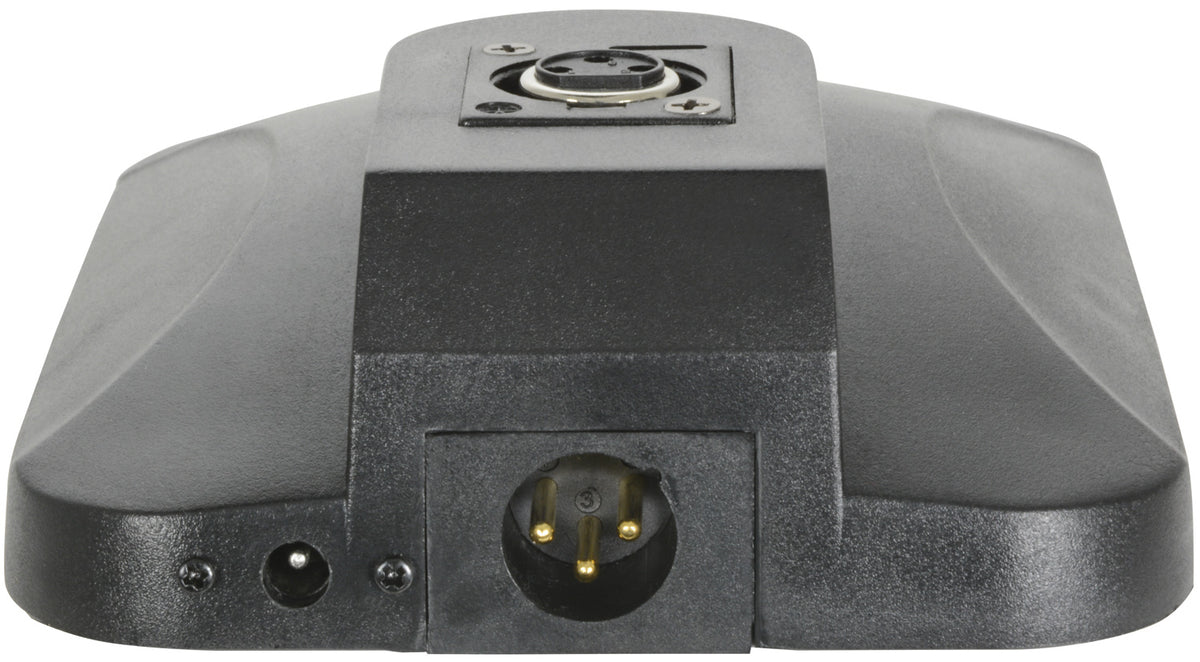

Connection — XLR output, DC5521 jack (power)
