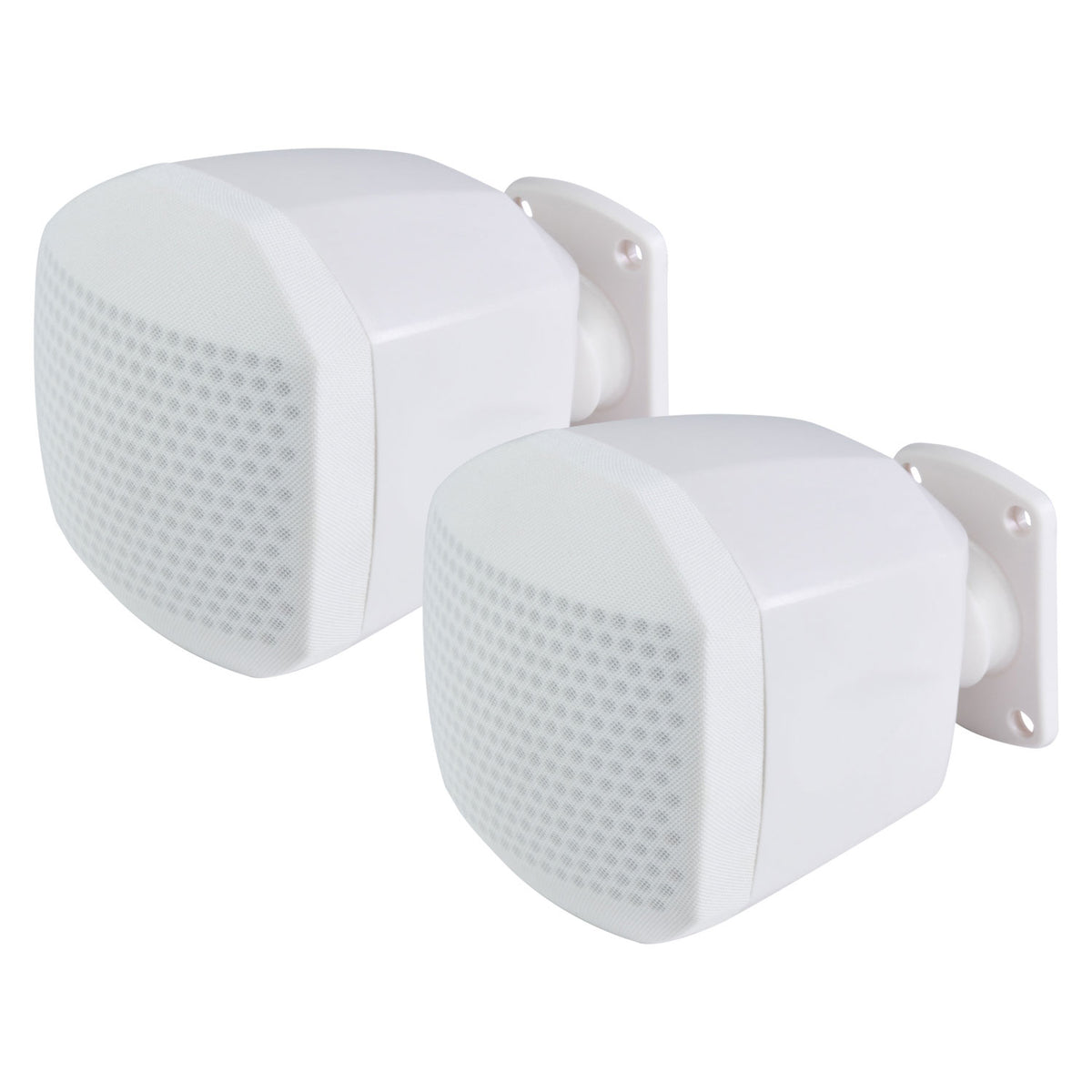

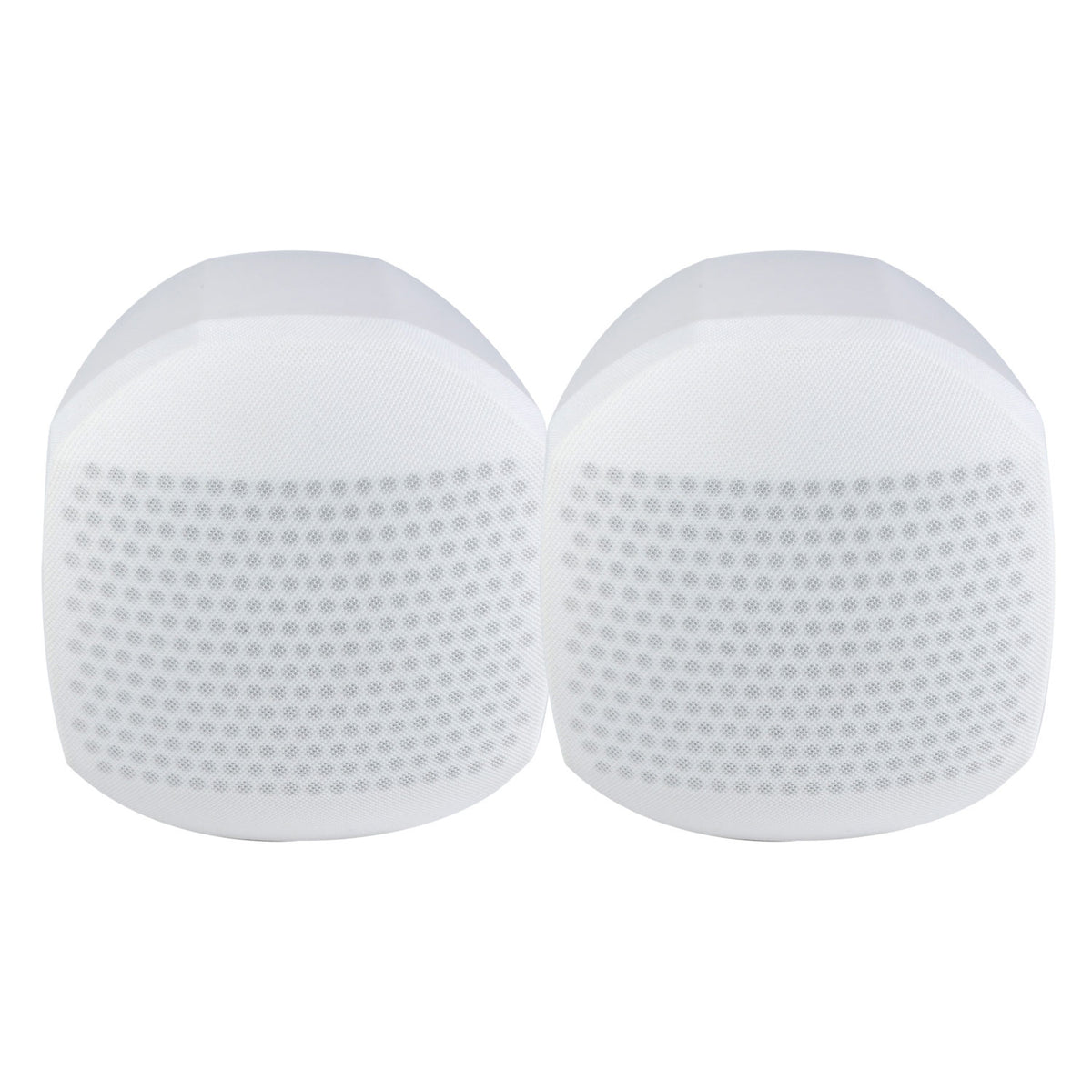

CBS-35 Coaxial Background Speaker 100V - Pair

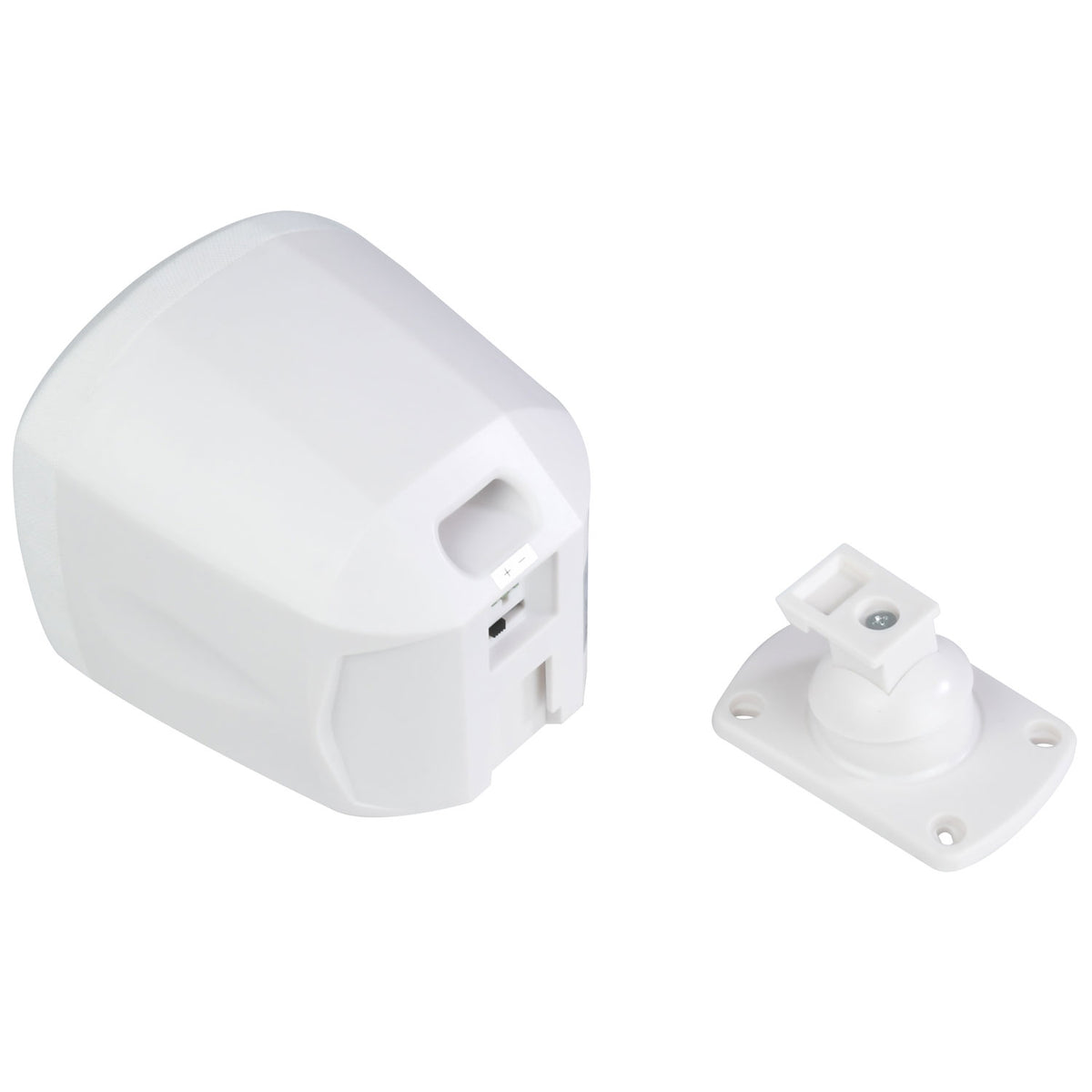

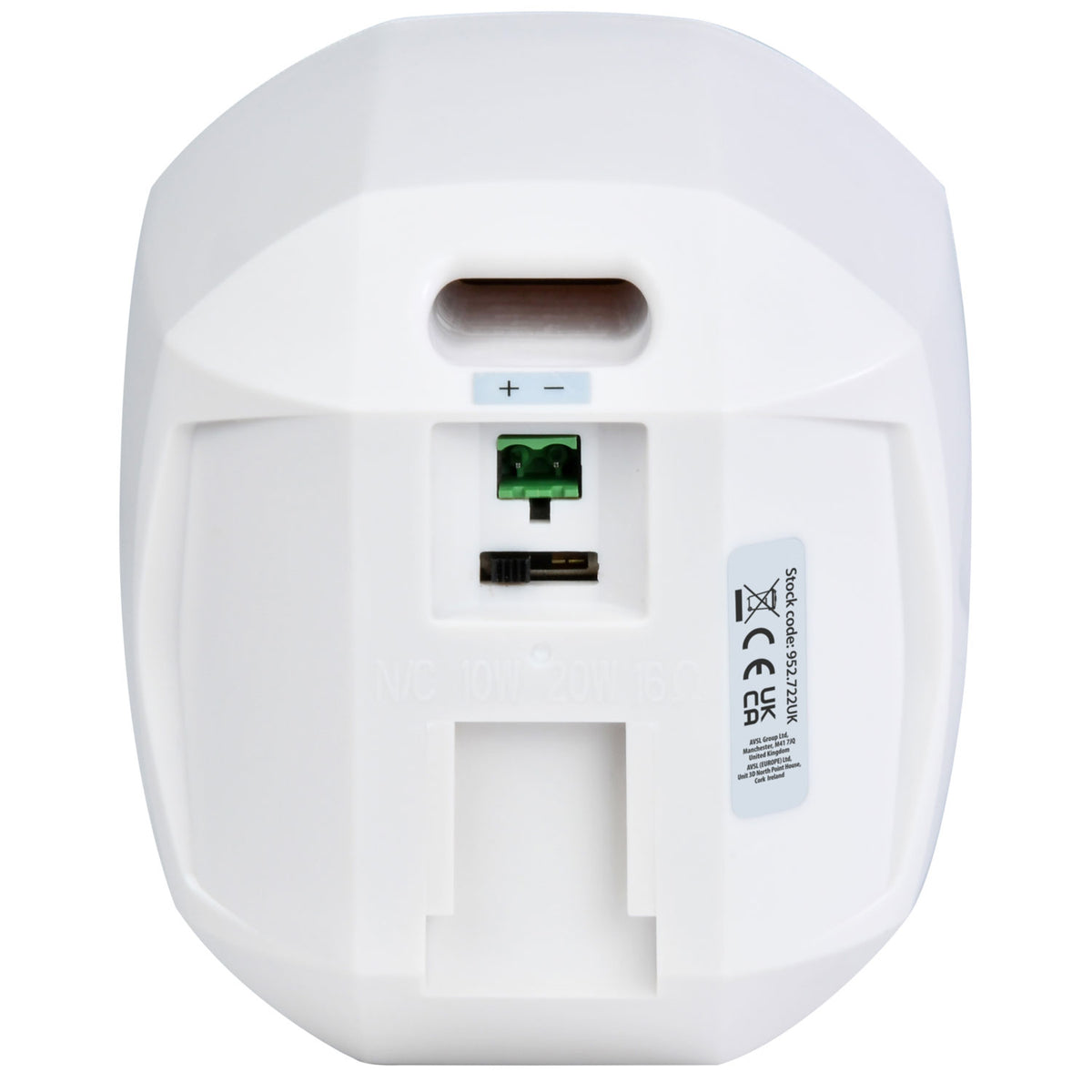

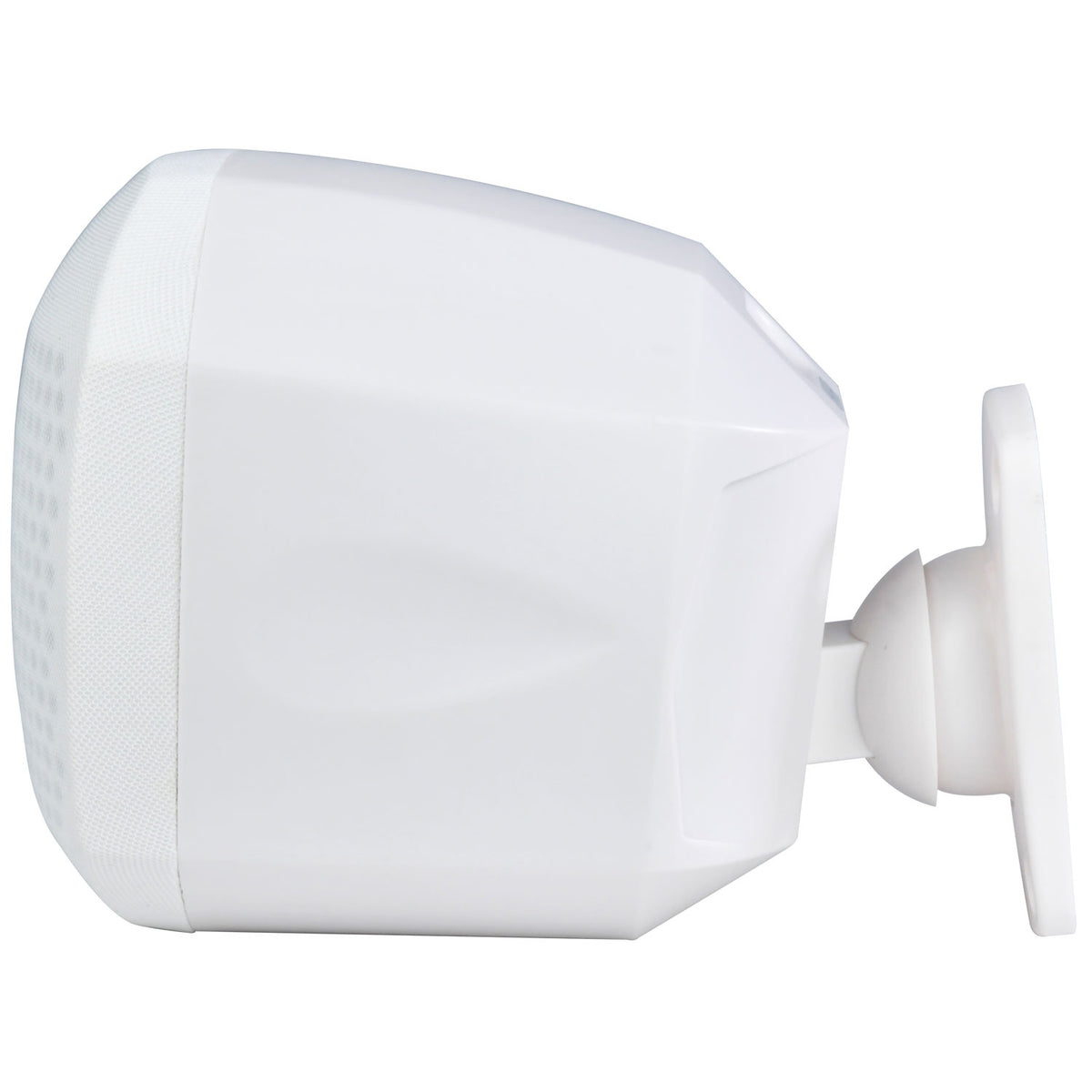

CBS-35 is a compact indoor wall speaker unit constructed from high impact ABS material with a removable rear multi-angle mounting bracket. A single 90mmØ bass driver has a concentric tweeter assembly that both combine to provide a balanced and phase-aligned full-range output. Connection at the rear is via a removable screw terminal euroblock connector and is accompanied by a slide switch for 100V operation with 10W or 20W tappings or a 16 Ohm option. Designed for background music and general purpose public address duties in leisure, retail and other public settings. Supplied in pairs.

Features

Integrated multi-angle bracket
100V or 16 Ohm operation
Coaxial full-range driver
Supplied as a pair

Specifications

Tappings — 10W-20W (100V), and 16 ohms
Driver — Coaxial 90mmØ main driver with concentric tweeter
Housing — Moulded ABS & cloth-fronted perforated grille
Sensitivity — 85dB (±2dB)
SPL max. — 99dB (±2dB)
Frequency response — 120Hz-20kHz
Dimensions — 187 x 138 x 125mm (each)
Weight — 1.23kg (each)
