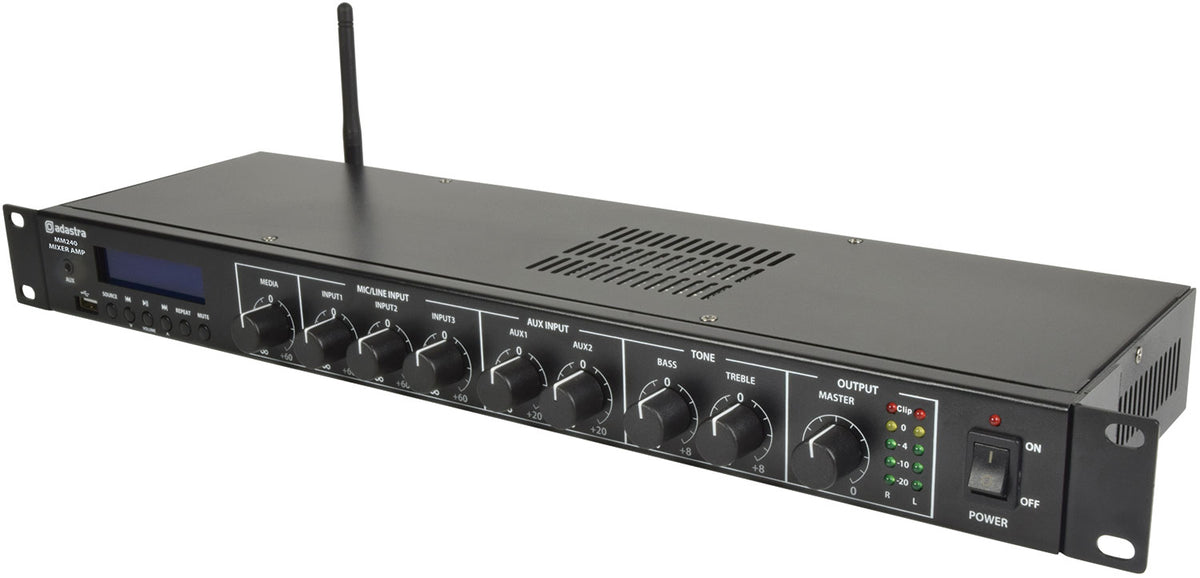

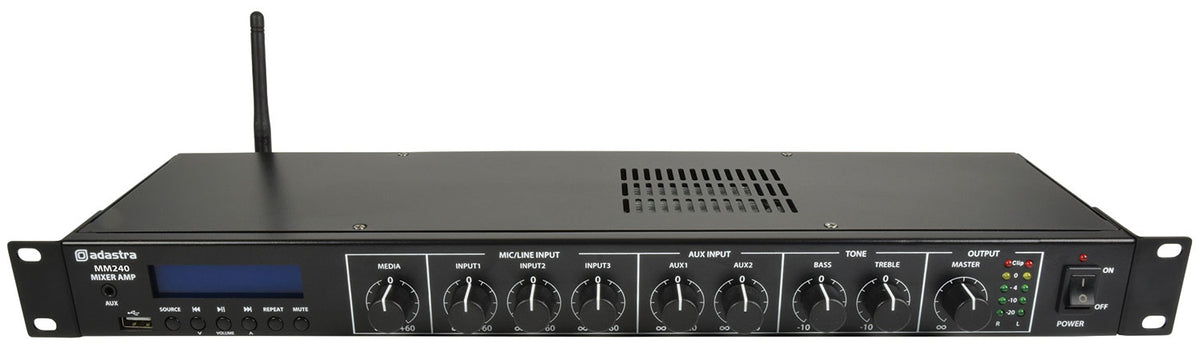

MM240 Mixer Amplifier 2 x 120W

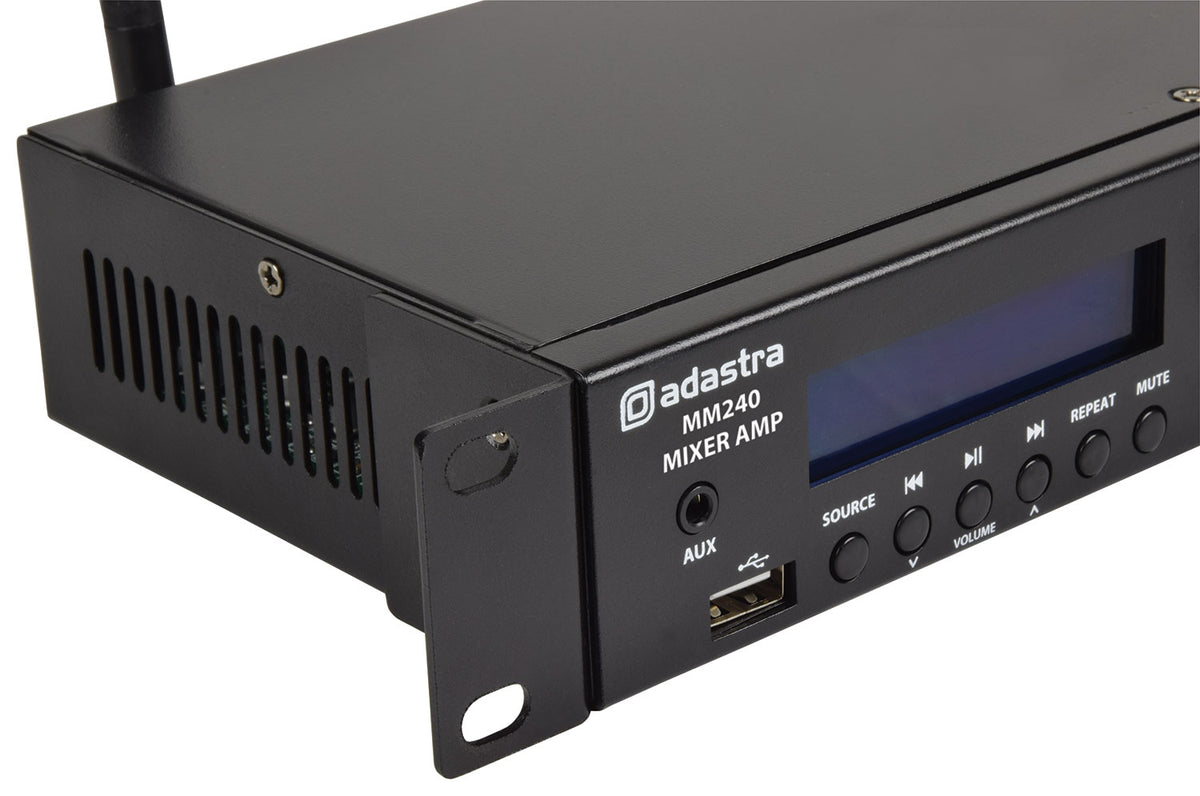

Compact 1U mixer-amp featuring a built-in media player with DAB+ and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB+/FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.

Features

DAB+/FM radio tuner
Bluetooth receiver with unique serial ID
USB audio player
Switchable +20V phantom power
Variable priority muting for channel 1
24V emergency mute contacts

Specifications

Power supply — 100-240Vac, 50/60Hz (IEC)
Fuse — T3.15A 250V
Input : mic/Line — 3 x XLR (bal/unbal)
Input : aux — 2 x L+R RCA
Input : line — 3.5mm jack to media player
Audio source — DAB+/FM tuner, USB player, Bluetooth receiver
Line output — L+R RCA

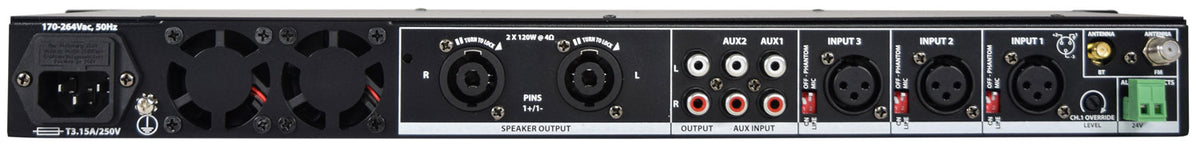

Speaker outputs — L+R SPK connector
Emergency control — 24V contacts mute all except channel 1
Phantom power — +20V (switchable channels 1-3)

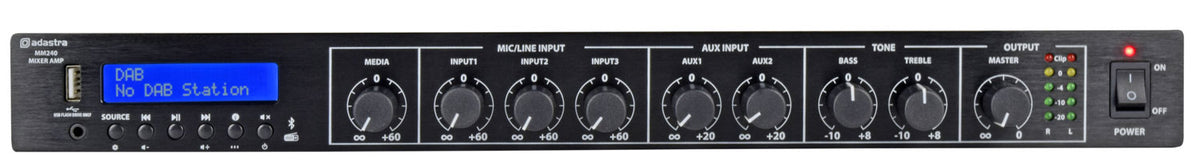

Controls — Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Rear panel controls — Priority muting level, mic/line and phantom DIP switches
Input impedance — 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic — 20Hz - 18kHz
Frequency response : line — 14Hz - 20kHz
Frequency response : aux — 10Hz - 23kHz
Input sensitivity : mic/line — -45dBV
Input sensitivity : aux/line — -10dBV
SNR — 55dB (mic), 60dB (aux/line)
Signal to noise ratio : aux/line — 60dB
Output power @ 4 ohms — 2 x 120W RMS
Dimensions — 48
