DM-Series Mixer-Amp with USB/FM and Bluetooth

100V line mixer-amp with digital amplifier in a compact housing. An onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.

Features

Bluetooth connectivity
Integral USB player and FM tuner
100V line or 4-16 Ohms operation
Note: USB port is not for charging smart phones

Specifications

Power supply — 230Vac, 50Hz (IEC)

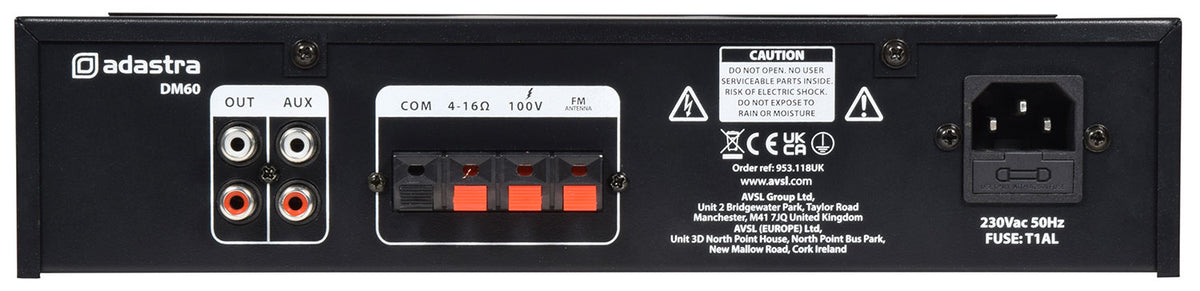

Speaker outputs — COM, 100V and 4-16 ohms (spring terminals)
Audio source — USB player, FM tuner and Bluetooth receiver
Bluetooth version — 2.1

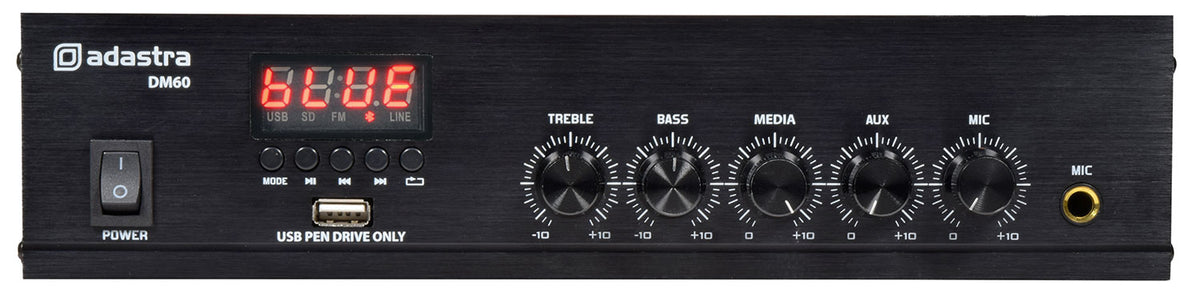

Controls — Treble, Bass, MP3, Aux, Mic
Input : mic — 6.3mm jack (unbalanced)
Input : line — 2 x RCA (summed to mono)
Line output — 2 x RCA
Antenna connection — Spring terminal
Dimensions — 280 x 205 x 67mm (L x W x H)
Fuse — T1AL 230V
USB version — USB 2.0 (FAT32, 128GB max.)
