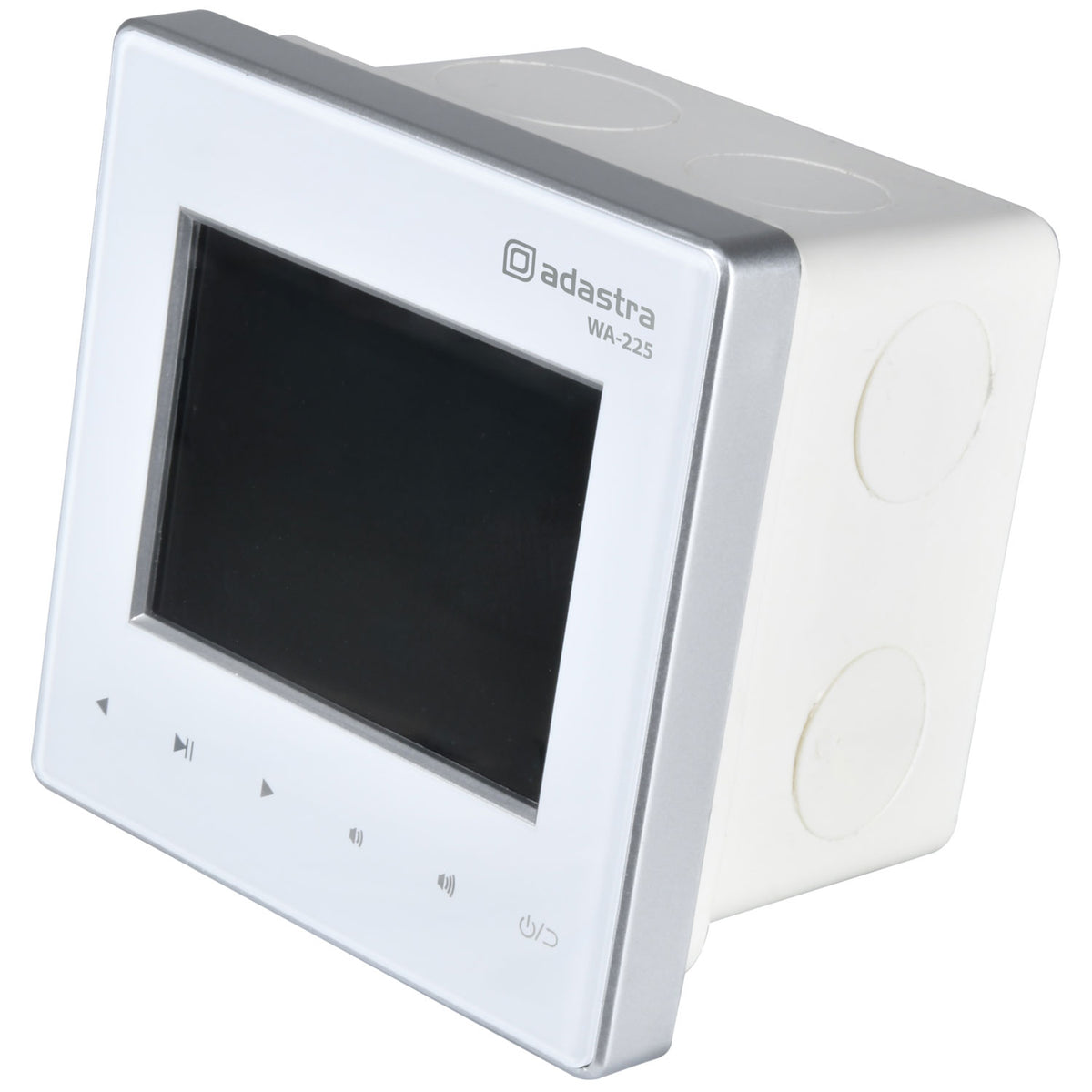

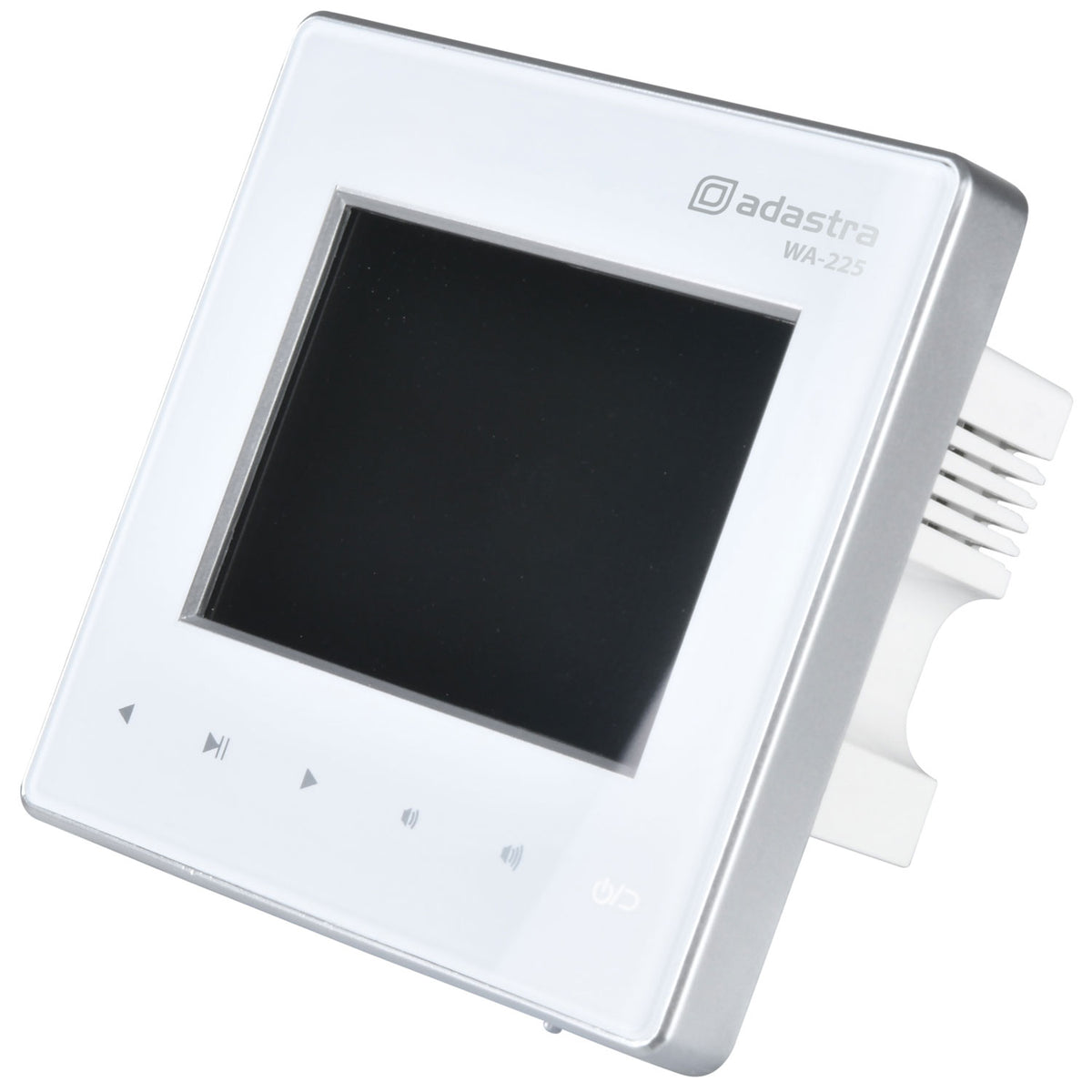

WA-225 Wall-Mount Amplifier with USB/SD, FM Tuner and Bluetooth

Compact audio control panel with 2 x 25W digital amplifier built into a single gang wall plate. Powered directly from a 100-250Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-225 has an inbuilt USB/MicroSD audio player, an FM tuner and a Bluetooth receiver. Additional features include date/time display with an alarm clock and even a playback scheduler for background music automation. Bluetooth has a programmable name and pairing code to avoid confusion in multi room installations. Menu options and playback are operated from the front touch panel or by using the supplied IR remote control, displayed on a full colour 2.8” TFT screen. Left & Right speaker outputs for 2 or 4 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. A trigger contact is also included for a built-in doorbell function. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.

Features

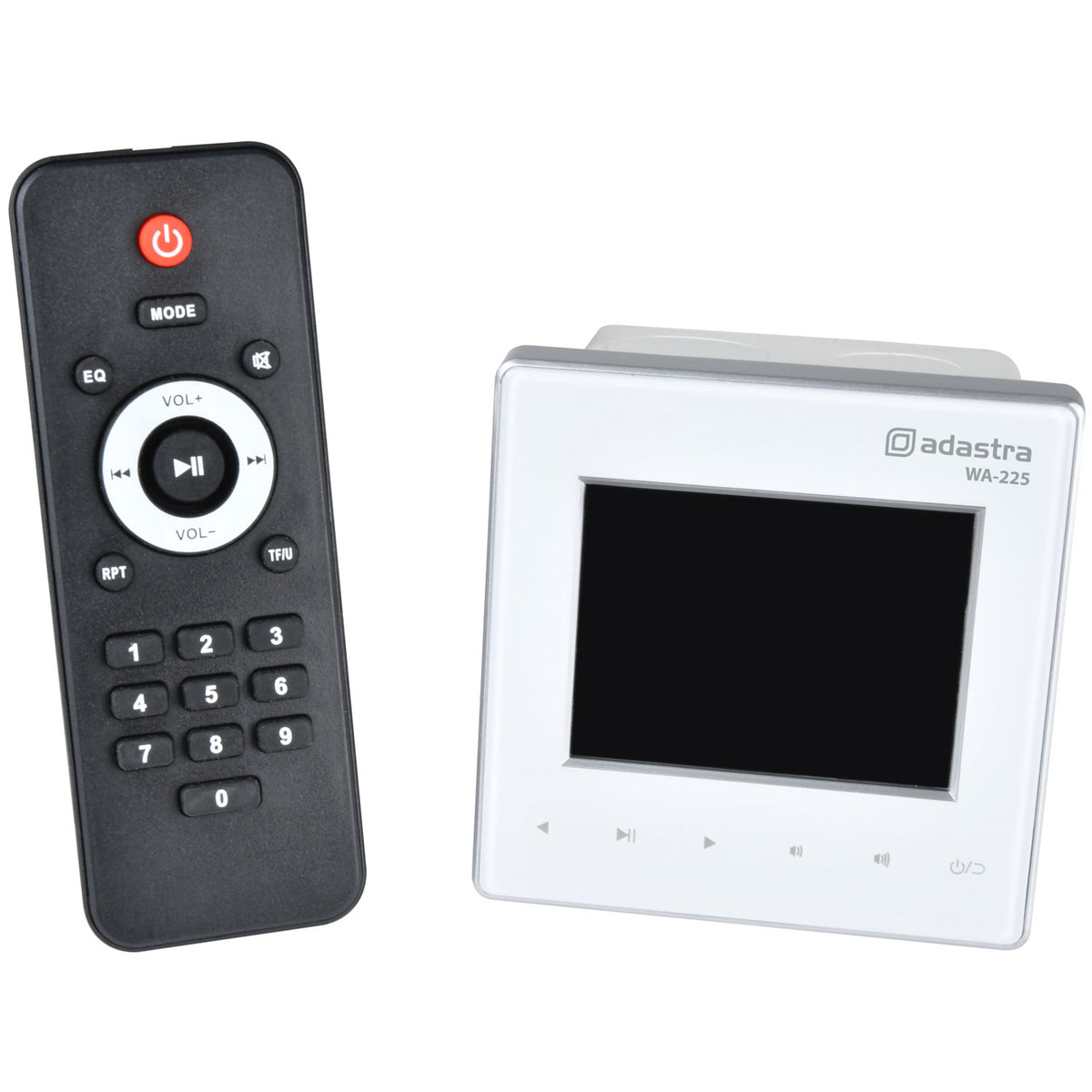

Supplied with 50mm back box and IR remote control handset.

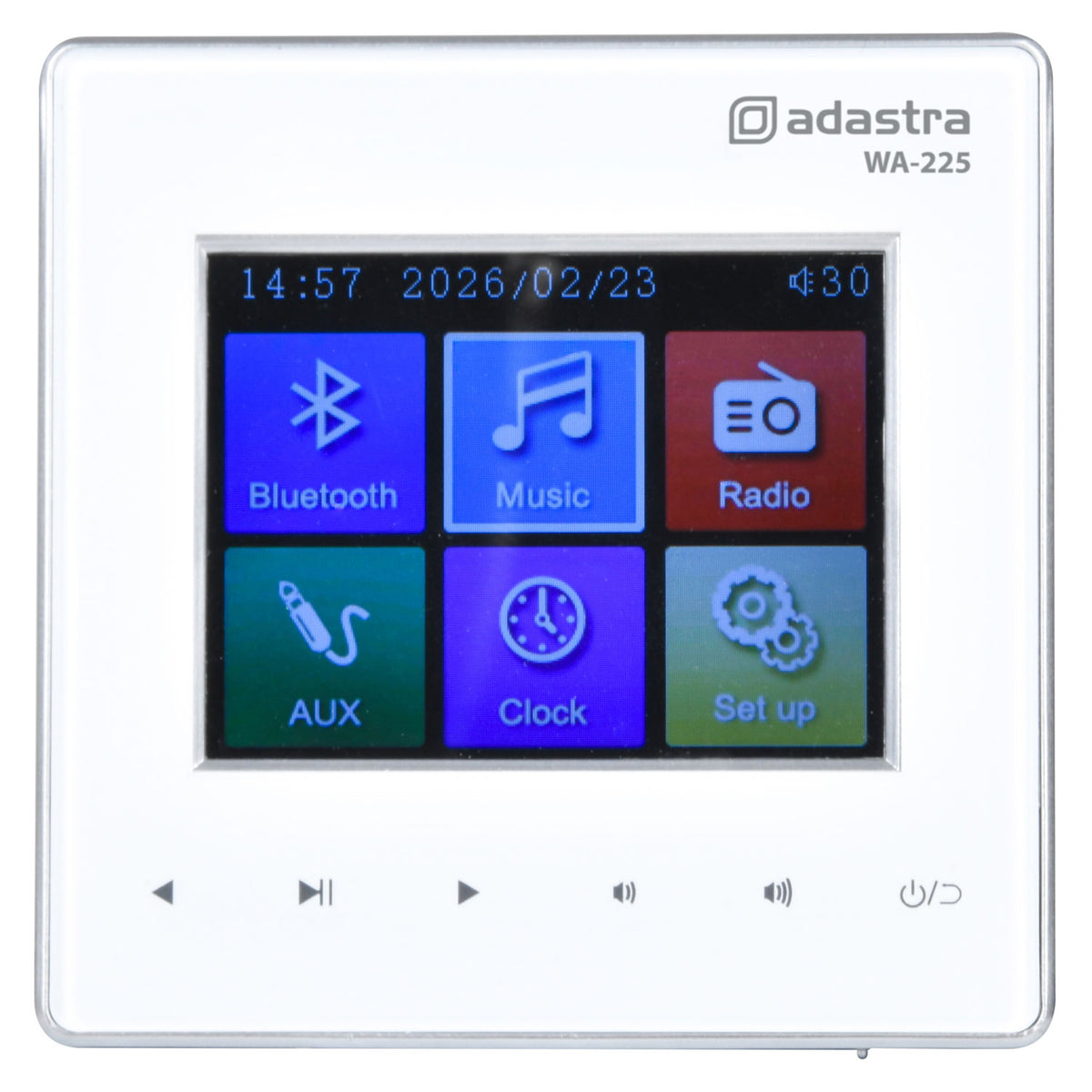

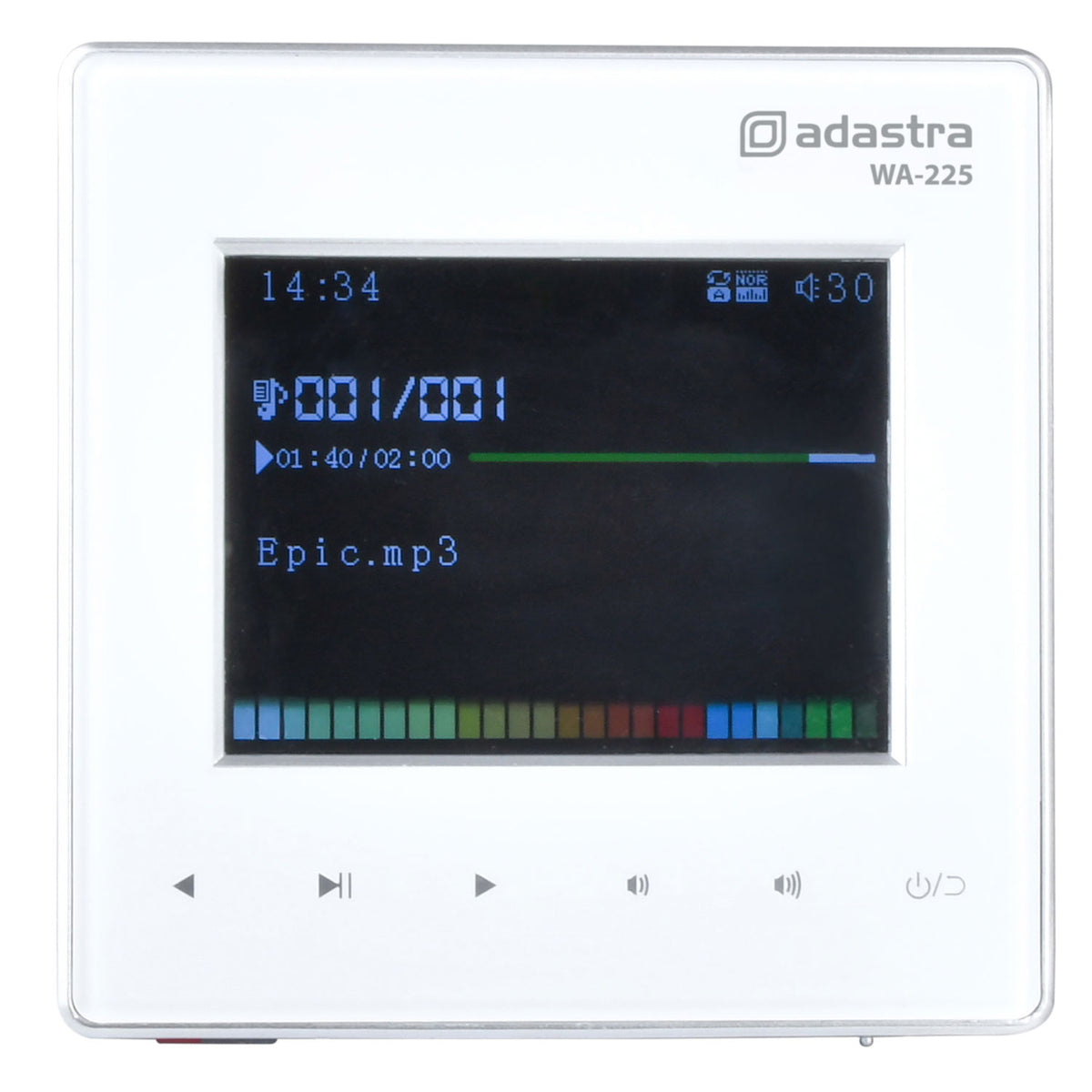

58 x 43mm full colour TFT display
Wipe clean touch control panel
Built in USB/microSD player and FM tuner
Bluetooth receiver

Specifications

Power supply — 110-250Vac 50/60Hz (screw terminals)
Inputs — microSD slot, USB-A port, 3.5mm Aux jack

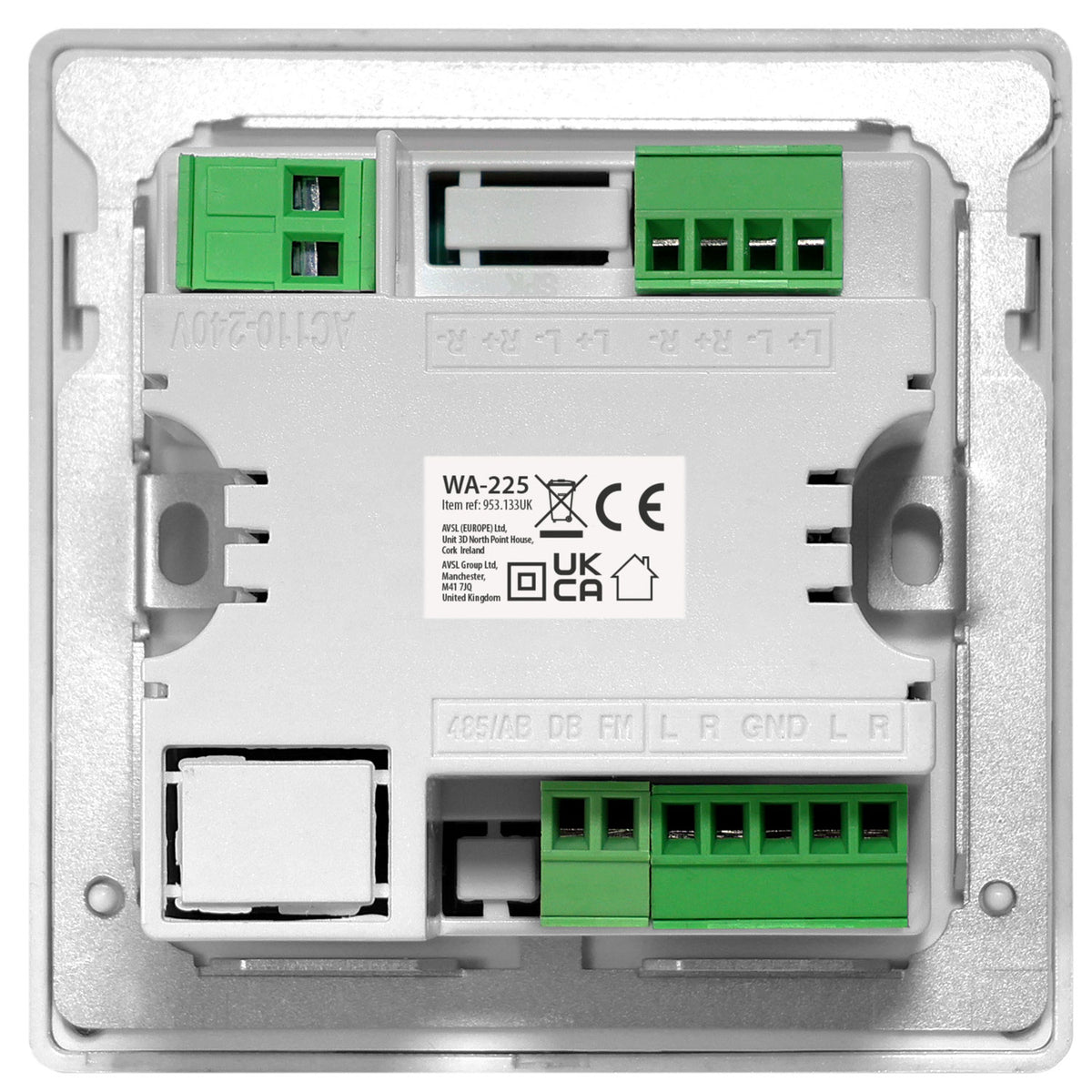

Terminals — L+N power, Doorbell, Aux L+R in/out, Speaker out L+R, GND, FM
Audio format — mp3, wma, wav, aac, waw, ape
Output power @ 4 ohms — 2 x 25W
Output power @ 8 ohms — 2 x 15W
USB/SD player — 32GB max. FAT32
THD — 0.03% (1W/1m)
Bluetooth range — Up to 10m
Frequency response — 20Hz-20kHz (±2dB)
SNR — 98dB
Modes — mp3, Bluetooth, FM tuner, Aux in
Dimensions — 86 x 86 x 50mm (inc. back box)
Mounting depth — 37mm (no back box)
Weight — 224g (inc. back box)
