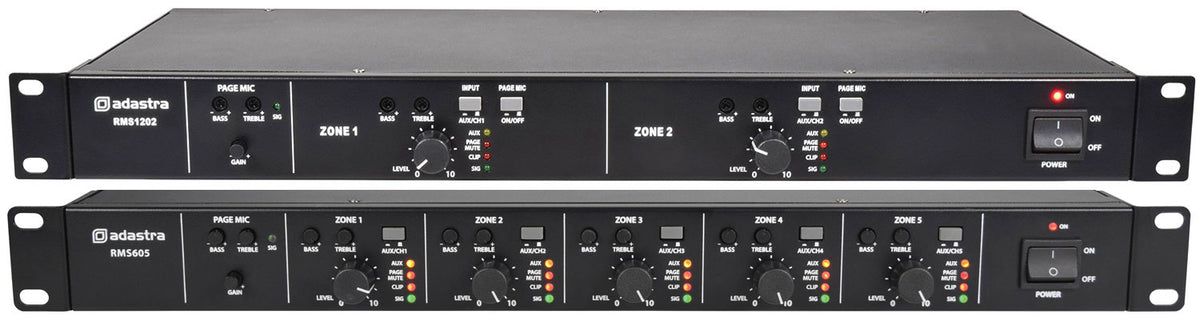

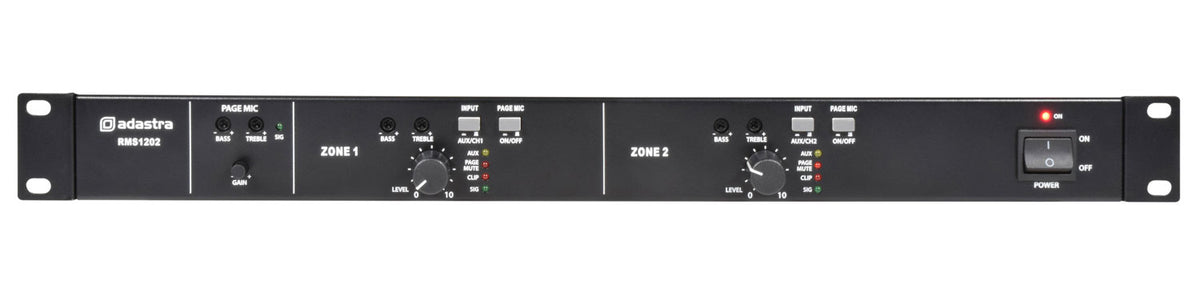

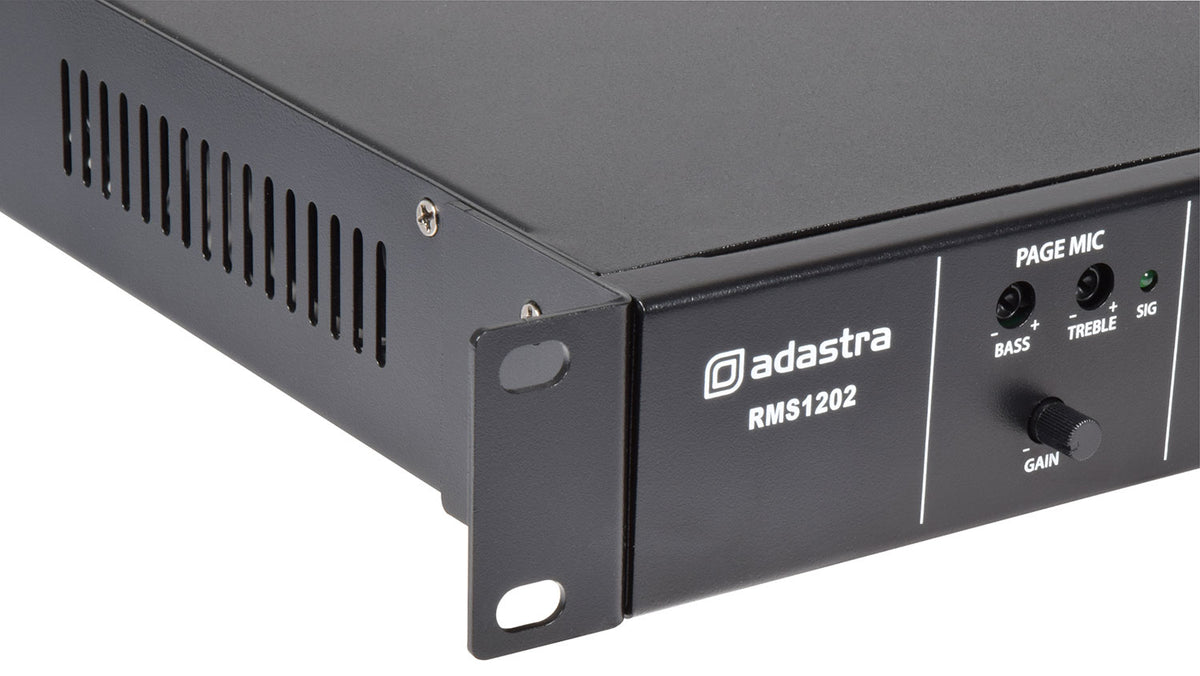

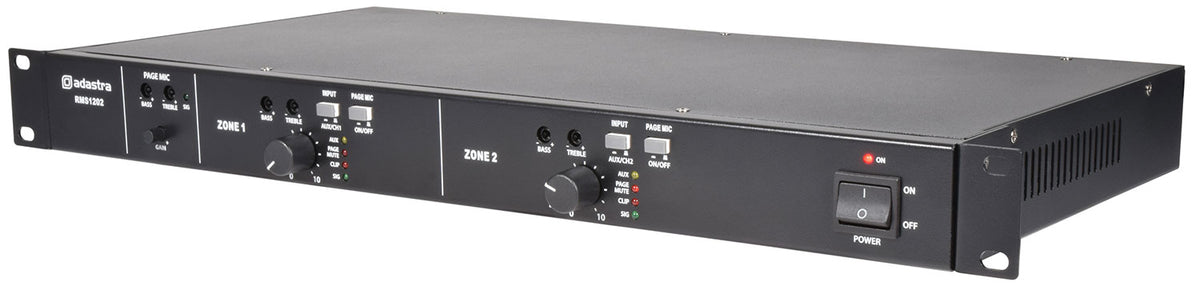

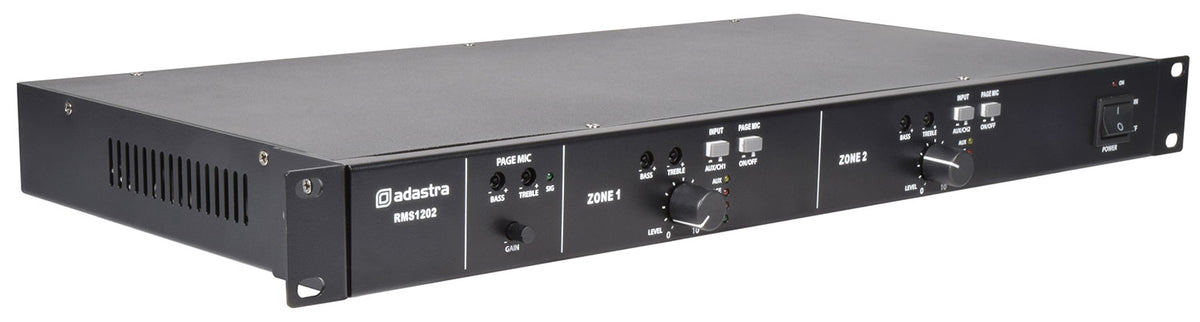

RMS-series Multi Zone 100V Amplifiers

Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

Features

Outputs for 100V or 4-16 Ohm speakers
Separate channel inputs and optional global aux input
Paging microphone input with vox override
Independent high efficiency class-D amplifiers
Switchable +20V phantom power for paging microphone
24V contacts for emergency muting

Specifications

Power supply — 170-264Vac, 50/60Hz (IEC)

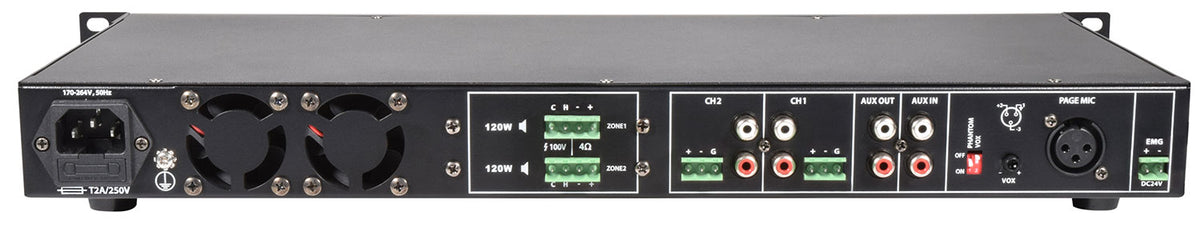

Input : aux — L+R RCA
Mic controls — Gain, Bass, Treble & Vox (rear panel)
Output controls — Level, Bass, Treble & Ch/Aux switch
Input : mic — Balanced XLR (rear panel)
Phantom power — +20V switchable (paging mic)
Emergency control — 24V mute contacts (Euroblock terminal)
