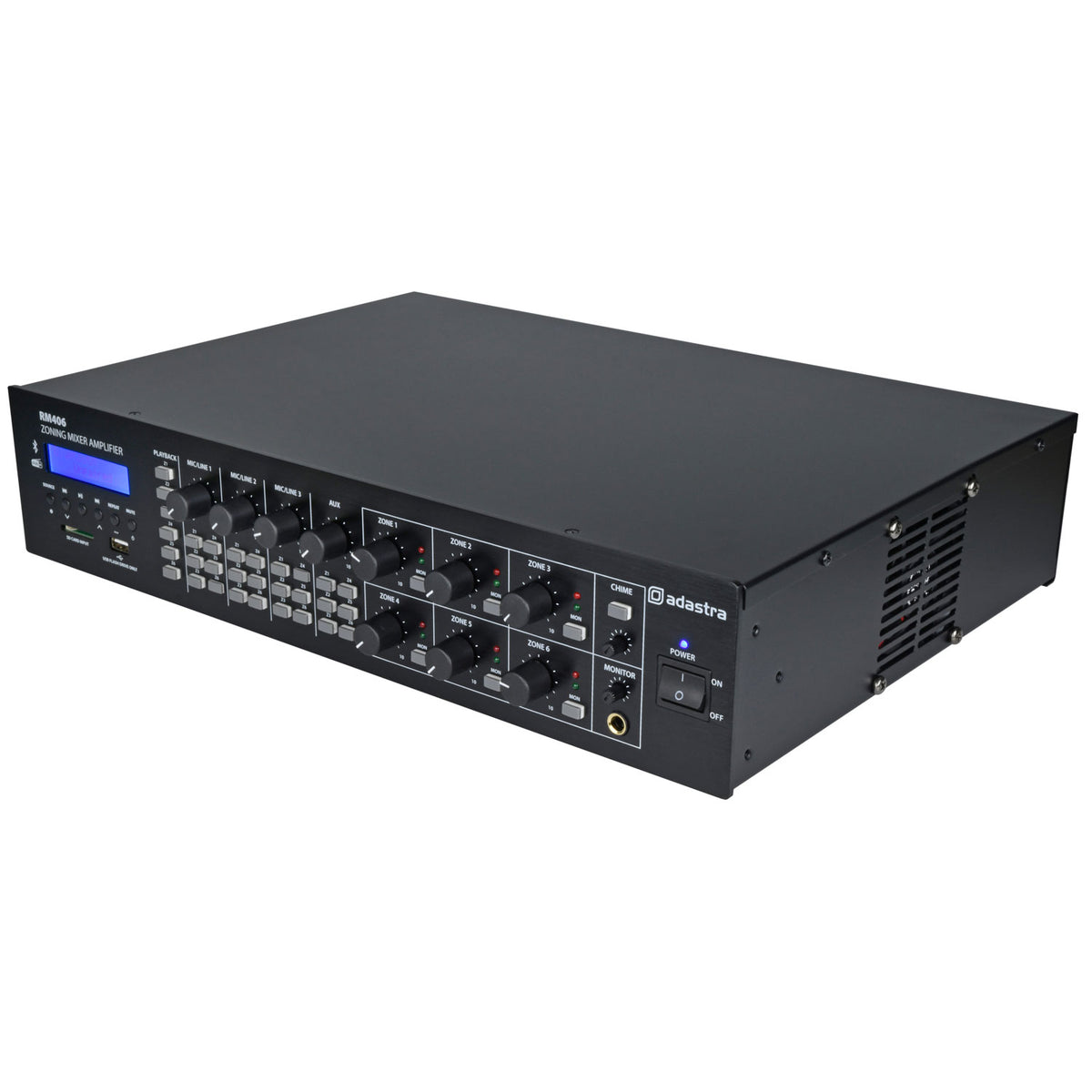

RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth

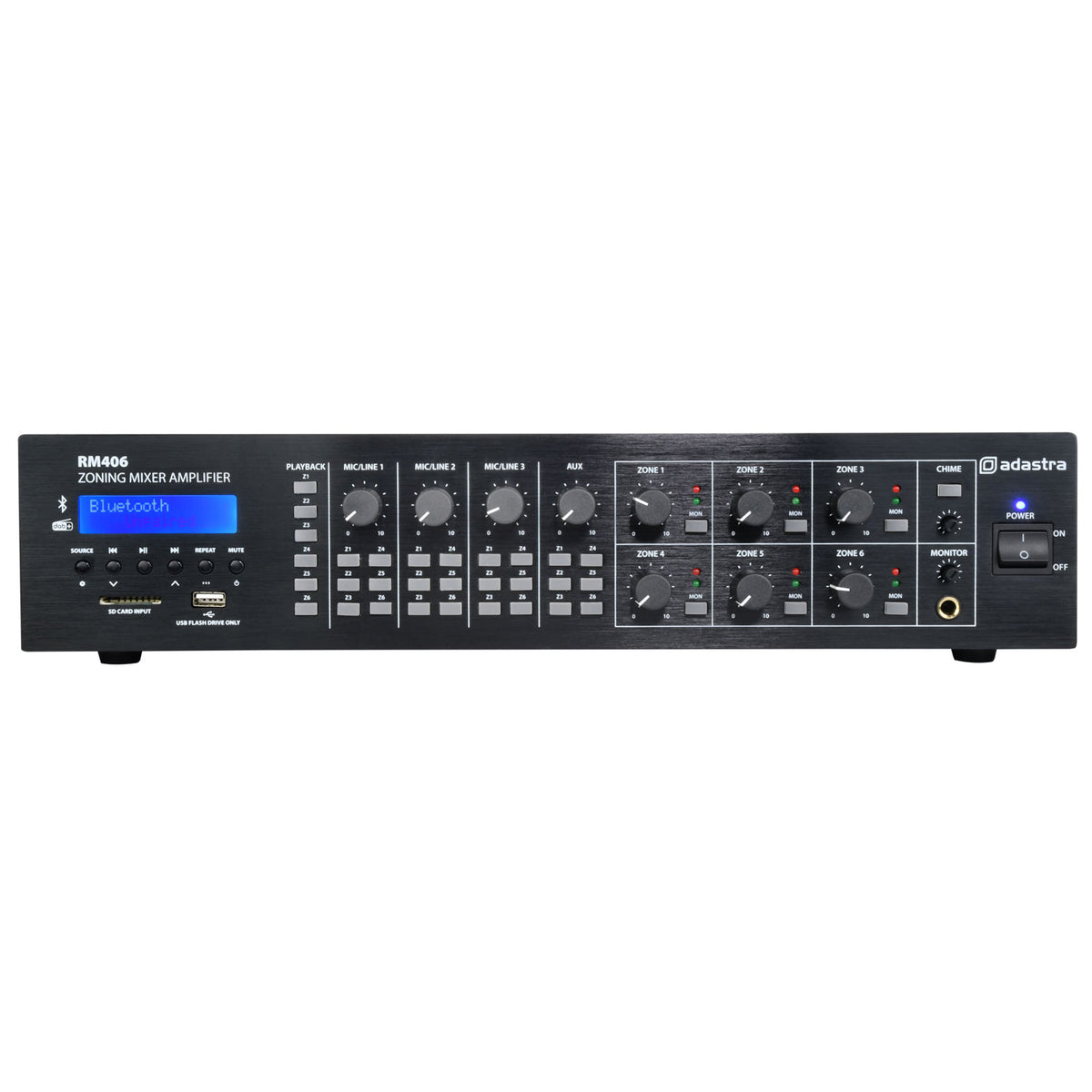

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

Features

Integral USB/SD/FM audio player
100V or 4/8 Ohms operation
6 independent output zones
3 mic/line and 1 auxiliary input
Mic priority and chime functions
Switchable +20V phantom power
24V mute contacts
Monitor headphones output

Specifications

Power supply — 170-264Vac, 50Hz (IEC)
Output power RMS — 6 x 40W
Audio source — USB/SD/FM/BT audio player
Amplifier construction — Class D + transformer outputs

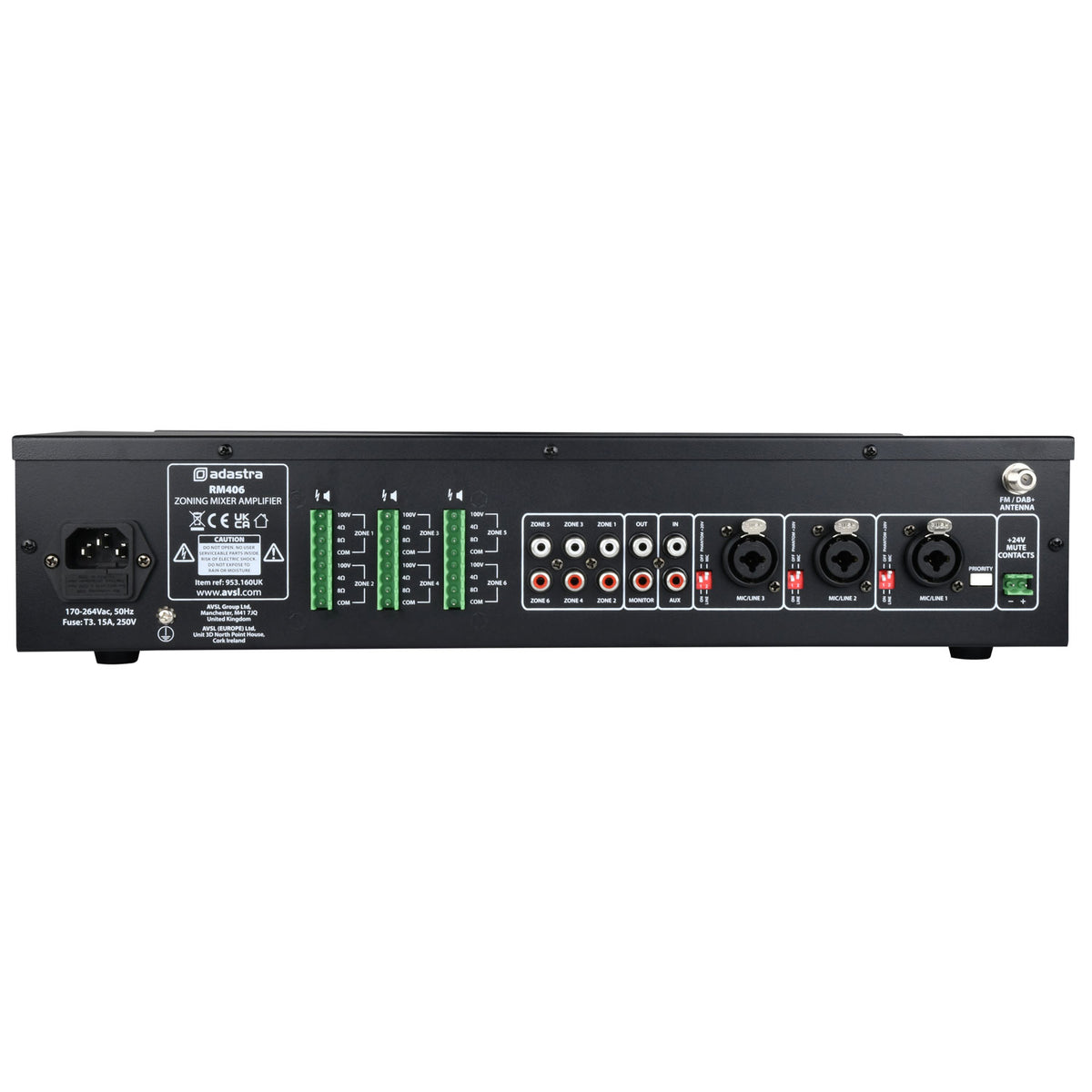

Inputs — 3 x mic/line (XLR/jack), auxiliary 2 x RCA
Zone outputs : line — 6 x RCA (mono)
Zone outputs : speaker — 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
Phantom power — +20V switchable to each XLR
Monitor outputs — 6.3mm stereo phones, 2 x RCA line
Mute — +24V relay contacts
THD — <0.76% @ 1kHz
Input impedance — 1k Ohms (mic/line)
Input sensitivity — -11dB (line), -46dB (mic)
SNR — 84dB (line), 82dB (mic)
Bluetooth version — 5.0
Frequency response — 100Hz - 24kHz
Dimensions — 433 x 89 x 302mm
Weight — 11kg
