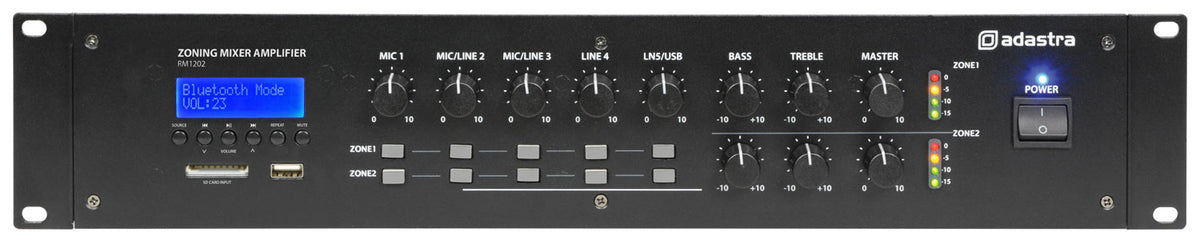

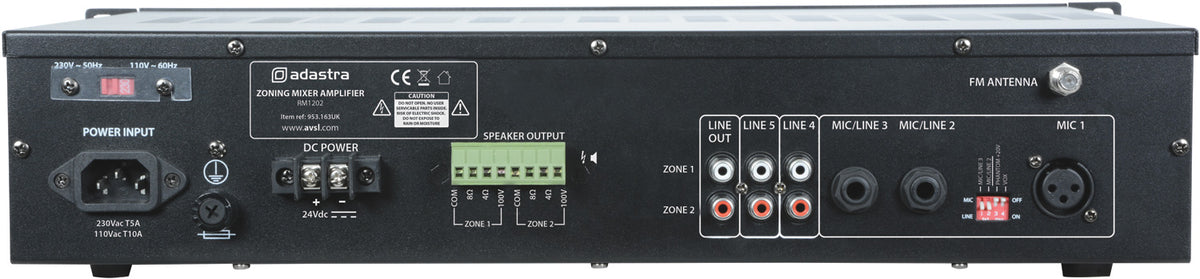

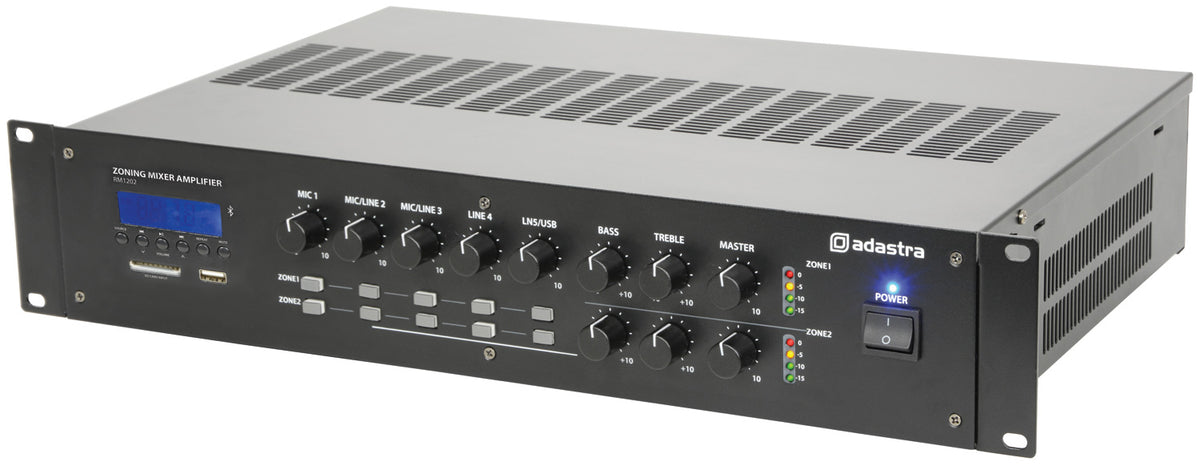

2-zone Mixer-amplifier + USB/SD/FM/Bluetooth

Mixer-amplifier with 2 separate 120W outputs to 100V or 4/8 Ohms speakers. Inputs for mic, 2 x mic/line and 2 line inputs with an integral USB/SD/FM player and Bluetooth receiver can be enabled independently to either of the 2 zones. Mic 1 channel has a variable override and switchable phantom power for use with condenser microphones. Designed for installations where independent paging and audio to 2 separate zones is needed.

Features

Can be configured as a stereo 100V amplifier
Integral USB/SD/FM audio player
Bluetooth with programmable ID
100V or 4/8 Ohms operation
5 input channels
Switchable +20V phantom power
Switchable priority for channel 1

Specifications

Power supply — 110-230Vac, 50/60Hz (IEC)
Power : output — 2 x 120W rms
Audio source — USB/SD/FM/BT audio player
Inputs — 1 x mic (XLR), 2 x mic/line (jack), 2 x line (twin RCA)
Zone outputs : line — 2 x RCA
Zone outputs : speaker — 2 x terminal outputs 100V/8 Ohms/4 Ohms/com
Phantom power — +20V switchable to Mic.1 XLR
THD — <0.76% @ 1kHz
Input impedance — 1k Ohms (mic/line)
SNR — 84dB (line), 82dB (mic)
Bluetooth version — 5.0
Input sensitivity — -11dB (line), -46dB (mic)
Frequency response — 100Hz - 20kHz
Dimensions — 483 x 320 x 88mm
Weight — 11.24kg
