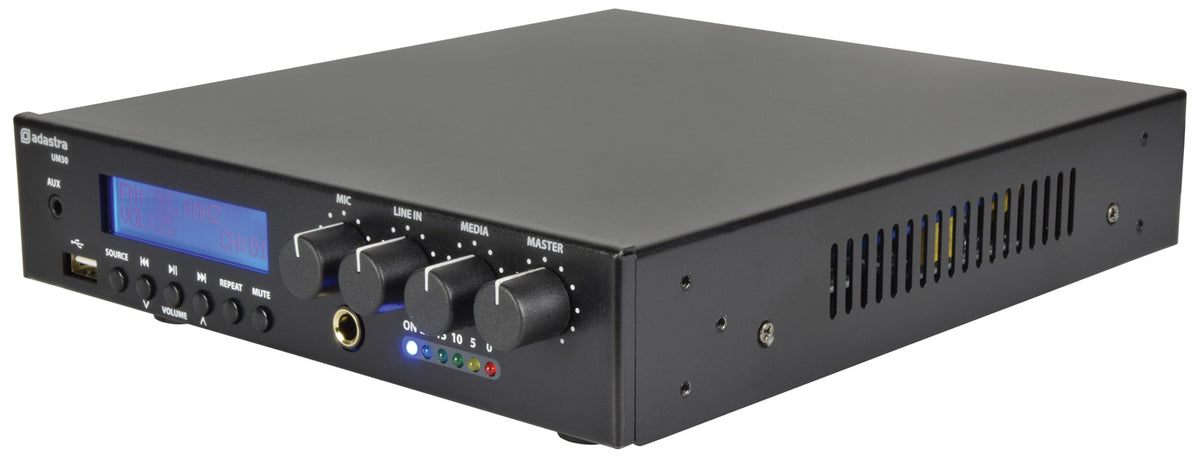

UM Series Ultra Compact Mixer-Amplifiers 100V

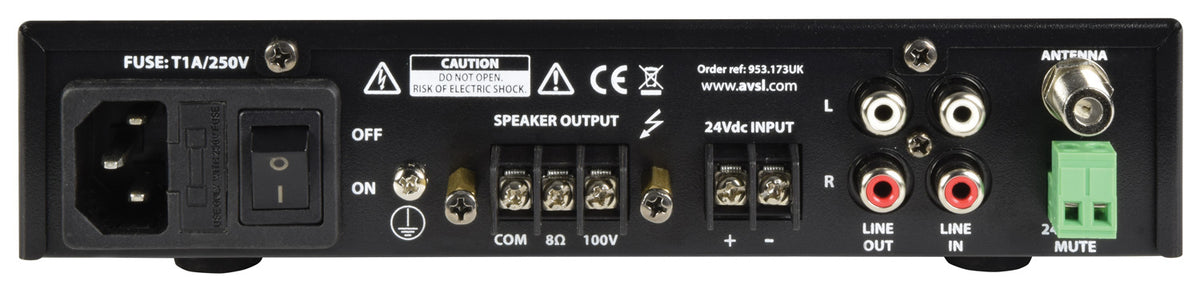

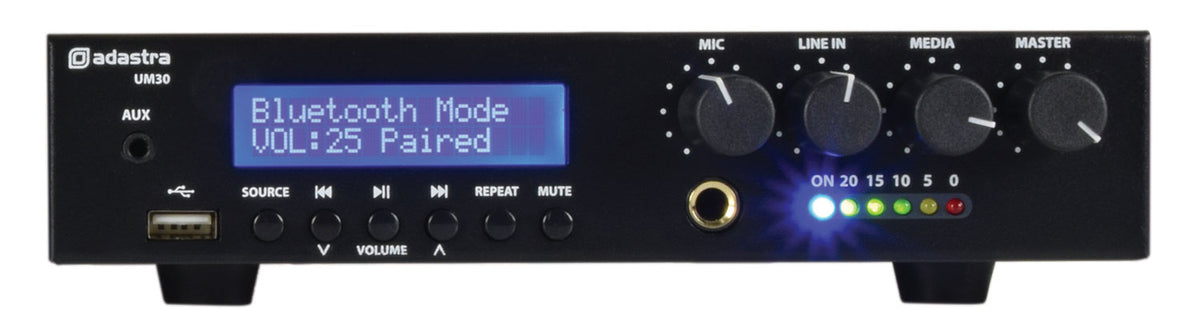

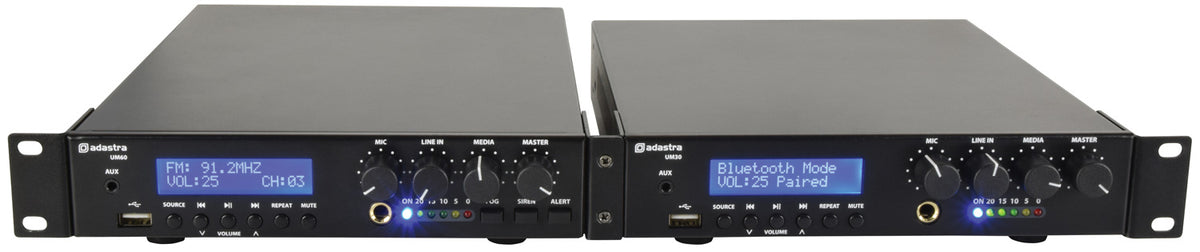

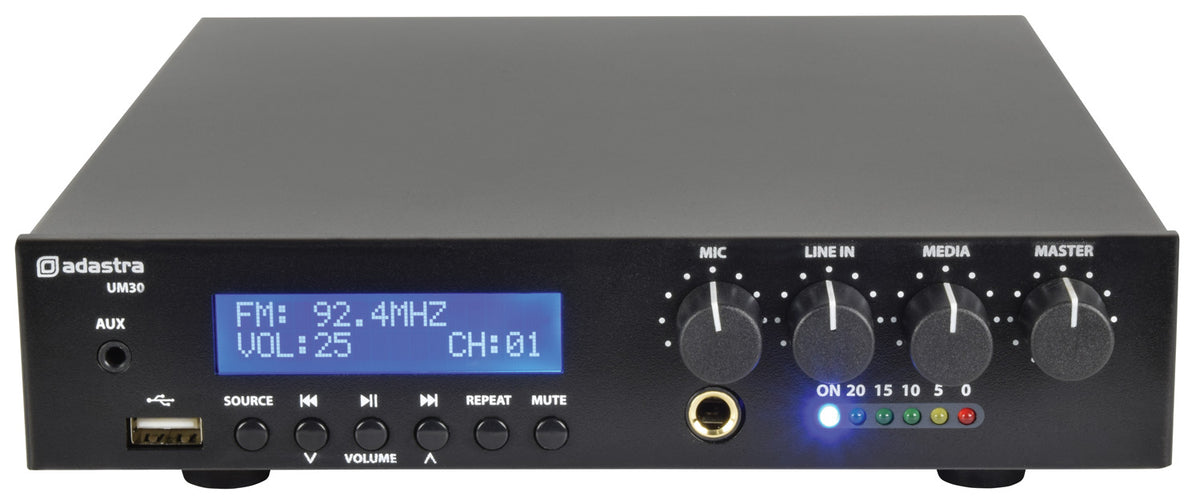

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

Features

Ultra compact form factor
Efficient class D amplifier design
Internal USB/FM/BT audio player
100V line or 8 Ohms operation
Bluetooth with programmable ID

Specifications

Power supply — 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier construction — Class D + transformer output
Audio source — Internal USB/FM/BT player
Inputs — 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output — 2 x RCA (mono)
Speaker outputs — Screw terminals - 100V / 8 Ohms / Com
DC power — 24Vdc screw terminals
Mute — 24V relay contacts
THD — <0.4% @ 1kHz
Input impedance — 1k Ohms (mic/line)
Input sensitivity — -10dB (line), -45dB (mic)
SNR — 80dB (line), 75dB (mic)
Frequency response — 100Hz - 18kHz
Bluetooth version — 5.0
