UA Series Compact 100V Mixer-Amplifiers

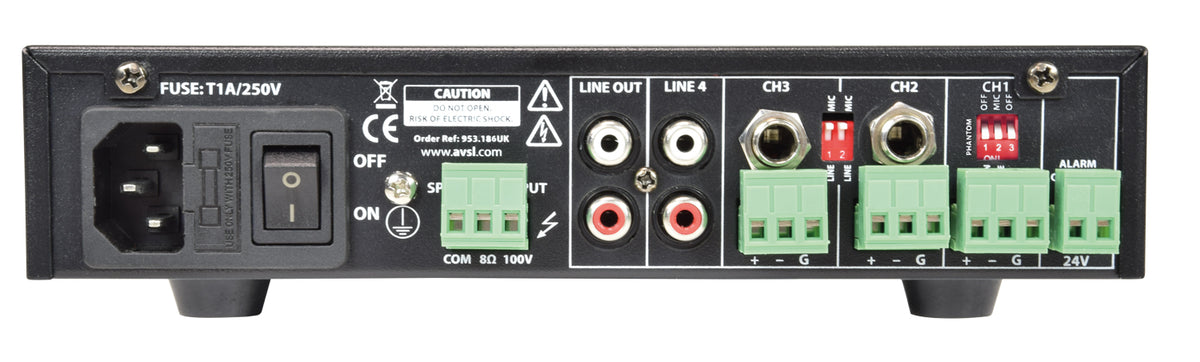

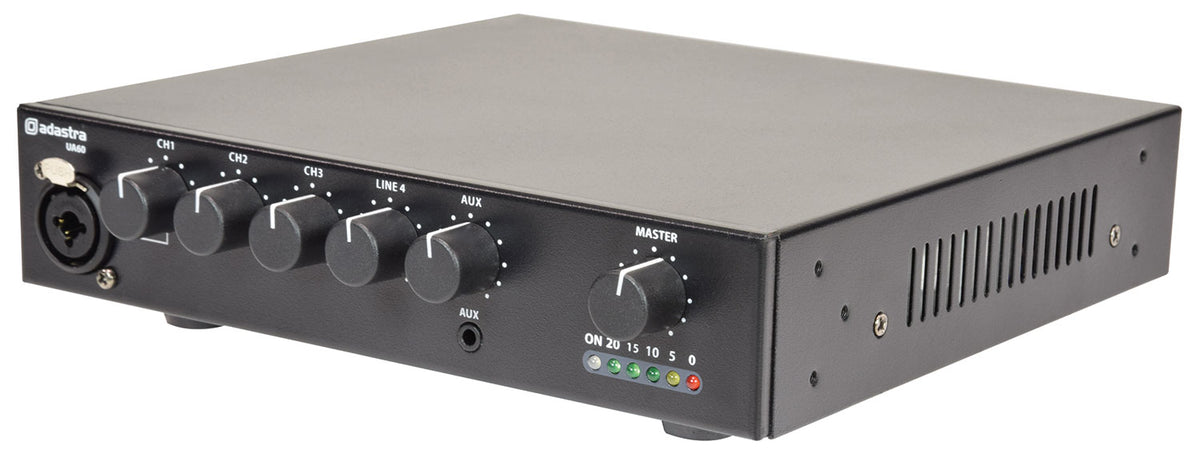

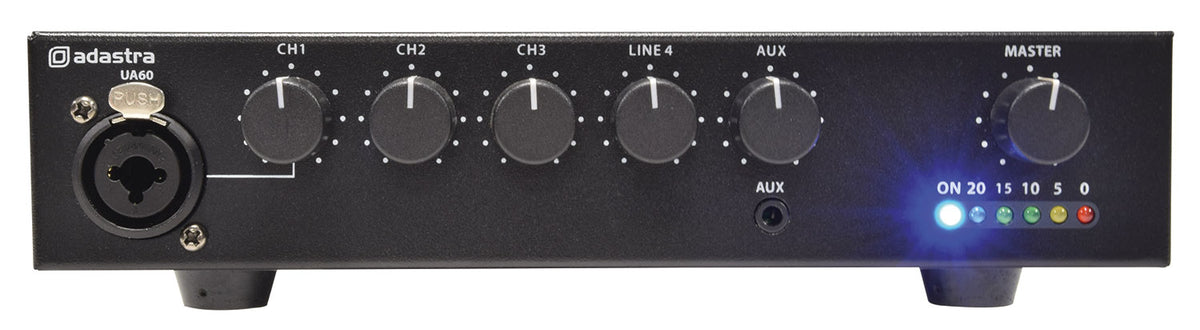

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

Features

24V fire alarm mute contacts
Supplied with hardware for rack-mounting 2 units
5 input channels
100V line or low impedance operation
Switchable +20V phantom power CH1
Global 2-band EQ on 120W and 240W models

Specifications

Amplifier construction — Class D + transformer output
Inputs — Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Line output — 2 x RCA (mono)
Speaker output — Euroblock terminals: 100V / 8 ohms or 2 ohms / Com
Mute — 24V relay contacts
THD — <0.4% @ 1kHz
Input impedance — 1k ohms (mic/line)
Input sensitivity — -10dB (line), -45dB (mic)
SNR — 80dB (line), 75dB (mic)
Frequency response — 100Hz - 18kHz
Phantom power — +20V CH1 (XLR or rear terminals)
