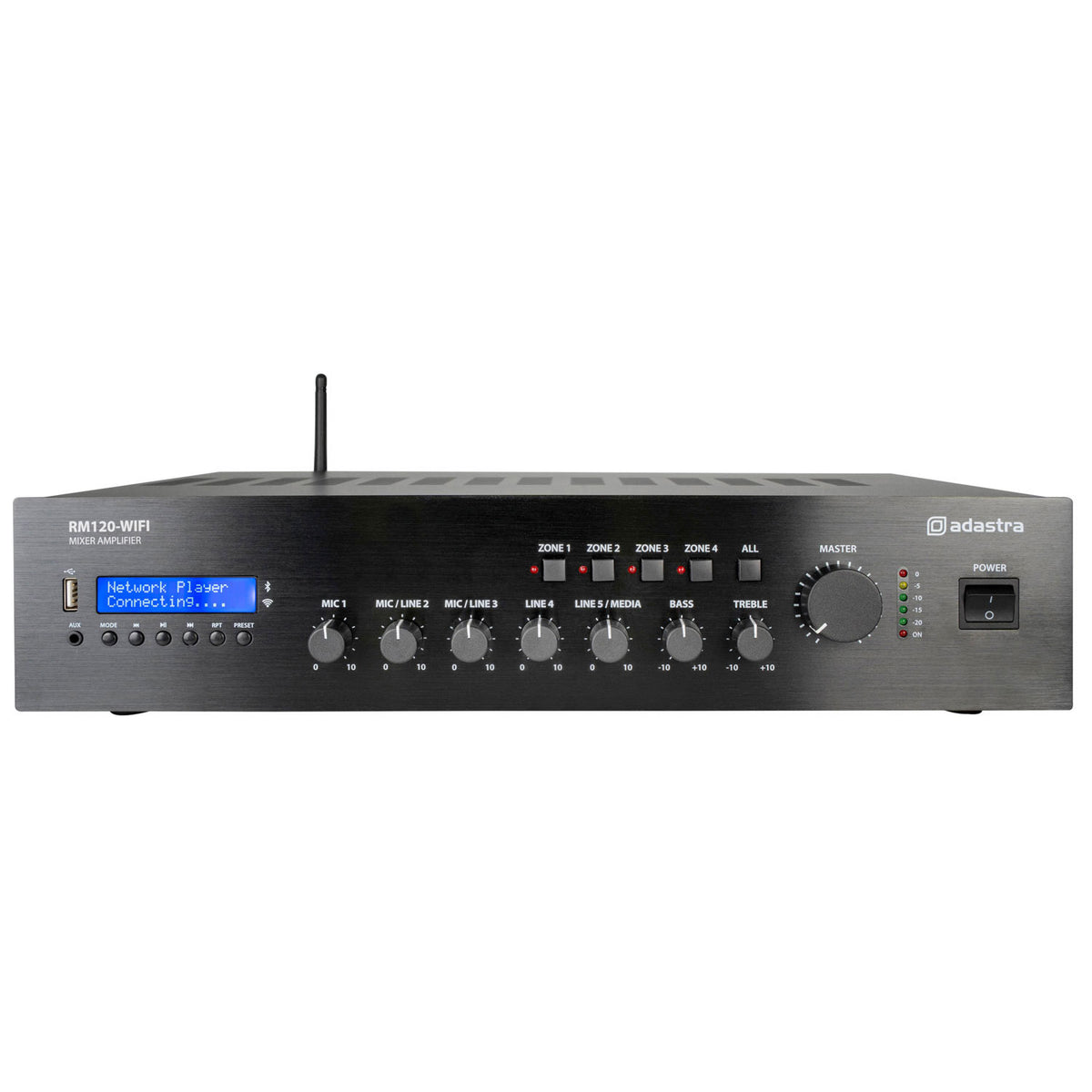

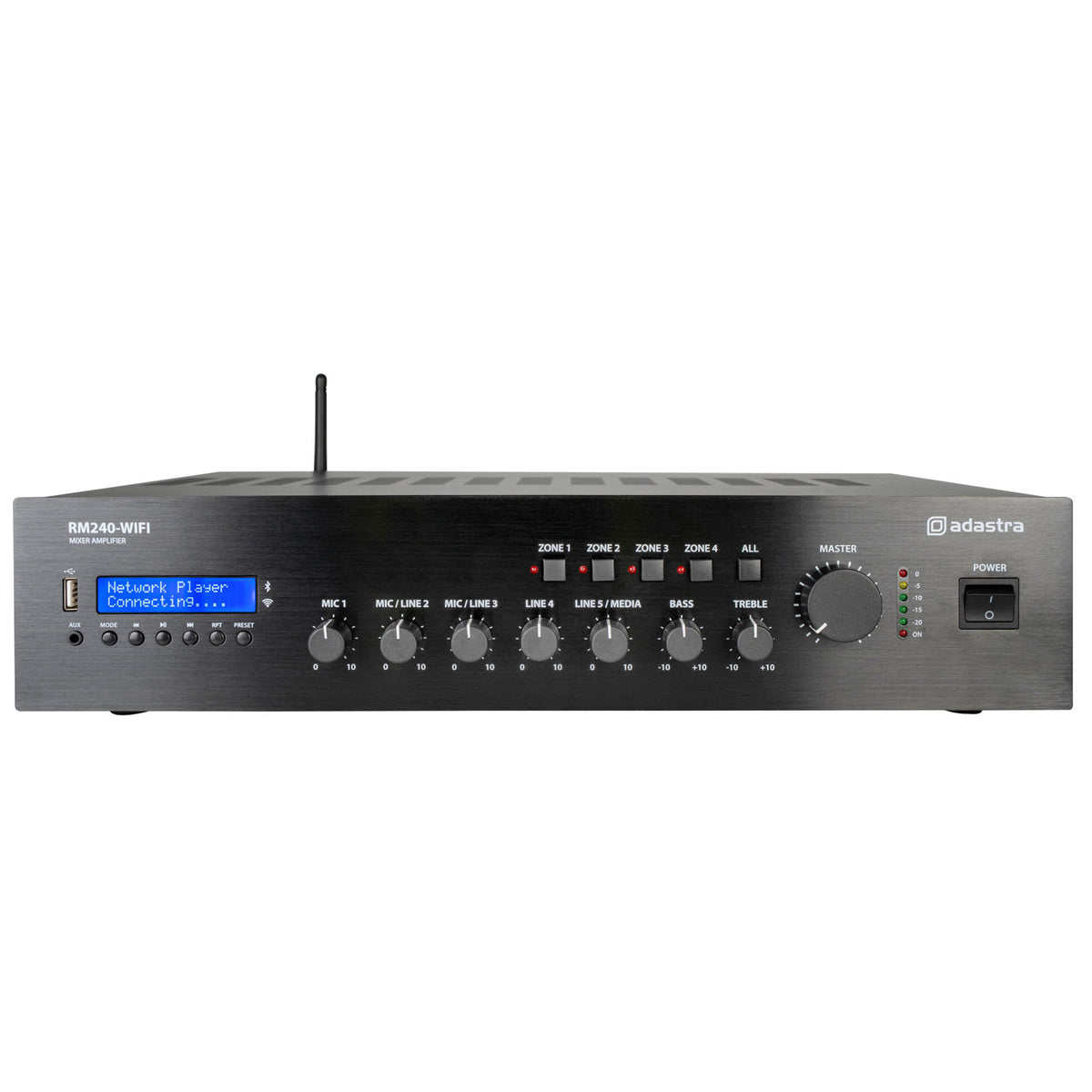

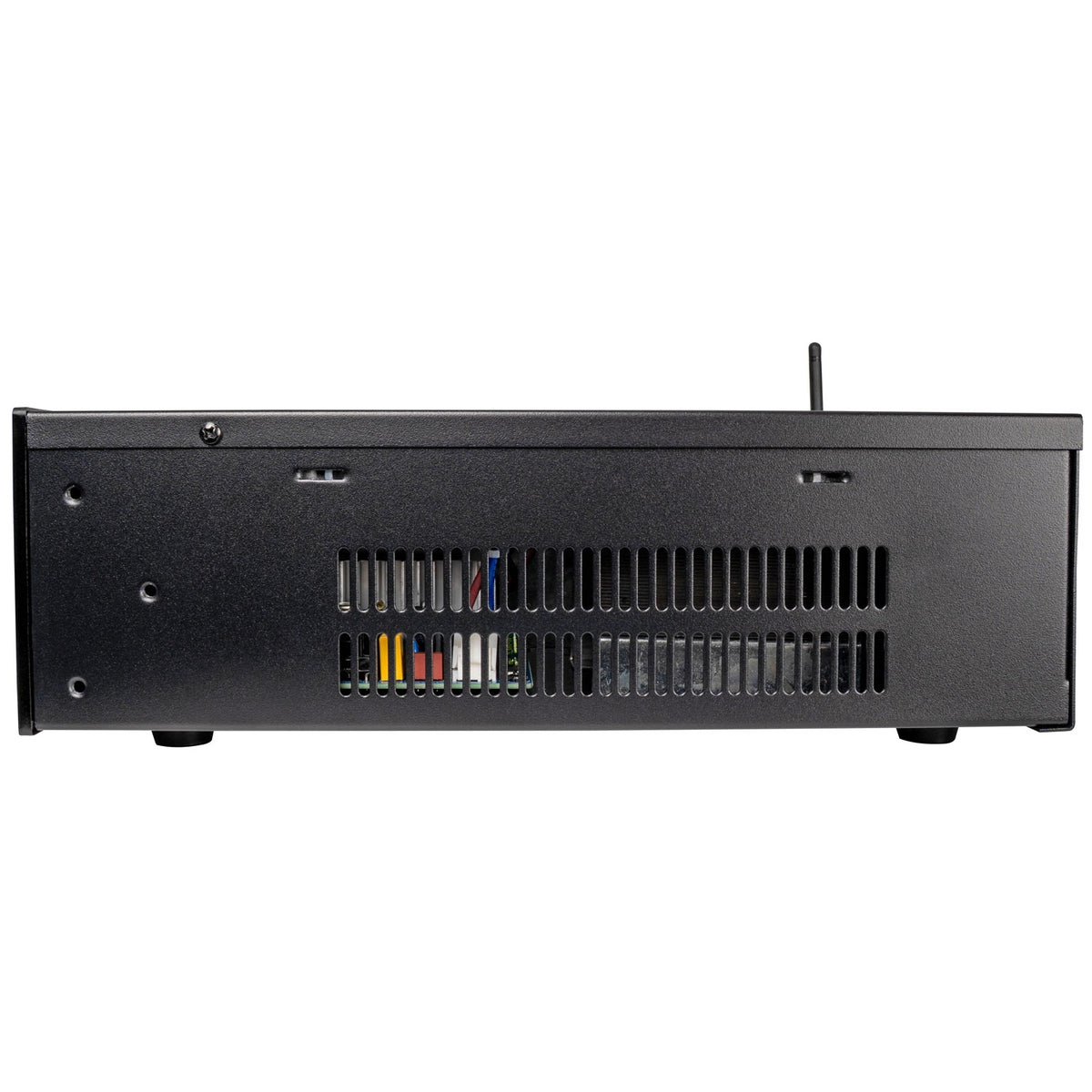

RM-series 100V Mixer-Amplifier with WiFi

5-channel 19" rack-mountable mixer-amplifier, designed for commercial sound installations to power 100V line speakers or standard low impedance speakers. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. A built-in audio player section can play mp3 files from a USB or stream audio wirelessly from Bluetooth®. A main feature of the RM-WIFI models is the ability to connect to a wired or wireless network for streaming audio from internet radio, playback services or even from a local NAS drive. Setup and control for this function is entirely via the WiiM Home­­ smart phone app with a choice of streaming services embedded. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

Features

Internet radio or audio streaming from WiFi or LAN connection
USB player and Bluetooth receiver
4 switchable 100V outputs and 1 unswitched output
Optional 4-16 Ohm output
XLR input with switchable +20V phantom power
2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
Free WiiM Home Player app for Android or iOS

Specifications

Power supply — 170-264Vac, 50Hz (IEC)
DC power — 24Vdc (screw terminals)
Inputs — Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) — -53dBV
Input impedance : mic 1 — 5k Ohms
Input sensitivity : line (unbalanced) — -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 — 1k Ohms
Line output — RCA
Speaker outputs — 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
Bluetooth version — 5.0
Controls — Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass — 100Hz ±10dB
Equaliser : treble — 10kHz ±10dB
Rear panel switches — Phantom, Vox, Mic/Line (2 + 3)
Phantom power — +20V (mic 1 XLR, switchable)
Audio source — Network audio, USB player, Bluetooth receiver
Emergency control — 24V contacts - mute all except Mic.1 when triggered
THD — <1.0%
Dimensions — 433 x 320 x 88mm
Network connection — RJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
Remote control — via WiiM Home app f
