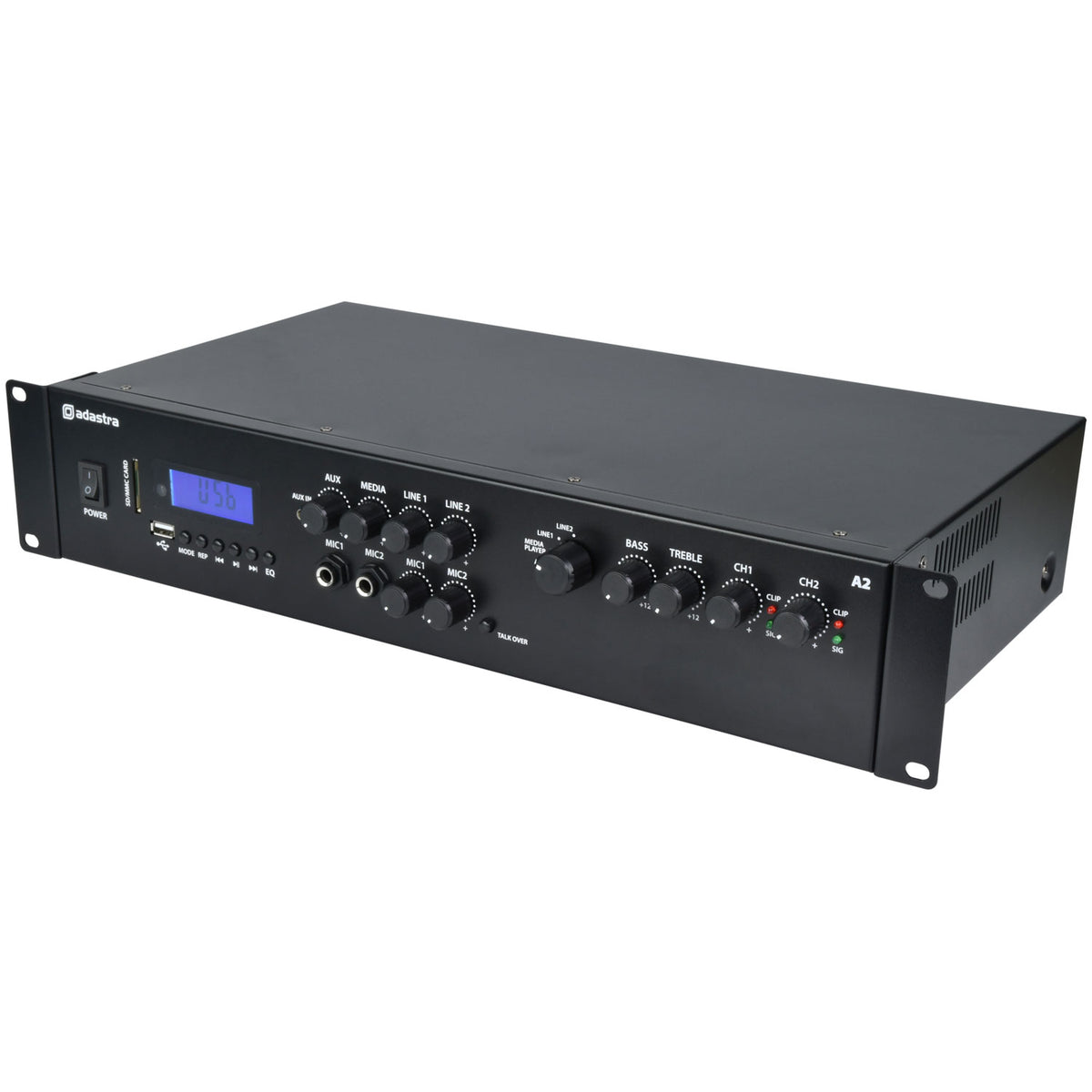

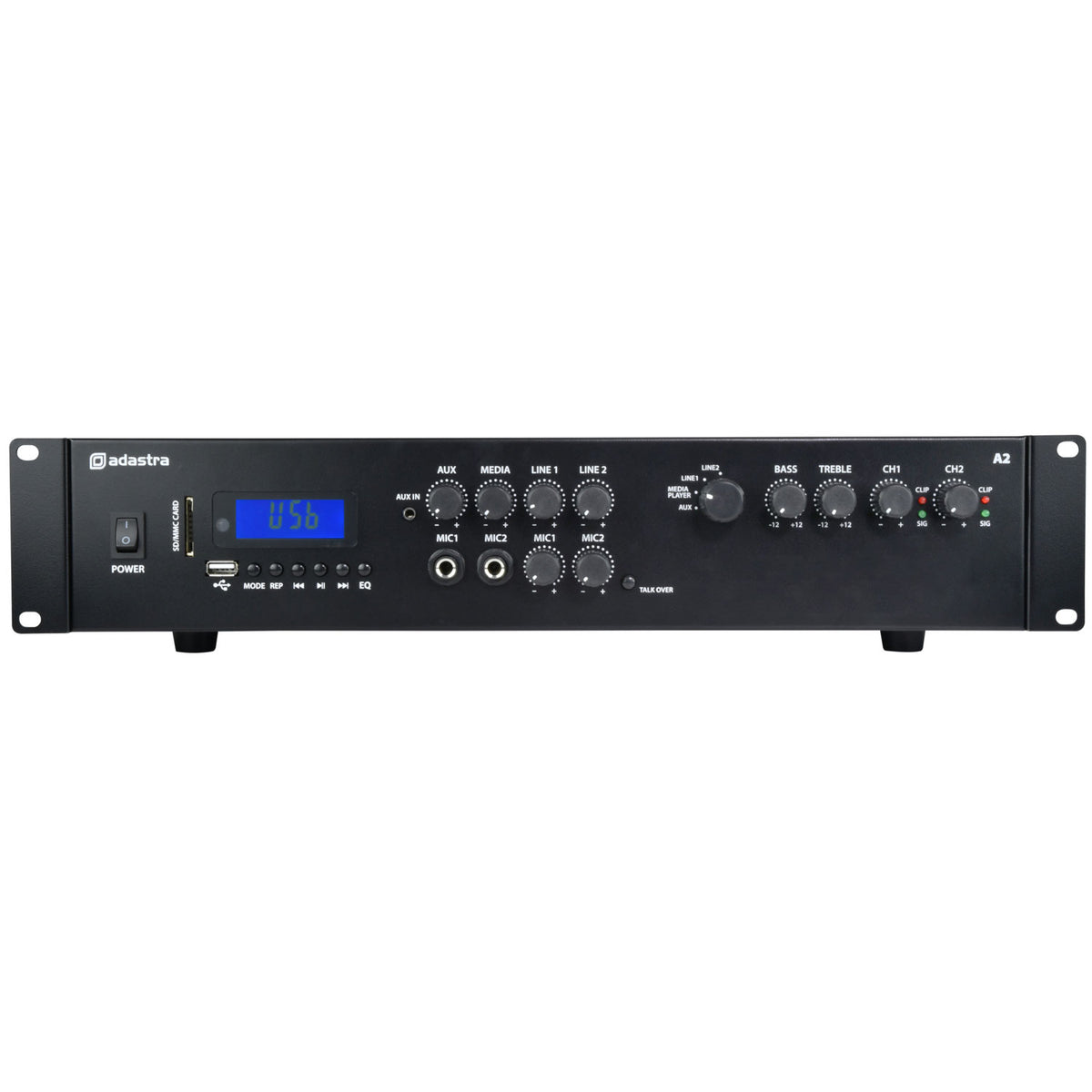

A2 Stereo PA Amplifier 2 x 200W

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W. Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.

Features

Media player with USB/SD playback
FM radio tuner with external aerial connection
Bluetooth receiver

Specifications

Power supply — 230Vac, 50Hz (IEC)
Output power @ 8 ohms — 2 x 100W RMS
Output power @ 4 ohms — 2 x 200W RMS
Amplifier construction — Class D
Input : mic — 2 x 6.3mm jack (mono)
Input : aux — 3.5mm stereo jack
Input : line — Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
Audio source — USB/SD mp3 playback, FM tuner, BT receiver
Protection — Thermal, over-current, over-voltage, short-circuit

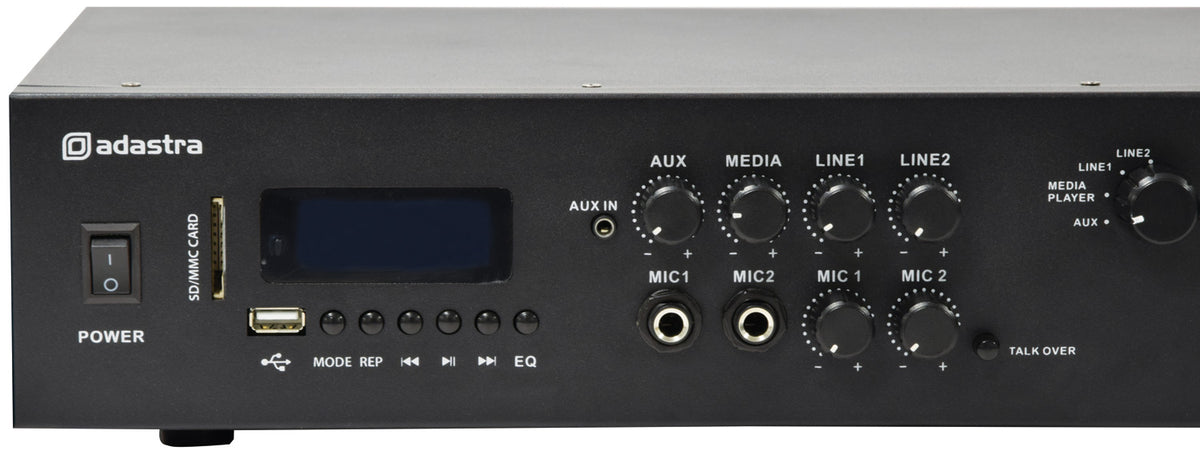

Output controls — Source select, Bass, Treble, Ch1, Ch2
Input controls — Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Fuse — F5A, 250V

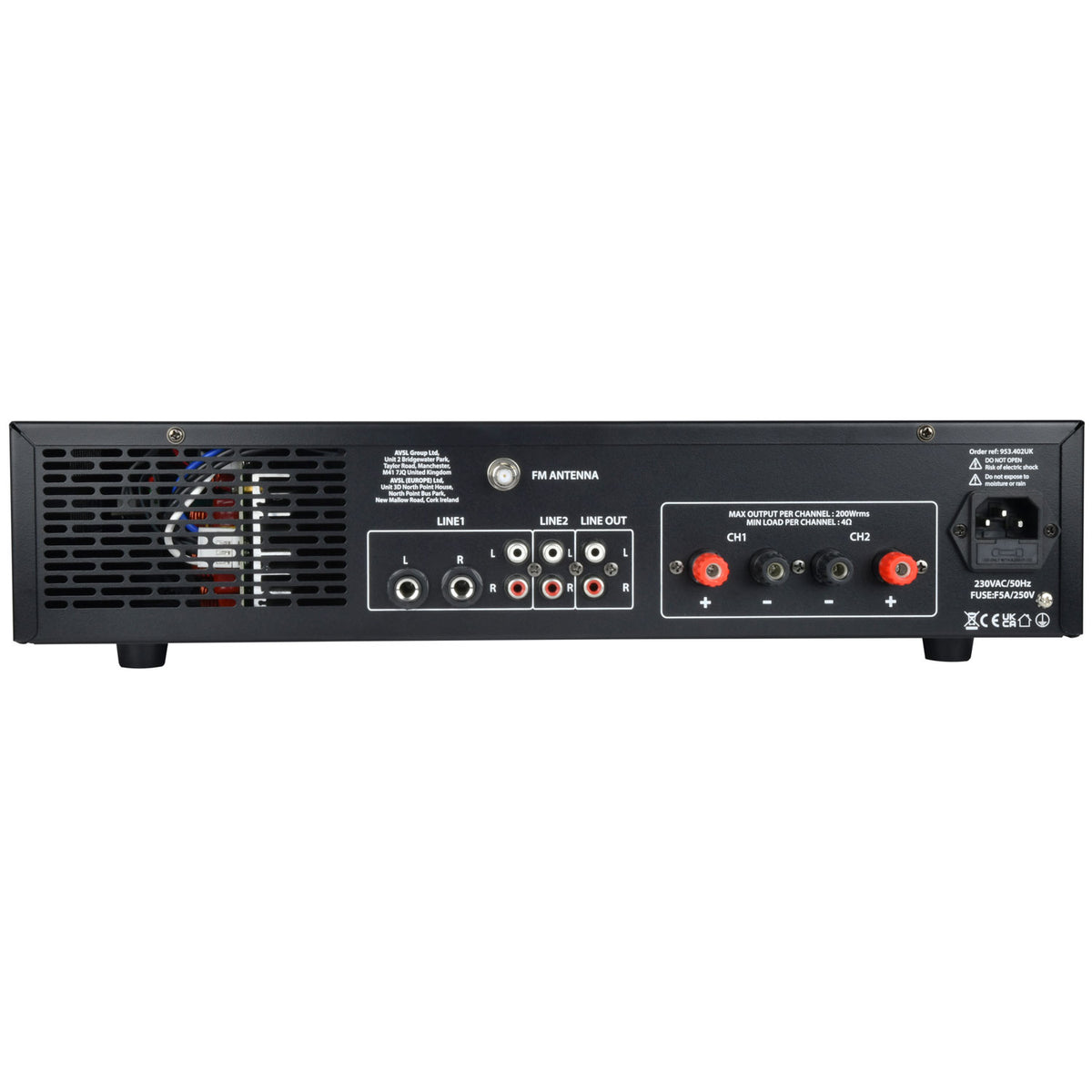

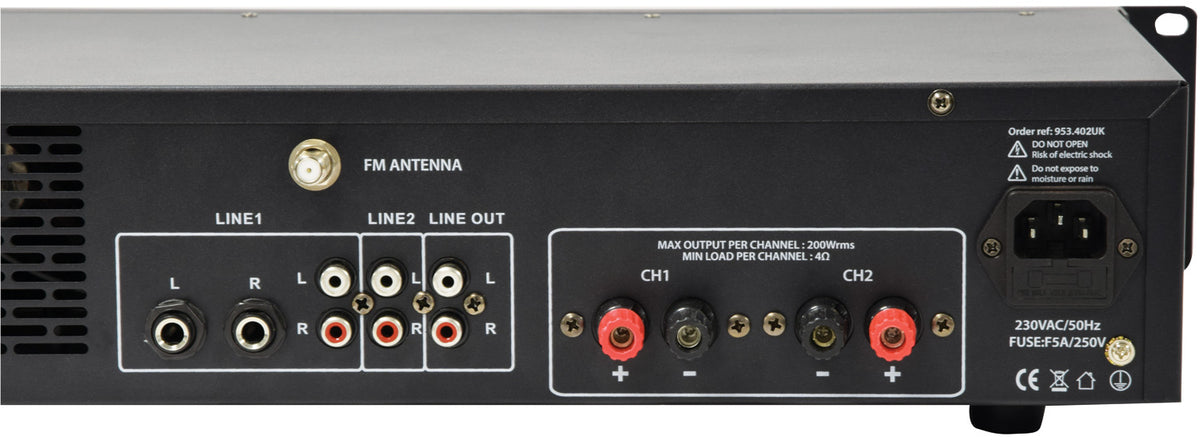

Speaker outputs — 4mm binding posts (2 channels)
Line output — 2 x RCA
Dimensions — 482 x 260 x 88mm
Weight — 5.21kg
Antenna connection — F type (FM tuner)
Frequency response — 20Hz - 20kHz ±0.5dB
Input sensitivity : aux — 0.480Vrms
Input sensitivity : line — 0.775Vrms
THD +N — <0.1%
Input impedance — 20k Ohms (balanced), 10k Ohms (unbalanced)
Dynamic range — 92dB
Bluetooth
