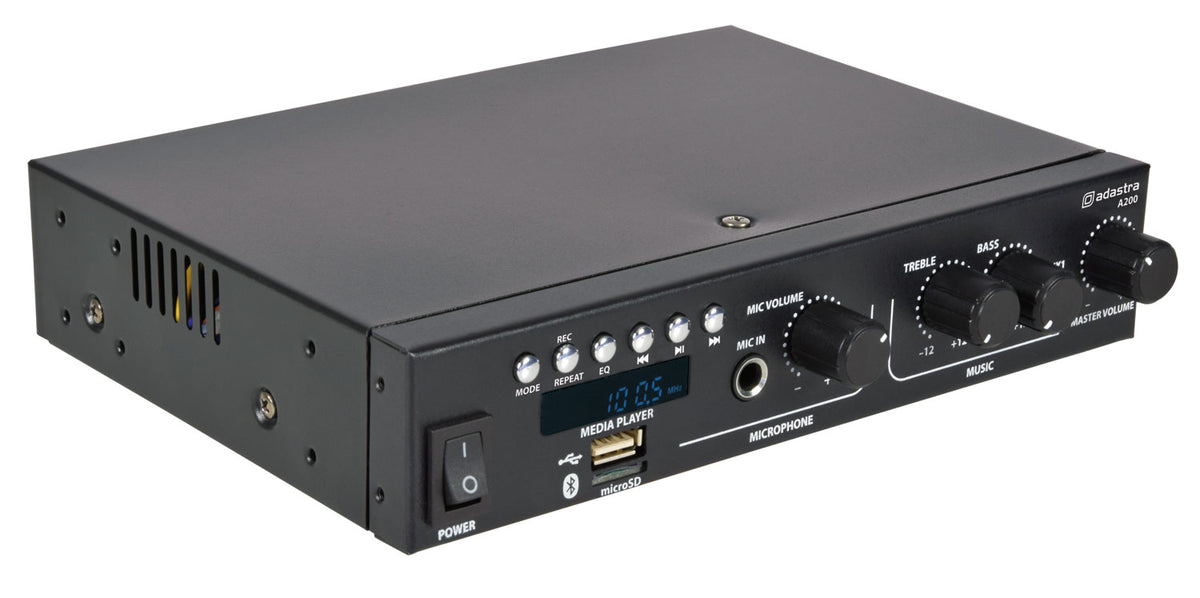

A200 Stereo PA Amplifier

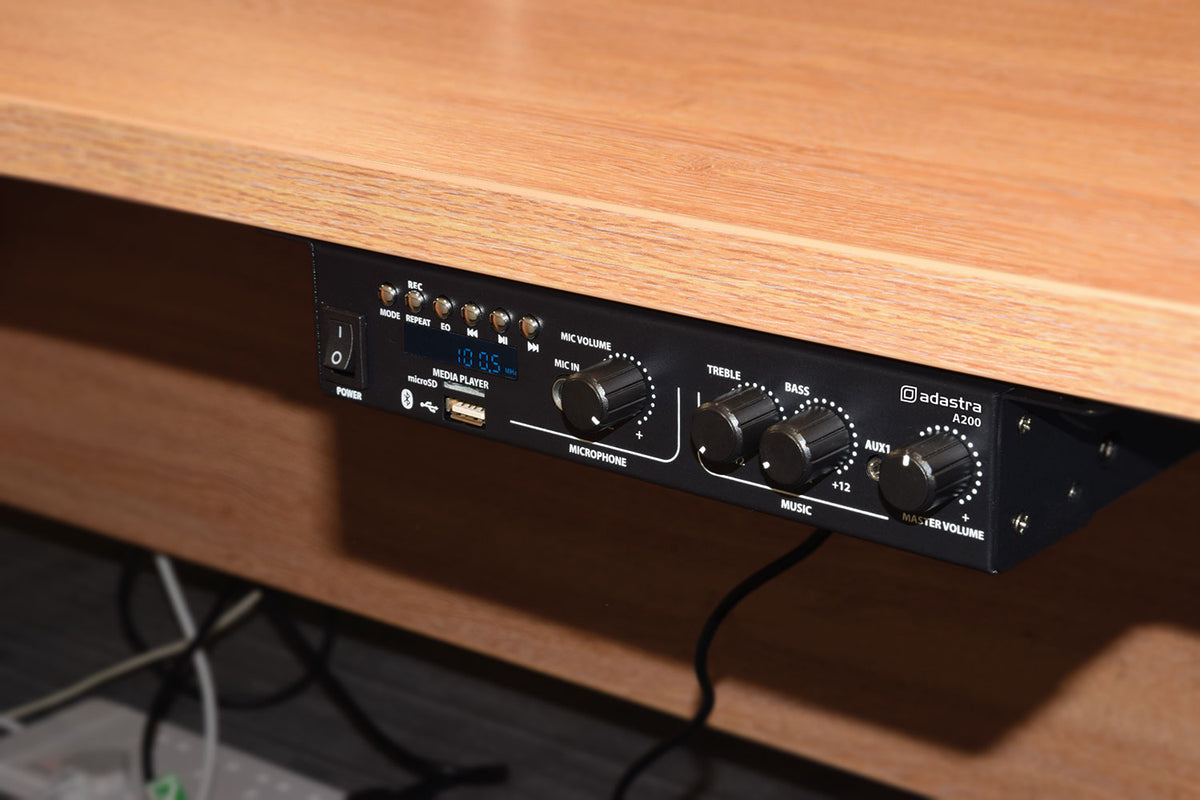

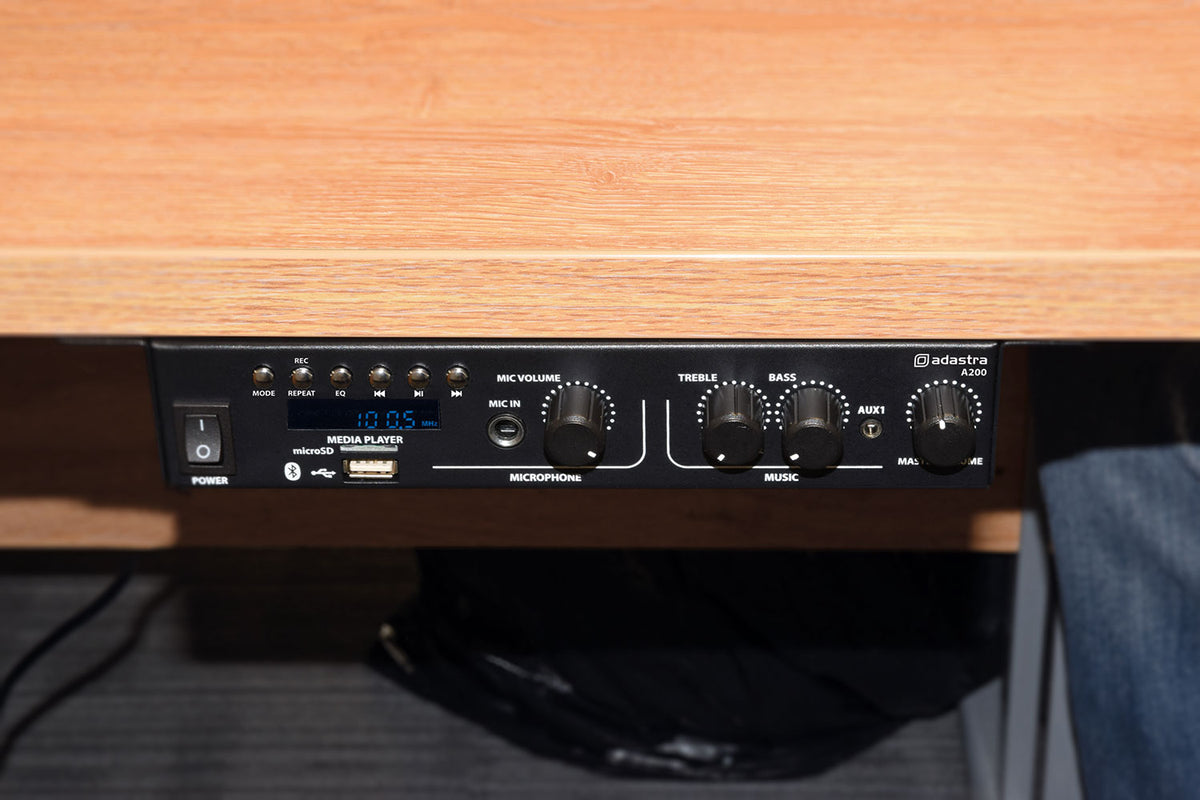

Digital stereo PA amplifier with integral media player and a class-D amplifier section delivering up to 2 x 100W max. output for background music with a microphone input for announcements or alerts. The media player section can select between USB / microSD mp3 player, FM tuner, Bluetooth receiver, 2 stereo line inputs (rear panel RCA) and another line input on the front panel (3.5mm). Playback can be controlled from the front panel or by the supplied I.R. remote control. Four mounting brackets are provided, so that two A200 units may be mounted side-by-side into a 1U rack space, which can serve smaller peripheral zones in a larger PA installation. Combine with 2 or 4 speaker units for a truly space-saving sound system with comprehensive and easy-to-use functions. The A200 can deliver power that belies its compact dimensions, capable of powering larger background speakers up to medium-sized PA speakers.

Features

2 x 100W output at 4 Ohms
Bluetooth Receiver
USB/microSD audio player + FM tuner
Supplied with I.R. remote control
Supplied with 4 mounting brackets
Microphone input with separate volume control
Supplied with a UK to C13 power lead

Specifications

Power supply — 230Vac, 50Hz (IEC)
Load impedance — 4-8 ohms (each channel)
Output power @ 8 ohms — 2 x 35W RMS / 2 x 55W class-D (@ 1kHz 10% THD)
Output power @ 4 ohms — 2 x 55W RMS / 2 x 100W max. (@ 1kHz 10% THD)

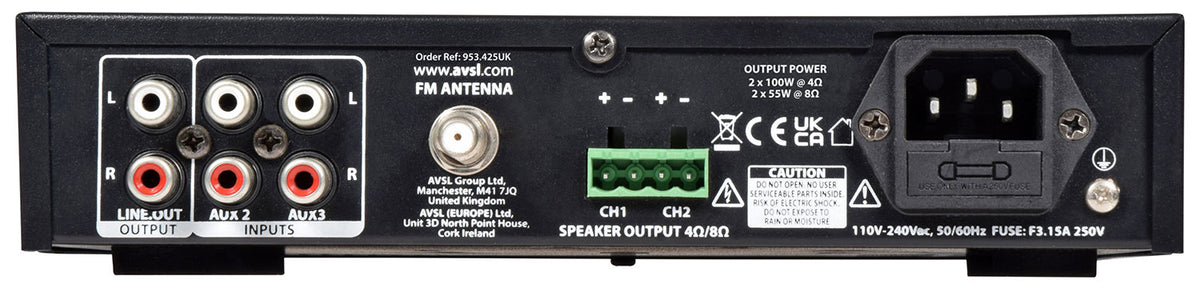

Inputs : Line — Aux 1 (3.5mm), Aux 2 (L+R RCA), Aux 3 (L+R RCA)
Input : mic — 6.3mm jack

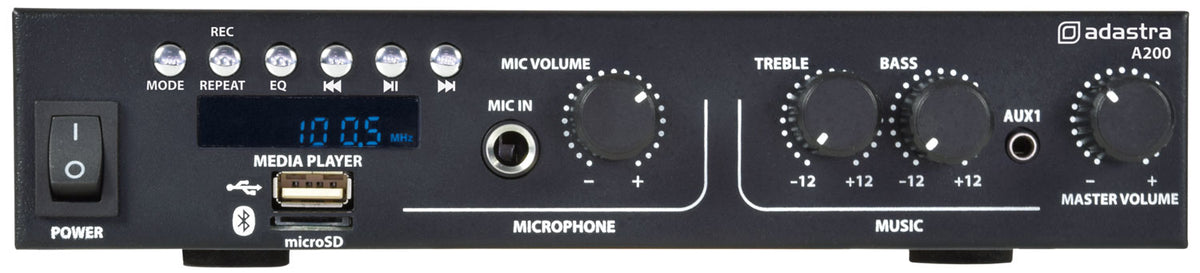

Controls — Mic Volume, Treble, Bass, Music Volume
Audio source — USB/microSD player, FM tuner, Bluetooth
Antenna connection — F-type (FM tuner)
Dimensions — 215 x 180 x 43mm
Weight — 1.015kg
