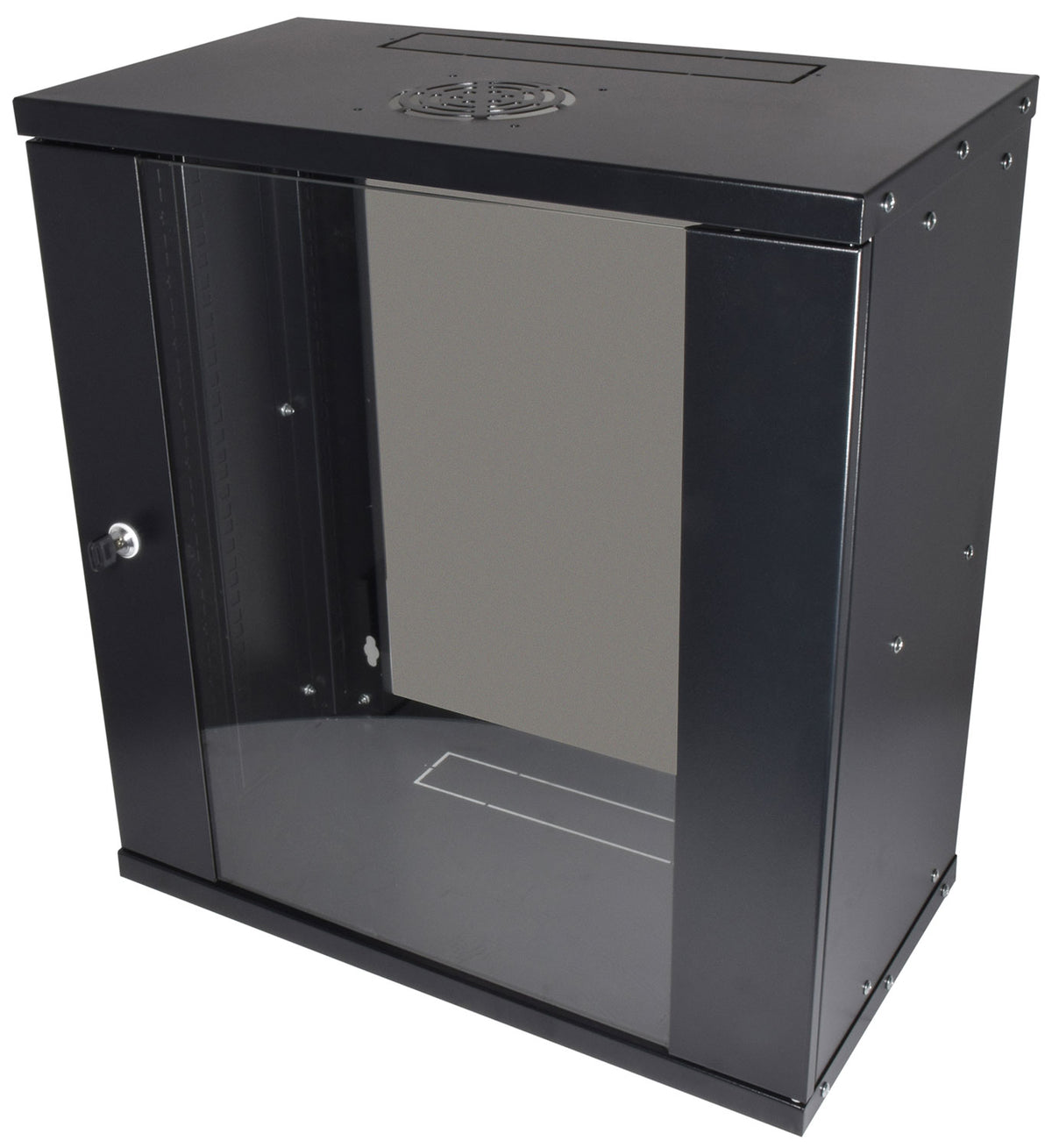

Shallow Rack Wall Cabinets

Wall mountable powder-coated steel cabinets for rack-mounting 19" equipment in light duy applications. A choice of 2 mounting positions for the front rack-mounting rails can accommodate a mounting depth of up to 280mm, or a shallower 220mm depth with space for protruding connectors in front. A glass window front door can be hinged either side and is fitted with a lock for security. A low profile solution for shallower rack equipment such as patch panels, wireless microphone receivers, mixers and smaller amplifiers.

Features

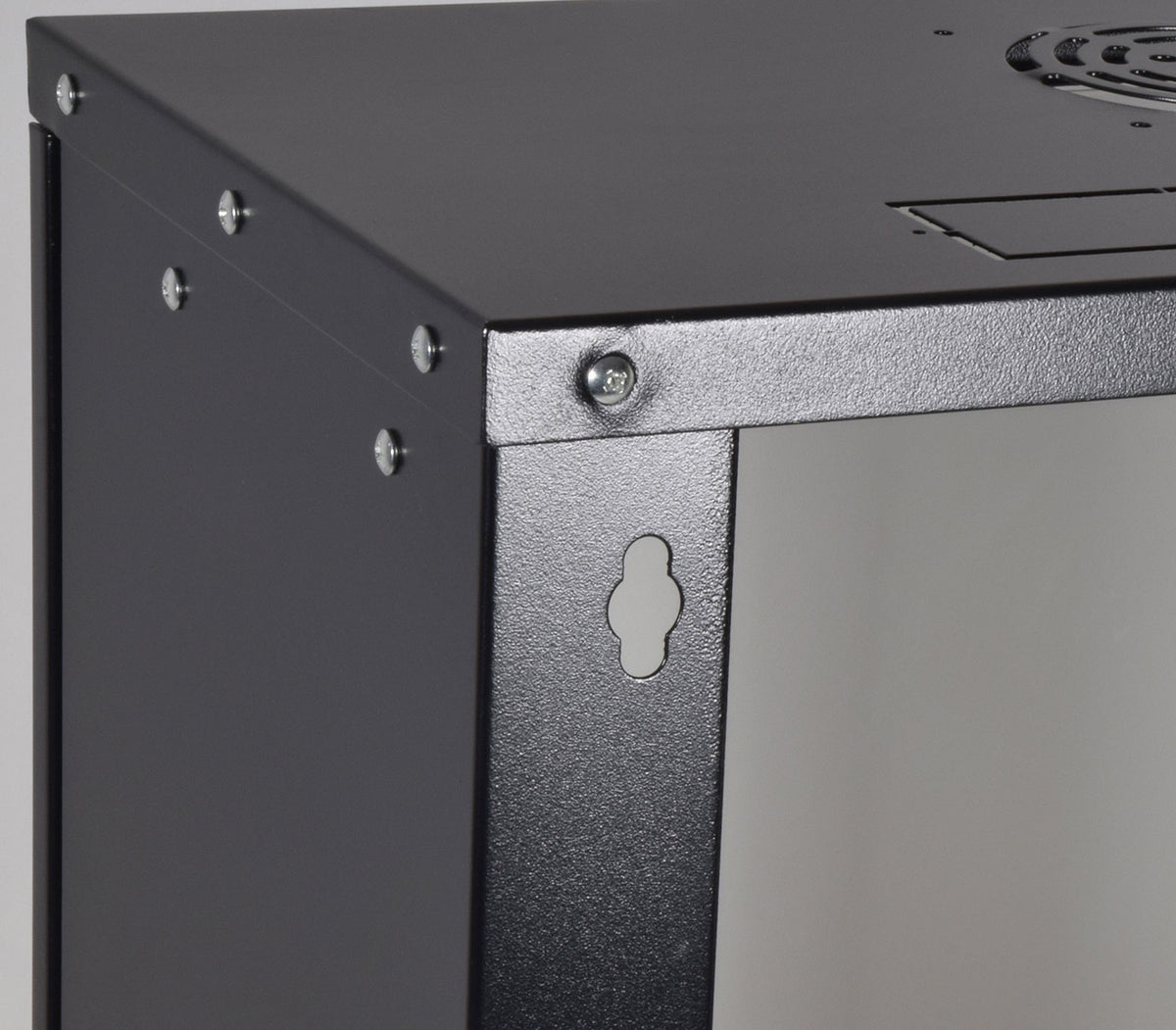

Wall-mounting keyhole punch-outs on the rear panels
Knock-out apertures top and bottom for cable entry

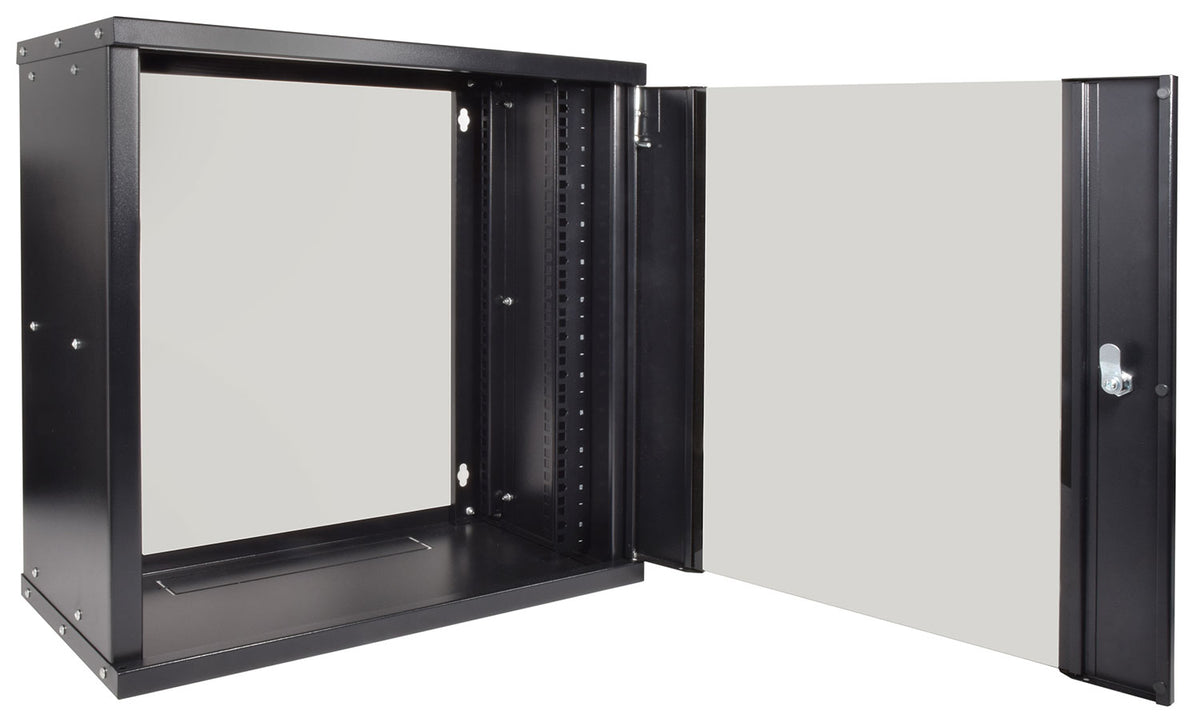

Front and rear rack rails for securing equipment or shelves
Rack-mounting hardware supplied

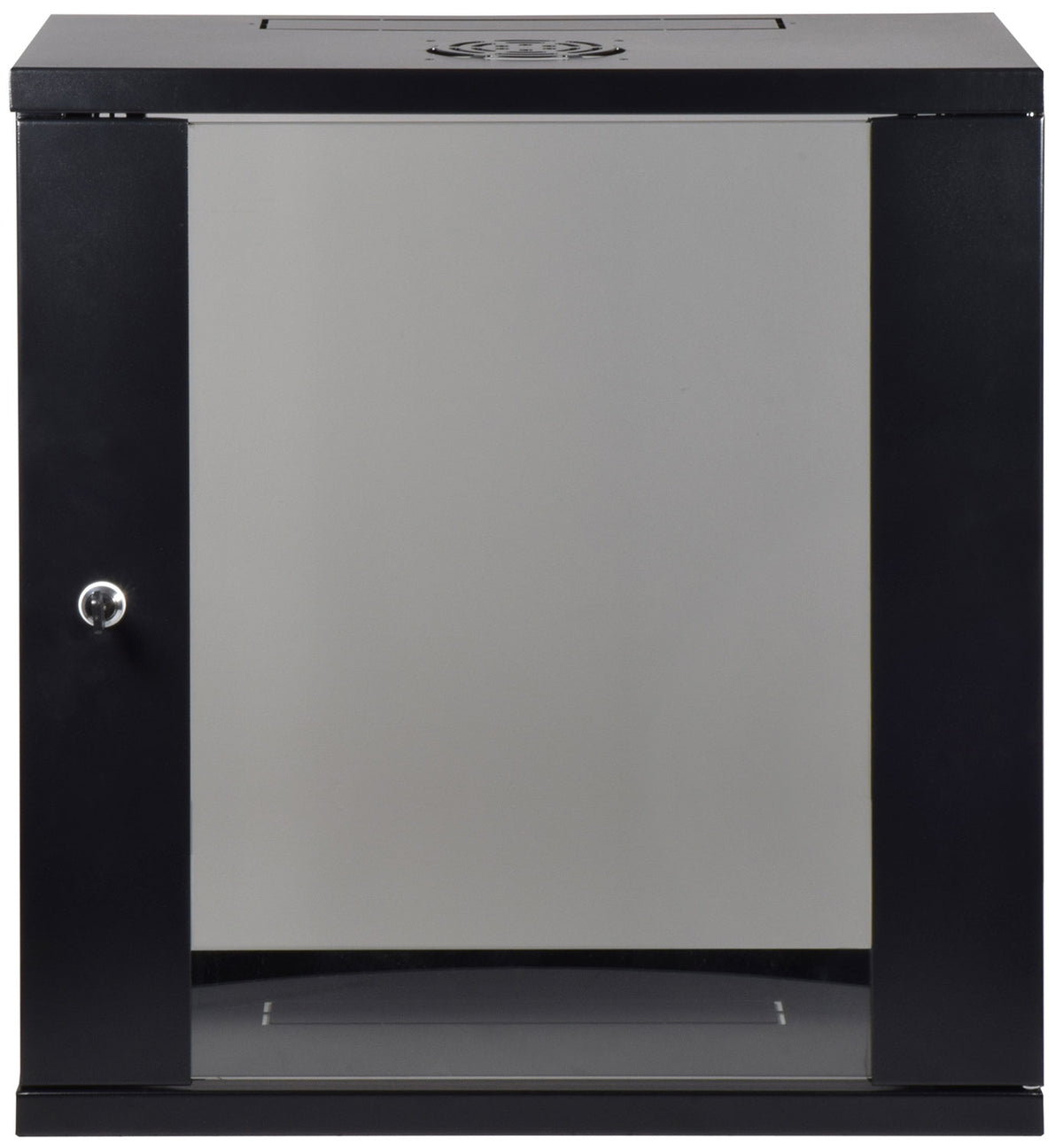

Lockable toughened glass front door

Specifications

Width — 550mm
Depth — 300mm
Construction — 1.2mm cold-rolled steel + tempered glass door
Max. load — 30kg (static)
Mounting depth — 200mm (255mm front rail to wall)
